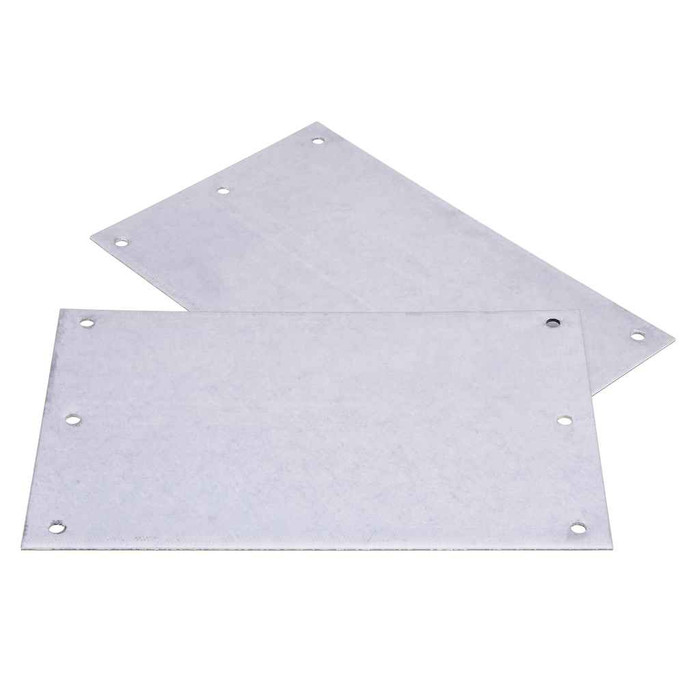

Plate Straps 1-1/2 X 12 18Ga Steel (Box 50)
Additional Notes
- Dimensions on all nail plates/straps are approximate | other sizes, gauges and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Country Of Origin:
- United States
- Division:
- Electrical H1
- Fastener Length:
- 12
- Fastener Width:
- 1/1/02
- Field Application:
- Electrical, Plumbing, Heating, Air Conditioning Industries
- Gauge:
- 18
- Language Code:
- EN
- Number Of Holes:
- 8
- Order Minimum Imperial:
- 50
- Order Minimum Uom Imperial:
- EA
- Pack Type:
- Box
- Product Group:
- Hardware
- Product Height:
- 2.5 in
- Product Length:
- 12 in
- Product Weight:
- 24.19 lbs
- Product Width:
- 4.5 in
- Sub Division:
- Electrical-E H2
- Department:
- Electrical
- Product Subgroup:
- Straps and Clips
- Product Type:
- Plate Strap
- Type2:
- Plate Strap
- Product Details:
- Plate Strap
- Product Material:
- Steel
Metallics NPL12 – Frequently Asked Questions
1) Do Metallics NPL12 nail plates meet Buy American requirements on a public project?
Yes. The NPL12 plate straps are made in the United States and are flagged both Buy American compliant and ARRA compliant, which is what a government, school or healthcare procurement file usually needs on a small commodity line like this.
2) Is 18 gauge steel heavy enough for a nail plate protecting cable in a studded wall?
18 gauge steel is the standard weight for protecting NM cable, conduit and tubing where it passes through a bored or notched stud, and that is what the NPL12 is made from. It is a plain steel plate strap, not a light aluminum shield, so a drywall screw or trim nail driven into the face of it will not pass through to the wire behind.
3) Can these plate straps be used on plumbing and HVAC runs, or are they electrical only?
They are used across electrical, plumbing, heating and air conditioning work. Same part, whether you are covering a notch over romex, PEX, copper or small tubing. That makes the NPL12 a reasonable single line item for a maintenance stockroom serving more than one trade.
4) How is the NPL12 plate strap fastened to the stud?
It is pre-punched with 8 holes, so it fastens with nails or screws through those holes rather than relying on integral prongs. Fasteners are not supplied with the box, so plan on your own nails or screws for the install.
5) How much does a box of 50 NPL12 plate straps weigh for shipping or carrying up a ladder?
A box of 50 runs about 24.19 lbs, with carton dimensions of roughly 12 by 4.5 by 2.5 inches. It is a one-hand box, but on a big rough-in order the weight adds up quickly across multiple cases.
6) Can I get these nail plates in a different length or gauge?
Other sizes, gauges and quantities in the Metallics nail plate and strap line are available by request. The NPL12 itself is the 1-1/2 by 12 inch, 18 gauge version in a 50 piece box, ordered in eaches with a 50 piece minimum.
