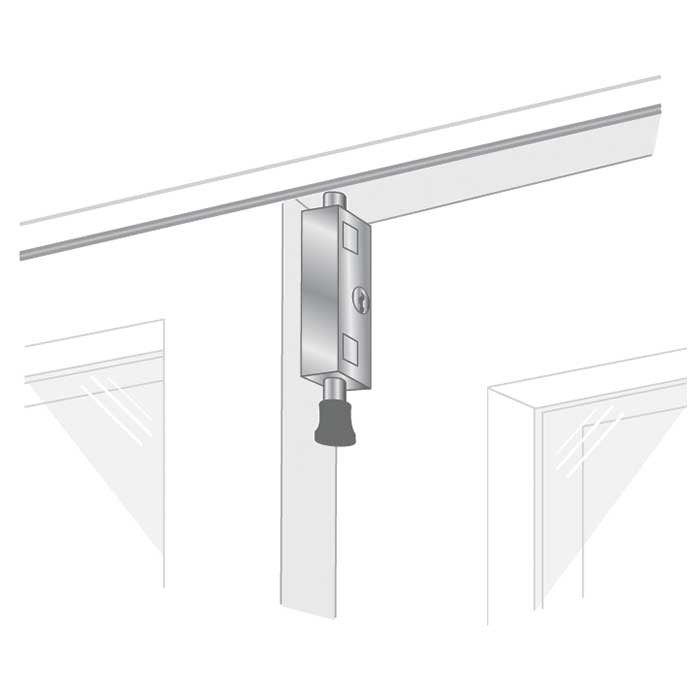

A keyed heavy-duty steel bolt patio door lock to prevent sliding or lifting of door. Adjustable for ventilation or full security with key lock to secure position. Large rectangular housing and pin are compatible with 1-3/8″ – 1-3/4″ in. thick doors and a 1/4″ in. drill hole in the fixed-panel rail.
- Size 6″ x 1-1/8″ in.
- 2 Keys Included
- For use on interior and exterior sliding doors
- Residential, commercial and industrial use
- Available in Aluminum, Duronodic (Dark-Brown), and White Finishes
Manufacturer Resources
Product Specs
- Product Group:
- Door Trim and Accessories
- Product Subgroup:
- Door Trim and Latch Protection
- Product Type:
- Lever
- Commercial/Residential:
- Commercial
- Subcategory:
- Door Trim and Latch Protection
- Product Category:
- Door Trim and Accessories
- Department:
- Door Hardware
Pro-Lok EPL-106-AL – Frequently Asked Questions
1) Will the Pro-Lok EPL-106 patio door lock fit a 1-3/4 inch thick sliding door?
Yes. The large rectangular Pro-Lok keyed patio door lock is built for doors 1-3/8 to 1-3/4 inches thick, so a standard 1-3/4 inch sliding panel is inside its range. The housing measures 6 x 1-1/8 inches, so you need that much flat run on the sliding panel rail to land it.
2) What do I have to drill to install a Pro-Lok keyed patio door lock?
One 1/4 inch hole in the fixed-panel rail. The pin on the keyed rectangular patio lock drops into that hole, so the drilling happens on the fixed panel, not the moving one. Pro-Lok publishes an installation guide for the EPL-106 if you want the layout before you cut.
3) Can I leave a sliding door cracked for air and still lock it?
That's what the adjustable position is for. The Pro-Lok keyed patio door lock sets either at full close for security or at a vent position, and the key locks it in whichever spot you choose, so the door can't be slid further open or lifted out of the track.
4) Does a patio door lock stop someone lifting the slider out of the track?
Yes. The Pro-Lok keyed unit uses a heavy-duty steel bolt that pins the sliding panel to the fixed panel, which blocks both sliding and vertical lift, the two ways a patio door gets defeated. That is a different job from a foot bolt or a charley bar, which only stop the slide.
5) What finishes does the Pro-Lok large rectangle patio door lock come in?
Three: Aluminum, Duronodic (a dark bronze-brown), and White. Aluminum matches mill-finish and clear-anodized frames, Duronodic matches the dark bronze anodized frames common on 1970s and 80s aluminum sliders, and White matches vinyl and painted-white frames. For a property manager standardizing across a building, pick the one that matches the existing frame stock and order all doors the same.
6) Is this patio door lock keyed, or does it just thumb-turn?
Keyed, and two keys ship with it. That matters on a rental or a commercial opening where you want the vent position locked and not resettable by whoever is in the unit. If you only need a tool-free interior stop, a keyless charley bar or a track blocker is the simpler buy.
7) Can I use a Pro-Lok patio door lock on a commercial building, or is it residential only?
Both. The keyed rectangular patio door lock is rated by Pro-Lok for residential, commercial and industrial use, and ZenSupply carries it as commercial-grade door hardware. It works on interior and exterior sliding doors alike, so an interior slider onto a balcony corridor is fair game.
8) Do these patio door locks come keyed alike so one key runs a whole building?
Each Pro-Lok keyed patio door lock ships with its own two keys. If you're outfitting a fleet of units and want one key across all of them, that's a keying request to place with the order rather than something the finish choice controls; the only orderable option on the lock itself is the finish, Aluminum, Duronodic or White.
