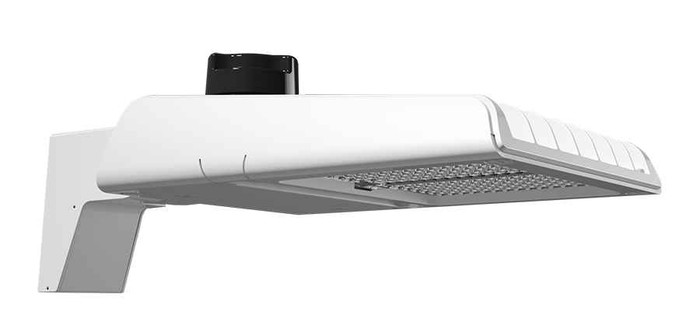

RAB A22 Field Adjustable LED Area Light 70W-320W 3000K-5000K with 7-Pin Receptacle Pole Mount System

RAB A22 Field Adjustable LED Area Light 70W-320W 3000K-5000K with 7-Pin Receptacle Pole Mount System

(No reviews yet) Write a Review

Model: A22-200B/480
$758.04
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$758.04
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

RAB A22 Field Adjustable LED Area Light 70W-320W 3000K-5000K with 7-Pin Receptacle Pole Mount System

Professional field-adjustable LED area lighting with versatile wattage and color temperature options

The RAB A22 Field Adjustable LED Area Light delivers professional outdoor illumination with exceptional versatility through its 70W-320W wattage range and 3000K-5000K color temperature adjustability. This pole-mounted system features a convenient 7-pin receptacle design for reliable connections and field customization, making it ideal for diverse commercial and industrial lighting applications requiring adaptable performance.

Professional Features & Benefits

  • Field Adjustable Wattage (70W-320W): Customize light output on-site to match specific application requirements and energy efficiency goals.
  • Variable Color Temperature (3000K-5000K): Select optimal color temperature from warm to cool white for enhanced visibility and ambiance control.
  • DLC Premium 5.1 Certification: Ensures maximum energy rebate eligibility and verified performance standards for utility incentive programs.
  • 100,000-Hour LED Lifespan: Provides exceptional longevity with minimal maintenance requirements, reducing total cost of ownership.
  • 7-Pin Receptacle Design: Enables secure, weatherproof connections with simplified installation and future serviceability.
  • Constant Driver Technology: Delivers stable, consistent light output with reliable performance across varying conditions.
  • Compact 5.51" Height Profile: Space-efficient design suitable for various mounting configurations and aesthetic requirements.

Technical Specifications

  • Dlc Type: DLC Premium
  • Dlc Version: 5.1
  • Driver Info: Constant
  • Lamp Hours: 100000
  • Lamp Info: LED
  • Product Height: 5.51

Professional Applications

  • Commercial Parking Lots and Garages
  • Industrial Facility Perimeters
  • Retail Center Exterior Lighting
  • Municipal Street and Pathway Illumination
  • Educational Campus Lighting
  • Healthcare Facility Outdoor Areas
  • Multi-Unit Residential Properties

Why Choose RAB Quality?

RAB delivers professional-grade LED area lighting solutions with DLC Premium certification and 100,000-hour rated performance. The constant driver technology and field-adjustable features provide reliable, customizable illumination backed by proven engineering and quality construction for demanding commercial applications.

Manufacturer Resources

Product Specs

Dlc Type:
DLC Premium
Dlc Version:
5.1
Driver Info:
Constant
Lamp Hours:
100000
Product Height:
5.51
Department:
Electrical
Product Group:
Area Lights
Light Technology:
LED

RAB A22-200B/480 – Frequently Asked Questions

1) What wattage steps can I set on the RAB A22 area light in the field?
Each A22 ships with a three-position wattage selector, and the steps you get depend on which model you order. The A22-70 runs 70/60/50W, the A22-100 runs 100/80/60W, the A22-150 runs 150/120/100W, the A22-200 runs 200/180/160W, and the A22-320 runs 320/280/250W. So you pick the family that brackets your target load, then trim on site. Across the whole range the A22 covers 70W through 320W.
2) Will the RAB A22 run on 480 volt site lighting circuits?
Yes, but it is a separate catalog number. Order the /480 suffix (A22-70/480, A22-100/480, A22-150/480, A22-200/480, A22-320/480) for 480V with 0-10V dimming. Everything without that suffix is the 120-277V universal driver, also 0-10V dimming. The two are not field convertible, so the service voltage has to be settled before the order goes in.
3) Should I use Type III or Type IV optics for a parking lot pole light?
Type III throws a wider forward pattern and suits poles set along the interior rows or edges of a lot where you want spill across the drive aisle. Type IV pushes the light forward in a tighter pattern, which is what you want on perimeter poles and building-mounted positions where you do not want light going behind the pole onto a property line. On the A22, Type III is available in all five wattage families and in bronze, black and white; Type IV is offered in bronze, in the 70, 100, 150, 200 and 320 wattage families on the 120-277V driver.
4) Does the RAB A22 accept a photocell or wireless control node?
It has a 7-pin receptacle on top, so it takes an ANSI twist-lock photocontrol or a 7-pin networked control node, and the two extra pins carry the 0-10V dimming leads through to that node. The driver itself is 0-10V dimming on both the 120-277V and the 480V versions. If you are not using controls, the receptacle needs a shorting cap.
5) Can I match the color temperature of the RAB A22 to the existing lights on my property?
The A22 is CCT selectable from 3000K to 5000K, set at the fixture, so one part number covers a warm 3000K to match residential-adjacent areas or a 5000K to match most existing commercial parking lot LEDs. For a property manager standardizing across a campus, that means you can stock a single wattage family and dial each pole to match what is already up.
6) I need a 250W replacement for an old metal halide pole light. Which A22 do I order?
Order the 320 family, which is field settable to 320, 280 or 250W. That gives you the 250W setting directly plus headroom if the site needs more after a night walk. If you want the A22 set and left at one value, the selector is done at install, so an electrician can commission the whole lot to a single step in one pass.
7) What finishes does the RAB A22 come in, and are they available across all wattages?
Bronze, black and white. On the Type III optic, all three finishes are offered in every wattage family (70, 100, 150, 200, 320) and on both the 120-277V and 480V drivers. The Type IV optic is bronze only. Bronze is the usual choice for pole-mounted lots, white shows up more on canopies and light-colored architecture.
8) How tall is the RAB A22 fixture housing?
The A22 housing is 5.51 inches high. That low profile matters on two counts: less wind load on the pole, and a flatter silhouette from the ground on properties where the architect cares what the fixture looks like from the street.
9) How long will the LEDs last before I have to get a lift back on site?
The A22 is rated at 100,000 hours on the LED. Run on a dusk-to-dawn photocontrol at roughly 4,000 hours a year, that is decades of service, which is the point of the design for an MRO or facilities budget: you are buying out the relamping line item rather than scheduling it. The driver is a constant-current type, so output stays level rather than drifting as it ages.
