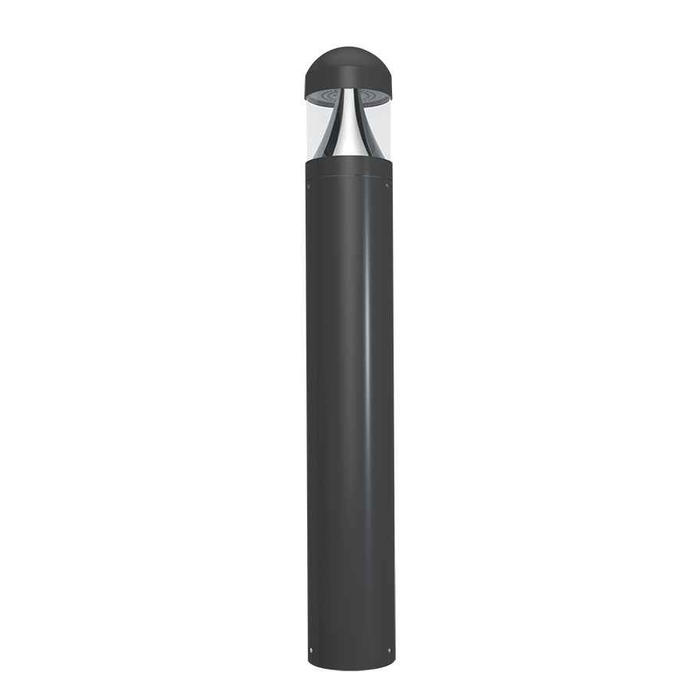

RAB B17 LED Bollard Light 14W-24W Selectable CCT 3000K-5000K Professional Pathway Lighting

Professional LED pathway and area lighting with selectable color temperature

The RAB B17 LED Bollard Light delivers professional-grade pathway and area illumination with selectable wattage options from 14W to 24W and adjustable color temperature from 3000K to 5000K. This versatile bollard features DLC Premium certification, constant current LED driver technology, and delivers up to 3,409 lumens with exceptional efficacy ratings of 143.9-156.1 lumens per watt for reliable outdoor lighting performance.

Professional Features & Benefits

  • Selectable Wattage (14W/19W/24W): Provides flexible light output options to match specific application requirements and energy efficiency goals
  • Selectable CCT (3000K-5000K): Allows customization of color temperature from warm white to daylight for optimal visual comfort and ambiance
  • DLC Premium 5.1 Certification: Ensures highest energy efficiency standards and utility rebate eligibility for professional installations
  • High Efficacy (143.9-156.1 lm/W): Delivers exceptional energy efficiency reducing operational costs while maximizing light output
  • 50,000 Hour LED Life: Provides long-term reliability with minimal maintenance requirements for continuous outdoor operation
  • Constant Current Driver: Ensures stable LED performance and consistent light output throughout the fixture's operational life
  • Multi-Voltage Compatibility: Operates on 120V, 208V, 240V, 277V, and 347V systems for versatile installation flexibility

Technical Specifications

  • Amps 120: 0.20A/0.16A/0.12A
  • Amps 208: 0.12A/0.10A/0.07A
  • Amps 240: 0.10A/0.08A/0.06A
  • Amps 277: 0.09A/0.07A/0.05A
  • Amps 347: 72-75
  • Dlc Type: DLC Premium
  • Dlc Version: 5.1
  • Driver Info: Constant Current
  • Efficacy: 143.9-156.1
  • Input Watts: 24/19/14
  • Lamp Hours: 50000
  • Lamp Info: LED
  • Lamp Lumens: 1,959-3,409
  • Product Height: 8.27
  • Product Watts: 24/19/14
  • Product Width: 8.27

Professional Applications

  • Commercial pathway and walkway lighting
  • Retail and hospitality exterior lighting
  • Municipal and public space illumination
  • Corporate campus and office complex lighting
  • Multi-unit residential property lighting
  • Educational facility outdoor lighting
  • Healthcare facility exterior lighting

Why Choose RAB Quality?

RAB LED bollard lighting combines DLC Premium certification with 50,000-hour LED life rating and constant current driver technology for dependable long-term performance. The selectable wattage and color temperature options provide installation flexibility while maintaining professional-grade reliability for demanding outdoor lighting applications.

Manufacturer Resources

Product Specs

Amps 120:
0.20A/0.16A/0.12A
Amps 208:
0.12A/0.10A/0.07A
Amps 240:
0.10A/0.08A/0.06A
Amps 277:
0.09A/0.07A/0.05A
Amps 347:
72-75
Dlc Type:
DLC Premium
Dlc Version:
5.1
Driver Info:
Constant Current
Efficacy:
143.9-156.1
Input Watts:
24/19/14
Lamp Hours:
50000
Product Height:
8.27
Product Width:
8.27
Department:
Electrical
Product Group:
Bollar Light
Light Technology:
LED
Lumens:
1,959-3,409
Product Wattage:
24/19/14

RAB B17B – Frequently Asked Questions

1) How do I set the wattage and color temperature on the RAB B17 bollard?
The B17 is a field-selectable fixture, so you pick both at install rather than ordering a different part number. Wattage steps are 24W, 19W and 14W, and color temperature runs 3000K to 5000K. Output tracks the wattage you pick, from 1,959 up to 3,409 lumens. For a property manager standardizing a walkway, that means one SKU on the truck covers a bright entry drive and a low-level courtyard path.
2) What voltages will the RAB B17 LED bollard run on?
It is a multi-volt fixture covering 120V, 208V, 240V, 277V and 347V, so the same bollard works on a residential-style 120V path circuit or a 277V commercial lighting panel. Draw at 120V is 0.20A/0.16A/0.12A depending on the wattage setting, dropping to 0.09A/0.07A/0.05A at 277V. Use those figures when you size the circuit and count how many bollards you can run on one branch.
3) Does the RAB B17 bollard qualify for a utility rebate?
It carries DLC Premium listing under DLC version 5.1, which is the tier most utility programs require for their higher rebate amounts. Efficacy is 143.9 to 156.1 lumens per watt. Pull the DLC product ID for the specific B17 catalog number you order when you file the rebate paperwork, since most programs want that on the form.

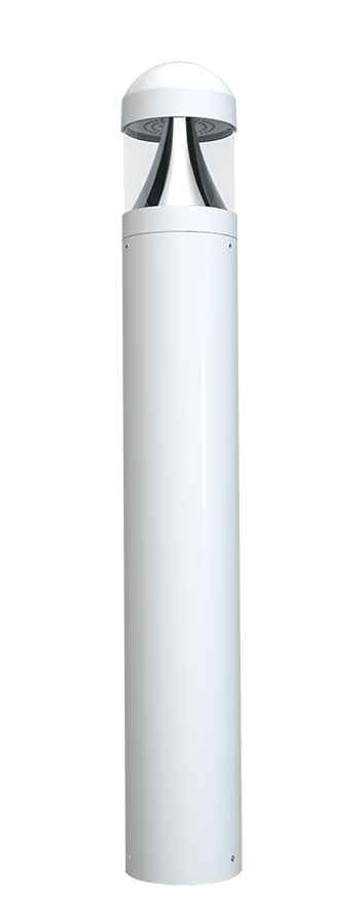

4) What is the difference between the flat top and dome top RAB B17 bollards?
Head style is a build option, not a field change, so you choose it when you order. The flat top is offered on both round and square bollard bodies; the dome head is round only. If your site already runs square bollards and you want them to match, the flat top is the one that goes with a square body.
5) What finishes does the RAB B17 bollard come in, and which head goes with each?
Three finishes: bronze, black and white. All three are available with either head style. Bronze flat top is B17, black flat top B17B, white flat top B17W; the dome versions are B17D bronze, B17DB black and B17DW white. Bronze is the usual match for existing site poles and bollards on most commercial campuses.
6) How wide is the RAB B17 bollard head, and will it cover my existing base?
The head measures 8.27 by 8.27 inches. Check that against the bolt circle and base cover on whatever you are removing before you commit to a straight swap, because anything wider than 8.27 inches will leave the old anchor plate exposed.
7) Is a bollard the right fixture for a commercial walkway, or should I use pole lights?
Bollards like the B17 put light down at ankle-to-knee height right along the path, which keeps glare out of pedestrians' eyes and defines the walkway edge. That suits campus paths, courtyards, retail and hospitality entries, and multi-family site walks. Pole-mounted area lights are the better call when you need to cover a parking field or a wide plaza from a few mounting points, since a bollard at 1,959 to 3,409 lumens lights a short radius, not an acre. Many sites use both, with bollards on the walks feeding into pole lighting over the lot.
8) Can I use the RAB B17 to match the color temperature of lighting already installed on our property?
Yes, within the 3000K to 5000K range. Set it to 3000K for a warm look that blends with hospitality and residential exteriors, 4000K for neutral white on most commercial walks, or 5000K where security cameras and high visibility drive the spec. Because the selection is made at the fixture, you can dial in a replacement to match neighboring bollards instead of ordering a specific CCT part number.
9) How long will the LEDs in the RAB B17 bollard last before we have to touch them?
Rated LED life is 50,000 hours. On a dusk-to-dawn pathway running roughly 4,000 hours a year, that is on the order of a decade of service. The fixture uses a constant current driver, which holds output steady over that life rather than letting it drift as the LEDs age. There is no lamp to replace, so maintenance planning is fixture-level, not relamping.
