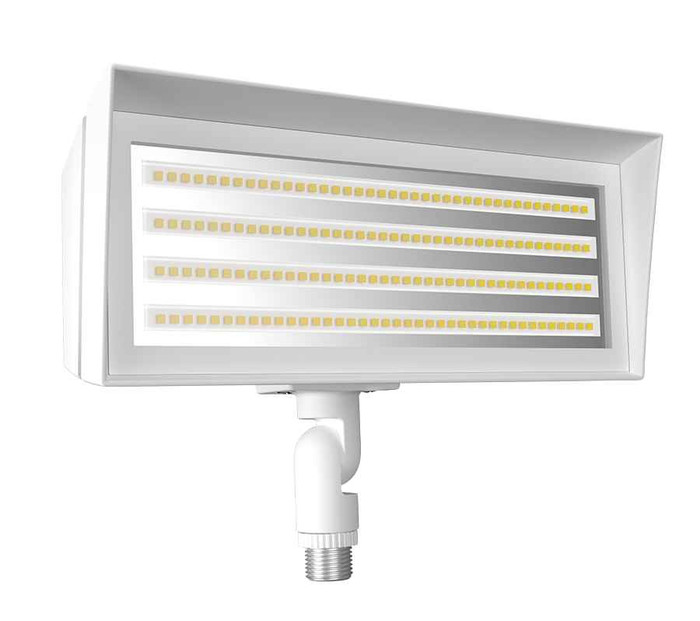

RAB FFLED Small LED Floodlight 26W 5000K 120-277V with Knuckle Mount and Optional Photocell

Professional LED Lighting Solution for Versatile Applications

The RAB FFLED Small LED Floodlight delivers reliable 26W LED performance with 5000K daylight color temperature and universal 120-277V operation. This professional-grade fixture features durable knuckle mount construction with bronze/white finish options and optional photocell capability for automated lighting control. The constant current driver ensures consistent performance over the rated 100,000-hour lamp life.

Professional Features & Benefits

  • 26W LED Performance: Delivers efficient illumination with 100,000-hour rated lamp life for reduced maintenance costs and long-term reliability.
  • Universal 120-277V Operation: Compatible with standard residential and commercial voltage systems with optimized amperage draw from 0.11A to 0.25A across voltage ranges.
  • 5000K Daylight Color Temperature: Provides crisp, natural white light ideal for security, area lighting, and commercial applications requiring clear visibility.
  • DLC Premium 5.1 Certification: Meets stringent energy efficiency standards for utility rebate eligibility and professional installation requirements.
  • Knuckle Mount Design: Enables precise directional adjustment and secure mounting for optimal light placement and coverage.
  • Constant Current Driver: Ensures stable LED performance and consistent light output throughout the fixture’s operational life.
  • Optional Photocell Integration: Supports automated dusk-to-dawn operation for energy savings and convenient hands-free lighting control.

Technical Specifications

  • Amps 120: 0.25A
  • Amps 208: 0.14A
  • Amps 240: 0.13A
  • Amps 277: 0.11A
  • Dlc Type: DLC Premium
  • Dlc Version: 5.1
  • Driver Info: Constant Current
  • Lamp Hours: 100000
  • Lamp Info: LED
  • Product Height: 8.5
  • Product Length: 13.8
  • Product Watts: 26
  • Product Width: 12

Professional Applications

  • Commercial Building Perimeter Lighting
  • Parking Lot and Walkway Illumination
  • Security and Area Lighting
  • Retail and Office Exterior Lighting
  • Industrial Facility Lighting
  • Multi-Unit Residential Properties
  • Emergency and Safety Lighting

Why Choose RAB Quality?

RAB delivers professional-grade LED lighting solutions with DLC Premium certification and 100,000-hour rated performance. The constant current driver technology and universal voltage compatibility ensure reliable operation across diverse commercial and residential applications, backed by proven durability and energy efficiency standards.

Manufacturer Resources

Product Specs

Amps 120:
0.25A
Amps 208:
0.14A
Amps 240:
0.13A
Amps 277:
0.11A
Dlc Type:
DLC Premium
Dlc Version:
5.1
Driver Info:
Constant Current
Lamp Hours:
100000
Product Height:
8.5
Product Length:
13.8
Product Width:
12
Department:
Electrical
Product Group:
Flood/Security Lights
Light Technology:
LED
Product Wattage:
26

RAB FFLEDSYW – Frequently Asked Questions

1) Does the RAB FFLED small floodlight run on 277V, or do I need a separate fixture for each voltage?
One fixture covers the whole range. The FFLED Small runs 120-277V, so the same part works on 120V residential circuits and 208, 240, or 277V commercial feeds. Draw is 0.25A at 120V, 0.14A at 208V, 0.13A at 240V, and 0.11A at 277V, which is what you size the branch circuit and count fixtures per circuit from. No separate voltage-specific SKU to order.
2) Can I change the color temperature on the RAB FFLED floodlight after it's installed?
Depends which one you order. Most of the FFLED Small models are 4000K/5000K CCT adjustable, so you can set neutral or daylight in the field, useful when you're matching a color temperature already running on the rest of the property. The Y models (FFLEDSY, FFLEDSYW and their photocell versions) are fixed 3000K warm and cannot be switched. If you want the option later, order the adjustable version.
3) Do I need to add a separate photocell to get dusk-to-dawn on this RAB floodlight?
Not if you order the /PCU version. The button photocell is built in on FFLEDS/PCU, FFLEDSW/PCU, FFLEDSY/PCU and FFLEDSYW/PCU, and it's rated for the full 120-277V range so it works on any of the supported voltages. The plain FFLEDS, FFLEDSW, FFLEDSY and FFLEDSYW have no photocell and will need external control, a timeclock, or a switched circuit. The photocell is a factory option, not a field add.
4) Is the RAB FFLED small floodlight eligible for a utility rebate?
It's listed DLC Premium under DLC version 5.1, which is the tier most utility programs require for their higher rebate levels. Bring the model number to your utility's qualified products lookup to confirm the specific program amount, but the certification itself is in place.
5) What are the dimensions of the RAB FFLED small floodlight? I need to know if it fits my mounting spot.
The fixture measures 13.8 x 12 x 8.5 inches. That's the footprint to check against a wall box, pole bracket, or parapet location before you commit. It mounts on a knuckle, so once it's up you swivel and lock the aim rather than relying on the mount position to get the beam where you want it.
6) Which color temperature should I pick for a parking lot versus a hotel entrance?
For parking, walkways, and perimeter security, go with the 4000K/5000K adjustable version and set it at 5000K; the cooler daylight tone reads faces and plates better and is what most security specs call for. For a hotel entrance, courtyard, or residential facade where you want the light to look warm and match the building's other exterior fittings, the 3000K version (FFLEDSY bronze or FFLEDSYW white) is the one. Both are the same 26W fixture otherwise.
7) How many of these RAB floodlights can I put on one 20A circuit?
At 26W the FFLED Small draws 0.25A on 120V and 0.11A on 277V. Sizing to the usual 80 percent continuous load limit, a 20A circuit gives you 16A usable, so the fixture current is small enough that in practice your limit is wire run and voltage drop rather than the breaker. Do the arithmetic at your actual system voltage using the amp figure for it, and add any load sharing the circuit.
8) Is a 26W LED floodlight enough to replace an old metal halide or quartz flood?
The FFLED Small is a compact 26W LED flood aimed at building perimeters, walkways, entries, and small area lighting, not at replacing a high-wattage pole-mounted area light. If you're swapping a small wall-mounted quartz or low-wattage flood on a doorway, loading dock, or side yard, this is the size. For a parking field or a tall pole, step up to a larger flood or an area light. Match your existing fixture's delivered light, not its wattage.
9) What finish options does the RAB FFLED small floodlight come in, and does the finish limit anything else?
Bronze and white, and neither one restricts your other choices. Both finishes are offered in the 4000K/5000K adjustable build and in the fixed 3000K warm build, with or without the button photocell, so all eight combinations exist. Bronze is the usual pick on masonry and darker facades; white suits stucco and light-colored soffits where you don't want the fixture to read as a dark blob.
10) How long before I have to get a lift out to relamp these RAB floodlights?
There's no relamping. The FFLED Small is a sealed LED fixture with a constant current driver, rated at 100,000 hours. Run dusk to dawn on a photocell, roughly 4,000 hours a year, that rated life is well beyond a typical maintenance cycle, which is the case for specifying them on hard-to-reach parapets and high wall locations.
