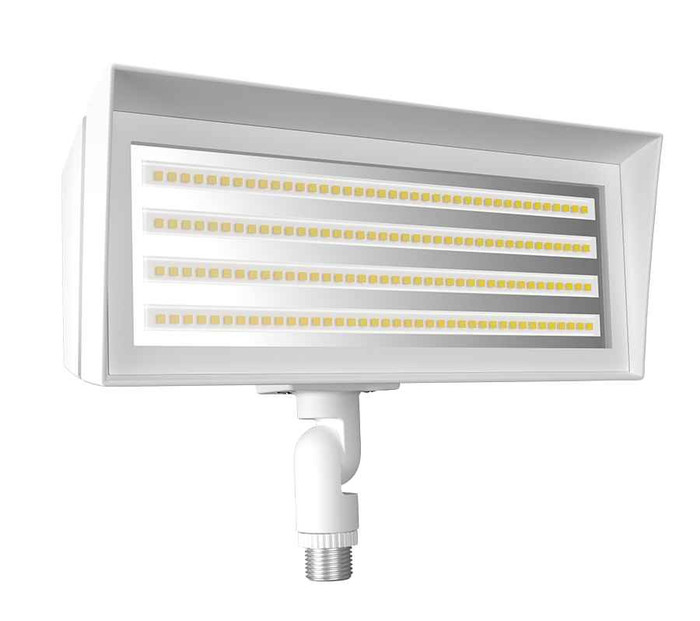

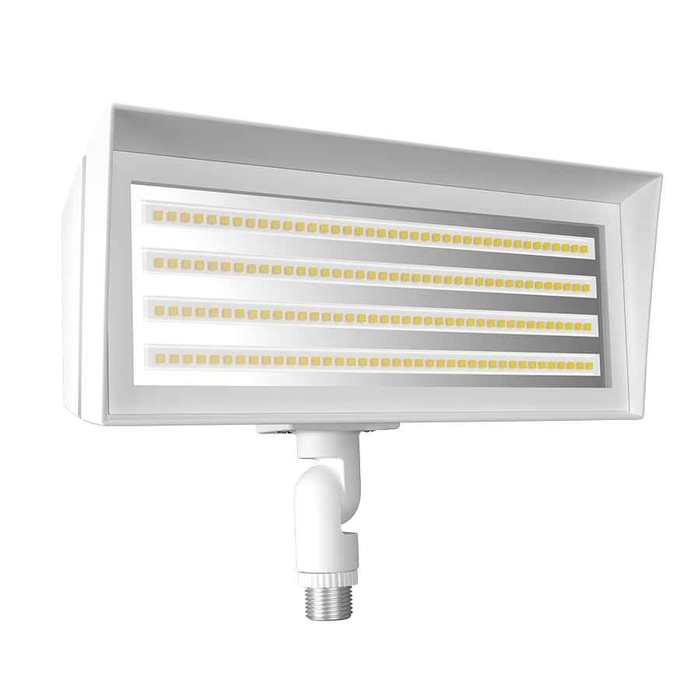

RAB FFLED Extra-Small LED Flood Light 13W Field-Adjustable 5000K Knuckle Mount with Optional Photocell

RAB FFLED Extra-Small LED Flood Light 13W Field-Adjustable 5000K Knuckle Mount with Optional Photocell

(No reviews yet) Write a Review

Model: FFLEDXSW/PCU
$482.70
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$482.70
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

RAB FFLED Extra-Small LED Flood Light 13W Field-Adjustable 5000K Knuckle Mount with Optional Photocell

Professional LED flood lighting with field-adjustable color temperature and versatile mounting

The RAB FFLED Extra-Small LED Flood Light delivers professional-grade illumination with 13W power consumption and field-adjustable color temperature options including 5000K. This compact flood light features knuckle mount design for versatile positioning and operates on 120–277V with optional photocell capability for automatic operation. The constant current LED driver ensures reliable performance with 100,000-hour lamp life and DLC Premium 5.1 certification for energy efficiency compliance.

Professional Features & Benefits

  • 13W LED Technology: Energy-efficient illumination with constant current driver for consistent light output and extended operational life
  • Field-Adjustable Color Temperature: Customizable lighting including 5000K daylight option for optimal visibility and application-specific requirements
  • Universal Voltage Operation: 120–277V compatibility with optimized amperage draw from 0.05A to 0.10A across voltage ranges
  • 100,000-Hour Lamp Life: Extended service life reduces maintenance requirements and total cost of ownership
  • DLC Premium 5.1 Certification: Meets stringent energy efficiency standards for utility rebate eligibility and professional installations
  • Knuckle Mount Design: Versatile mounting system allows precise positioning and adjustment for optimal light distribution
  • Optional Photocell Integration: Automatic operation capability for dusk-to-dawn lighting control and energy management

Technical Specifications

  • Amps 120: 0.10A
  • Amps 208: 0.07A
  • Amps 240: 0.06A
  • Amps 277: 0.05A
  • Dlc Type: DLC Premium
  • Dlc Version: 5.1
  • Driver Info: Constant Current
  • Lamp Hours: 100000
  • Lamp Info: LED
  • Product Height: 8.5
  • Product Length: 13.8
  • Product Watts: 13
  • Product Width: 12

Professional Applications

  • Commercial Building Perimeter Lighting
  • Retail Store Exterior Illumination
  • Professional Office Building Security Lighting
  • Multi-Unit Residential Property Lighting
  • Industrial Facility Area Lighting
  • Emergency Services Building Illumination
  • Municipal and Government Facility Lighting

Why Choose RAB Quality?

RAB flood lighting delivers professional reliability with DLC Premium certification and 100,000-hour LED lamp life. The constant current driver technology and field-adjustable features provide versatile performance for demanding commercial and industrial applications requiring consistent, energy-efficient illumination.

Manufacturer Resources

Product Specs

Amps 120:
0.10A
Amps 208:
0.07A
Amps 240:
0.06A
Amps 277:
0.05A
Dlc Type:
DLC Premium
Dlc Version:
5.1
Driver Info:
Constant Current
Lamp Hours:
100000
Product Height:
8.5
Product Length:
13.8
Product Width:
12
Department:
Electrical
Product Group:
Floodlights
Light Technology:
LED
Product Wattage:
13

RAB FFLEDXSW/PCU – Frequently Asked Questions

1) Does the RAB FFLED extra-small flood light run on 120V or 277V?
Both. The FFLEDXS runs anywhere from 120 to 277 volts on the same fixture, so one part number covers a residential 120V branch circuit or a commercial 277V lighting panel. Draw is 0.10A at 120V, 0.07A at 208V, 0.06A at 240V and 0.05A at 277V, which is what you use when you total up a circuit. The photocell versions carry the same 120-277V range.
2) Can I set the color temperature on the RAB FFLEDXS flood light in the field, or do I order the CCT I want?
It depends which one you order. The FFLEDXS and FFLEDXSW are field-adjustable between 4000K and 5000K, so you pick the look on site and can match neighboring fixtures without swapping the light. The Y versions (FFLEDXSY, FFLEDXSYW) are fixed 3000K warm white only, no adjustment. If a property has mixed lighting and you want one SKU on the truck, go with the adjustable version.
3) Do I need a separate photocell for dusk-to-dawn operation on this RAB flood light?
Not if you order the /PCU version. FFLEDXS/PCU, FFLEDXSW/PCU, FFLEDXSY/PCU and FFLEDXSYW/PCU come with a 120-277V button photocell built in, so the fixture switches itself on at dusk with no external control and no additional wiring beyond the line feed. The plain FFLEDXS, FFLEDXSW, FFLEDXSY and FFLEDXSYW have no photocell and need to be switched, timed, or run off a panel control. The photocell is factory-ordered, so decide before you buy.
4) Is the 13W RAB FFLEDXS eligible for utility rebates?
It carries DLC Premium listing under DLC version 5.1, which is the tier most utility programs require for their higher rebate levels. Have the fixture's DLC listing on hand when you file the rebate paperwork; the program administrator will want the product listed on the DLC QPL at the time of purchase.
5) How is the RAB FFLEDXS flood light mounted and can I aim it after install?
It uses a knuckle mount, so the head swivels and locks at the aiming angle you set after the fixture is fastened down. That is what you want for perimeter wall packs, parking area throw, or sign and facade wash where the aim gets dialed in at night. Fixture dimensions are 13.8 by 12 by 8.5 inches, worth checking against your junction box location and any tight soffit or parapet clearance.
6) Is a 13W LED flood light enough for commercial perimeter security lighting?
The FFLEDXS is the extra-small member of the RAB FFLED flood family, drawing 13 watts. That size suits close-range work: building perimeter accents, entry and doorway coverage, signage, dumpster and walkway areas on multi-unit residential and small retail sites. For wide parking lots or large yard areas you want a higher-wattage flood in the family rather than stacking extra-smalls.
7) What color choices does the RAB FFLEDXS flood light housing come in?
Bronze and white. Bronze is the standard order (FFLEDXS, FFLEDXSY); the white housings add a W to the number (FFLEDXSW, FFLEDXSYW). Both finishes are offered with or without the button photocell and in either the 4000/5000K adjustable or the fixed 3000K warm version, so a property manager standardizing across a site can hold the same fixture in either color.
8) How long does the RAB FFLEDXS last before it needs relamping?
There is no relamping. The LED source is rated at 100,000 hours and the fixture runs on a constant current driver, which holds output steady rather than letting it drift with line voltage. On a dusk-to-dawn schedule of roughly 4,000 hours a year, that rating works out past 20 years of service, which is why MRO and institutional buyers spec these to get ladder trips off the maintenance calendar.
