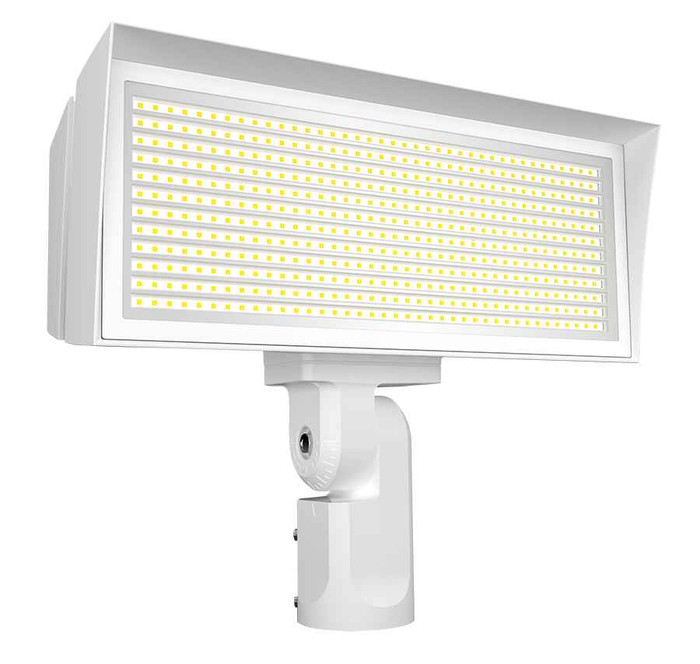

RAB FFLED Large LED Floodlight 180W 5000K Field-Adjustable Wattage with Slipfitter/Trunnion Mount

RAB FFLED Large LED Floodlight 180W 5000K Field-Adjustable Wattage with Slipfitter/Trunnion Mount

(No reviews yet) Write a Review

Model: FFLEDLYT
$1,978.05
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,978.05
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

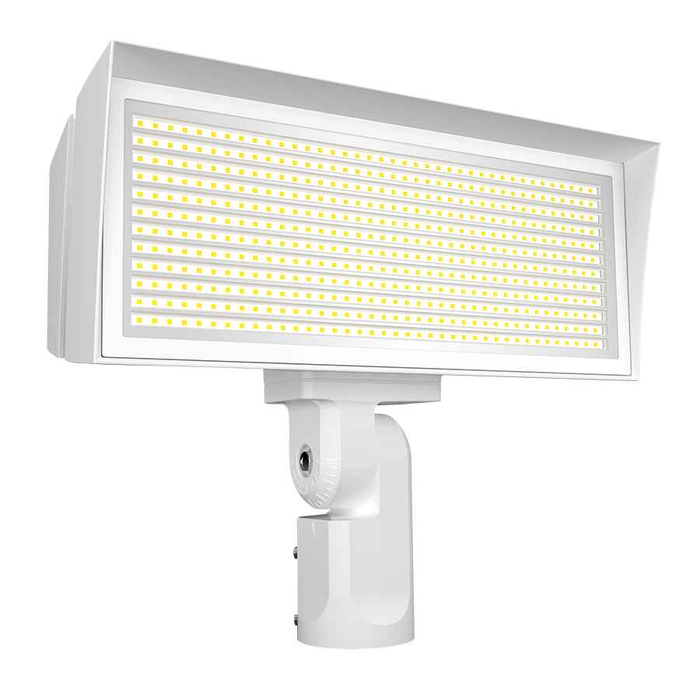

RAB FFLED Large LED Floodlight 180W 5000K Field-Adjustable Wattage with Slipfitter/Trunnion Mount

Professional LED Floodlighting with Field-Adjustable Performance

The RAB FFLED Large LED Floodlight delivers professional-grade illumination with 180W power and 5000K color temperature for versatile outdoor and commercial applications. This field-adjustable LED floodlight features constant current driver technology and dual mounting options with slipfitter or trunnion mount configurations. Available in bronze or white finishes with multi-voltage compatibility from 120-277V or 480V operation, this fixture provides reliable performance for demanding lighting installations.

Professional Features & Benefits

  • 180W LED Power: Delivers high-output illumination with energy-efficient LED technology for superior performance and reduced operating costs.
  • Field-Adjustable Wattage: Allows on-site power adjustment to optimize light levels and energy consumption for specific application requirements.
  • 5000K Color Temperature: Provides crisp, daylight-quality illumination ideal for security, area lighting, and commercial applications.
  • Multi-Voltage Operation: Compatible with 120-277V or 480V systems with current ratings from 0.65A to 1.50A for flexible installation options.
  • DLC Premium 5.1 Qualified: Meets stringent energy efficiency standards for utility rebate eligibility and professional specification compliance.
  • 100,000 Hour LED Life: Ensures long-term reliability and minimal maintenance requirements for continuous operation.
  • Dual Mount Options: Slipfitter or trunnion mount configurations provide versatile installation flexibility for poles or structural mounting.

Technical Specifications

  • Amps 120: 1.50A
  • Amps 208: 0.87A
  • Amps 240: 0.75A
  • Amps 277: 0.65A
  • Dlc Type: DLC Premium
  • Dlc Version: 5.1
  • Driver Info: Constant Current
  • Lamp Hours: 100000
  • Lamp Info: LED
  • Product Height: 13.1
  • Product Length: 20.9
  • Product Watts: 180
  • Product Width: 14.1

Professional Applications

  • Commercial Building Perimeter Lighting
  • Parking Lot and Area Illumination
  • Security and Surveillance Lighting
  • Industrial Facility Exterior Lighting
  • Retail and Shopping Center Applications
  • Municipal and Public Space Lighting
  • Sports and Recreation Facility Lighting

Why Choose RAB Quality?

RAB FFLED floodlights combine proven LED technology with professional-grade construction and DLC Premium qualification for reliable performance in demanding applications. The 100,000-hour LED life rating and constant current driver ensure consistent illumination and long-term value for commercial and industrial lighting installations.

Manufacturer Resources

Product Specs

Amps 120:
1.50A
Amps 208:
0.87A
Amps 240:
0.75A
Amps 277:
0.65A
Dlc Type:
DLC Premium
Dlc Version:
5.1
Driver Info:
Constant Current
Lamp Hours:
100000
Product Height:
13.1
Product Length:
20.9
Product Width:
14.1
Department:
Electrical
Product Group:
Flood/Security Lights
Light Technology:
LED
Product Wattage:
180

RAB FFLEDLYT – Frequently Asked Questions

1) Can the RAB FFLED Large floodlight run on 480V, or do I need a separate model?
Voltage is fixed at the time of order, not switchable in the field. The RAB FFLED Large comes as either a 120-277V version or a dedicated 480V version, and the 480V units carry a /480 suffix on the part number (FFLEDLSF/480, FFLEDLT/480, FFLEDLSFW/480, FFLEDLTW/480, plus the 3000K equivalents). Every configuration includes 0-10V dimming. At 120V the fixture draws 1.50A, 0.87A at 208V, 0.75A at 240V and 0.65A at 277V, which is what you size the branch circuit from.
2) Should I order the slipfitter or the trunnion version of the RAB FFLED Large floodlight?
Pick by what you are mounting to. The slipfitter versions (FFLEDLSF, FFLEDLSFW and their 480V counterparts) drop onto a pole tenon or a mast arm, so they are the choice for parking lot and site poles. The trunnion versions (FFLEDLT, FFLEDLTW and their 480V counterparts) bolt to a wall, a canopy deck, or structural steel and let you aim the head. Mount style is built into the part number, so it is not something you change after the fact.
3) Will this RAB floodlight qualify for a utility rebate?
The FFLED Large is DLC Premium qualified under DLC version 5.1, which is the tier most utility programs require for their higher rebate levels. Rebate amounts and program rules are set by the utility, but the qualification your program will ask to see is on the fixture.
4) What color temperatures does the RAB FFLED Large floodlight come in?
Two paths. The standard build is CCT adjustable between 4000K and 5000K, so you can set neutral or daylight white on site to match adjacent buildings or camera requirements. There is also a fixed 3000K warm version, identified by a Y in the part number (FFLEDLYSF, FFLEDLYT and so on), which is what you order where a municipality or HOA restricts blue-rich light. The warm version is a separate part, not a field setting.
5) How big is the RAB FFLED Large floodlight head?
The housing measures 20.9 by 14.1 by 13.1 inches. That is a large-format head, so check pole tenon spacing and wall clearance before you commit, particularly if you are grouping two or more on one pole top or mounting under a low canopy.
6) What does field-adjustable wattage actually do on this RAB floodlight, and can I dim it too?
Full output is 180W, and the wattage is field adjustable, so one part number covers several light levels. That lets a contractor buy a single SKU for a site and dial individual fixtures down where the photometrics call for less, instead of stocking three wattages. Separately, every configuration ships with 0-10V dimming, so the same fixture can also be tied into a control system or a late-night setback schedule.
7) Is this RAB floodlight a good replacement for an old metal halide flood on a parking lot pole?
It is built for that swap. The FFLED Large is an LED fixture with a constant current driver and a 100,000 hour LED life rating, so relamp trips go away, and the slipfitter version mounts to the same pole tenon a shoebox or flood head already sits on. Confirm your circuit voltage first, since the 120-277V and 480V builds are separate part numbers.
8) Does the RAB FFLED Large come in white, or only bronze?
Both. Bronze is the default for poles and darker building facades, and a white version is available on every mount and voltage combination, carrying a W in the part number (FFLEDLSFW, FFLEDLTW, FFLEDLSFW/480, FFLEDLTW/480, and the 3000K warm equivalents). White is the usual pick under white canopies and on light-colored stucco where you want the housing to disappear.
