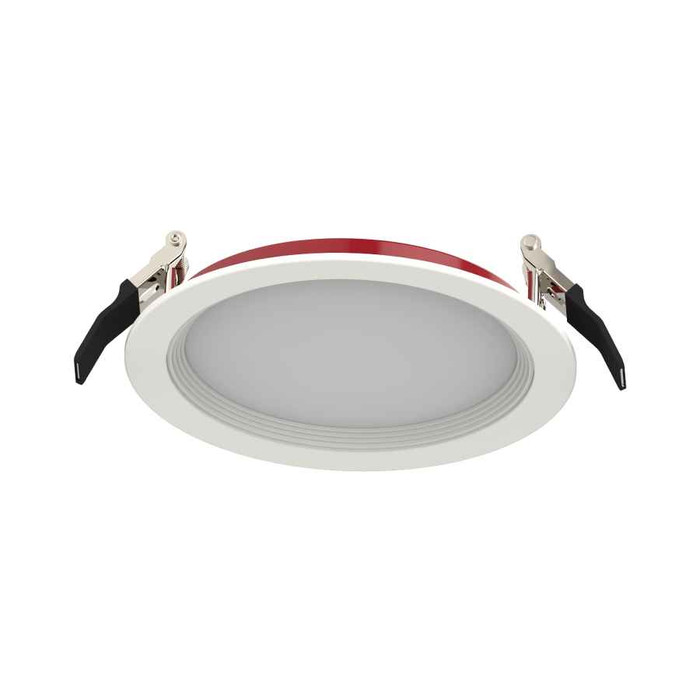

RAB Fire-Resistant Wafer LED Downlight (4″–6″, 11W–15W, 5CCT Selectable, CRI90, Smooth/Baffle Trim, 120V, White)

RAB Fire-Resistant Wafer LED Downlight 4-6 Inch 11-15W 5CCT Selectable CRI90 with Smooth Baffle Trim

(No reviews yet) Write a Review

Model: FWAFER6

In Stock (leaves warehouse same day if ordered before 3pm ET)

$48.19
$46.13
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

RAB Fire-Resistant Wafer LED Downlight 4-6 Inch 11-15W 5CCT Selectable CRI90 with Smooth Baffle Trim

Professional fire-rated LED downlighting with selectable color temperature

The RAB Fire-Resistant Wafer LED Downlight delivers professional-grade illumination with fire-resistant construction for 4-6 inch applications. This 11-15W LED downlight features 5CCT selectable color temperature technology and CRI90 color rendering for superior light quality. The smooth baffle trim design provides versatile installation options with 120V operation and white finish with red accent details.

Professional Features & Benefits

  • Fire-Resistant Construction: Engineered for enhanced safety compliance in commercial and residential applications requiring fire-rated fixtures.
  • 5CCT Selectable Technology: Allows field adjustment of color temperature to match specific lighting requirements and preferences.
  • CRI90 Color Rendering: Delivers exceptional color accuracy and visual comfort for professional lighting applications.
  • 11-15W LED Efficiency: Provides energy-efficient operation with 50,000-hour lamp life for reduced maintenance costs.
  • Smooth Baffle Trim: Professional trim design minimizes glare while providing clean, finished appearance.
  • Constant Current Class 2 Driver: Ensures stable LED performance and simplified installation with low-voltage safety classification.
  • Compact 2.91" Width: Space-efficient design accommodates tight installation requirements while maintaining performance.

Technical Specifications

  • Driver Info: Constant Current, Class 2
  • Lamp Hours: 50000
  • Lamp Info: LED
  • Product Finish: White + Red
  • Product Width: 2.91

Professional Applications

  • Commercial Office Buildings
  • Residential Fire-Rated Assemblies
  • Healthcare Facilities
  • Educational Institutions
  • Hospitality Properties
  • Multi-Family Housing
  • Retail Establishments

Why Choose RAB Quality?

RAB delivers professional-grade LED downlighting solutions with fire-resistant construction and 50,000-hour lamp life. The constant current Class 2 driver ensures reliable performance while the compact design and selectable color temperature provide installation flexibility for demanding commercial and residential applications.

Manufacturer Resources

Product Specs

Driver Info:
Constant Current, Class 2
Lamp Hours:
50000
Product Finish:
White + Red
Product Width:
2.91
Department:
Electrical
Product Group:
Recessed Lighting
Light Technology:
LED

RAB FWAFER6 – Frequently Asked Questions

1) What is the difference between the RAB FWAFER4 and FWAFER4B wafer downlights?
Trim style is the only difference in that pair. FWAFER4 is the 4 inch smooth trim, FWAFER4B is the 4 inch baffle trim. The baffle cuts glare with its ridged interior, the smooth trim gives a cleaner reflector look. Same story at 6 inches: FWAFER6 smooth, FWAFER6B baffle.
2) Can I use the RAB fire-resistant wafer downlight to replace an existing 6 inch can light?
Yes, both a 4 inch and a 6 inch aperture are offered, so you can match whichever hole size is already cut. The wafer body is only 2.91 inches wide, so it slips into a shallow ceiling cavity where a full housing will not go.
3) Do I need to order separate fixtures for 3000K and 4000K on the same job?
No. The RAB fire-resistant wafer is 5CCT selectable, so you set the color temperature at the fixture during install. One part number covers every room, and you can re-set a fixture later if the spec changes instead of swapping it out.
4) Is the CRI high enough for healthcare and retail spaces?
CRI90 on the RAB wafer downlight, which is the level specified where color accuracy matters, including healthcare facilities, retail display, and hospitality. Below 90 CRI, skin tones and merchandise color shift noticeably.
5) What kind of driver does this wafer light use, and is it integral?
A constant current Class 2 driver, supplied with the fixture. Class 2 means low-voltage output on the LED side, which keeps the junction box wiring simple: you land line voltage 120V at the box and the driver handles the rest. No remote transformer to mount.
6) Should I use a wafer downlight or a can-and-trim housing for a retrofit?
Wafer style is the choice when there is no room above the ceiling or you do not want to open drywall. At 2.91 inches wide with the driver in a separate junction box, the RAB fire-resistant wafer goes into an existing hole from below. A traditional housing is the better call on new construction where you have open joist bays and want the deeper optic and accessory trims that come with it.
7) How long do these RAB LED wafer downlights last before relamping?
Rated at 50,000 hours of LED life. The LED is integral, so there is no lamp to relamp, you replace the fixture at end of life. For an MRO or multi-family portfolio, that is the number to run against your maintenance cycle, and it is a large part of the case for going LED over a lamped can.
8) What wattage and color does the RAB fire-resistant wafer come in?
Wattage runs 11W to 15W depending on aperture, and the visible finish is white. The red accent is on the housing, not the face of the trim, so what shows at the ceiling is a white smooth or white baffle trim, consistent across a whole floor of openings.
