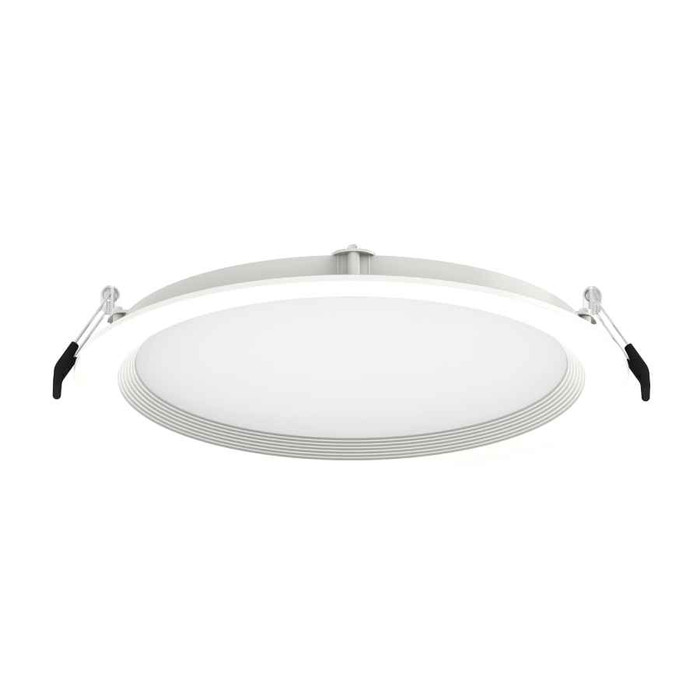

RAB WFRL 8" Round LED Wafer Downlight – 23W, 5CCT Selectable (Smooth or Baffle Trim)

RAB WFRL 8" Round LED Wafer Downlight - 23W, 5CCT Selectable with Smooth or Baffle Trim

(No reviews yet) Write a Review

Model: WFRL8R239FA120WB

In Stock (leaves warehouse same day if ordered before 3pm ET)

$55.70
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

RAB WFRL 8" Round LED Wafer Downlight - 23W, 5CCT Selectable with Smooth or Baffle Trim

Professional LED Downlighting with Selectable Color Temperature

The RAB WFRL 8" Round LED Wafer Downlight delivers professional-grade illumination with 23W power consumption and 5CCT selectable color temperature options. This versatile downlight features both smooth and baffle trim options for customized lighting aesthetics, making it ideal for commercial and residential applications requiring reliable LED performance with 1800 lumens output and 50,000-hour lamp life.

Professional Features & Benefits

  • 23W LED Technology: Delivers efficient 1800 lumens with 78 efficacy rating for optimal energy performance and cost savings.
  • 5CCT Selectable: Adjustable color temperature selection allows customization for different environments and applications.
  • Dual Trim Options: Choose between smooth or baffle trim designs to match architectural requirements and lighting preferences.
  • 50,000 Hour Life: Extended lamp life reduces maintenance costs and ensures long-term reliability in professional installations.
  • Low Flicker Performance: ≤30 flicker rating provides comfortable, stable illumination suitable for occupied spaces.
  • Constant Current Driver: Ensures consistent LED performance and longevity across varying electrical conditions.
  • Multi-Voltage Compatibility: Operates efficiently at 208V (0.12A), 240V (0.10A), and 277V (0.09A) for flexible installation options.

Technical Specifications

  • Amps 208: 0.12A
  • Amps 240: 0.10A
  • Amps 277: 0.09A
  • Driver Info: Constant Current
  • Efficacy: 78
  • Flicker: ≤30
  • Input Watts: 23
  • Lamp Hours: 50000
  • Lamp Info: LED
  • Lamp Lumens: 1800
  • Product Finish: White
  • Product Height: 9.25
  • Product Length: 9.25
  • Product Watts: 23

Professional Applications

  • Commercial Office Buildings
  • Retail Establishments
  • Hospitality Facilities
  • Residential Properties
  • Educational Institutions
  • Healthcare Facilities
  • Professional Services

Why Choose RAB Quality?

RAB delivers professional-grade LED downlighting solutions with proven reliability and performance. The white finish and robust construction ensure long-lasting operation, while the constant current driver technology provides consistent illumination throughout the 50,000-hour lamp life, making this an ideal choice for demanding commercial and residential lighting applications.

Manufacturer Resources

Product Specs

Amps 208:
0.12A
Amps 240:
0.10A
Amps 277:
0.09A
Driver Info:
Constant Current
Efficacy:
78
Flicker:
≤30
Input Watts:
23
Lamp Hours:
50000
Product Finish:
White
Product Height:
9.25
Product Length:
9.25
Department:
Electrical
Product Group:
Recessed Lighting
Light Technology:
LED
Lumens:
1800
Product Wattage:
23

RAB WFRL8R239FA120WB – Frequently Asked Questions

1) Will the RAB WFRL 8 inch wafer downlight run on 277V, or do I need a separate part number for it?
Depends which driver you order. The WFRL 8 inch round comes two ways: a 120V-only driver (WFRL8R239FA120WS smooth, WFRL8R239FA120WB baffle) and a dual-voltage 120V/277V driver (WFRL8R239FADWS smooth, WFRL8R239FADWB baffle). If the fixture is going on a 277V commercial circuit, you need the dual-voltage version. At 277V it draws 0.09A, at 240V 0.10A, and at 208V 0.12A, so a run of these loads a branch circuit very lightly.
2) Do I have to order a separate fixture for each color temperature, or is one part number enough?
One part number covers all five. The WFRL 8 inch round is 5CCT selectable, so the color temperature is set with a switch on the fixture at install time. Practically, that means a property manager or electrician can stock a single SKU and match warm lobby lighting and cooler back-of-house areas from the same box, and change a room later without swapping fixtures. The only choices you actually make when ordering are driver voltage and trim style.
3) Smooth trim or baffle trim on an 8 inch wafer light, which should I use?
Both trims put out the same 1800 lumens at 23W, so this is a glare and appearance call, not a performance one. The baffle trim has the stepped inner ring that absorbs stray light and cuts the apparent brightness of the aperture, which is what most people want over seating, desks, and lower residential or hospitality ceilings. The smooth trim gives a cleaner flush look that suits minimal commercial and retail ceilings. Both are white.
4) Will these wafer lights flicker on camera or bother people in an office?
Flicker is rated at 30 or less and the fixture runs on a constant current driver, which holds LED output steady as line conditions vary. That flicker figure is the reason this one gets specified for occupied spaces, classrooms, healthcare corridors, and anywhere people sit under the light all day or video is being shot.
5) How long before I have to relamp these downlights?
You don't relamp them. The LED and driver are integral to the WFRL wafer, rated at 50,000 hours. On a 12 hour a day commercial schedule that's roughly 11 years of service, so for an MRO or facilities budget these are a replace-the-fixture item at end of life rather than a recurring lamp line. That is the main argument for wafers over older can-and-lamp downlights in a large building.
