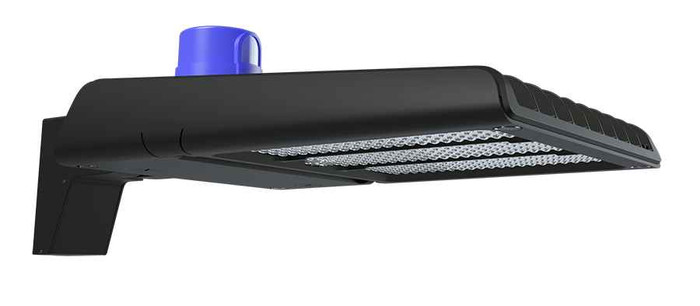

RAB LED Area Light Adjustable Power Type III Pole Mount 150W/120W/100W Bronze Professional Lighting System

RAB LED Area Light Adjustable Power Type III Pole Mount 150W/120W/100W Bronze Professional Lighting System

(No reviews yet) Write a Review

Model: A22-150X

In Stock (leaves warehouse same day if ordered before 3pm ET)

$396.37
$374.95
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

RAB LED Area Light Adjustable Power Type III Pole Mount 150W/120W/100W Bronze Professional Lighting System

Professional outdoor lighting with adjustable power settings and Type III distribution

The RAB LED Area Light delivers professional-grade outdoor illumination with adjustable power settings from 100W to 150W, featuring Type III light distribution for optimal coverage. This pole-mounted fixture combines energy-efficient LED technology with durable bronze finish construction, providing reliable performance for commercial and industrial applications. The constant driver design ensures consistent light output while the DLC Premium certification guarantees superior energy efficiency and performance standards.

Professional Features & Benefits

  • Adjustable Power Settings (150W/120W/100W): Provides flexible lighting control to match specific application requirements and optimize energy consumption.
  • High Efficacy Performance (132.4-163.1lm/W): Delivers exceptional energy efficiency with maximum light output per watt consumed, reducing operational costs.
  • DLC Premium Certification: Ensures top-tier energy performance and qualifies for utility rebates and incentive programs.
  • 100,000 Hour LED Life: Provides long-lasting performance with minimal maintenance requirements for continuous operation.
  • Type III Light Distribution: Optimized beam pattern for area lighting applications with forward throw and controlled backlight.
  • Bronze Finish Construction: Weather-resistant coating provides durability and professional appearance in outdoor environments.
  • Constant Driver Technology: Maintains consistent light output and extends LED lifespan through stable power delivery.

Technical Specifications

  • Amps 120: 1.25A/1.00A/0.83A
  • Amps 208: 0.72A/0.58A/0.48A
  • Amps 240: 0.63A/0.50A/0.83A
  • Amps 277: 0.54A/0.43A/0.36A
  • Dlc Id: S-MZV4GY
  • Dlc Type: DLC Premium
  • Dlc Version: 5.1
  • Driver Info: Constant
  • Efficacy: 132.4-163.1lm/W
  • Input Watts: 99.4-151.4
  • Lamp Hours: 100000
  • Lamp Info: LED
  • Lamp Lumens: 15,009-22,117
  • Product Finish: Bronze
  • Product Height: 5.51
  • Product Length: 25.6
  • Product Watts: 150/120/100
  • Product Weight: 15
  • Product Width: 13.58

Professional Applications

  • Commercial Parking Lots and Garages
  • Industrial Facility Perimeters
  • Retail Shopping Centers
  • Municipal Street and Roadway Lighting
  • Educational Campus Walkways
  • Healthcare Facility Exteriors
  • Multi-Unit Residential Properties

Why Choose RAB Quality?

RAB LED area lights combine proven reliability with advanced LED technology and DLC Premium certification. The bronze finish construction and 100,000-hour LED life ensure long-term durability and consistent performance in demanding outdoor environments, backed by professional-grade constant driver technology for optimal light output and energy efficiency.

Manufacturer Resources

Product Specs

Amps 120:
1.25A/1.00A/0.83A
Amps 208:
0.72A/0.58A/0.48A
Amps 240:
0.63A/0.50A/0.83A
Amps 277:
0.54A/0.43A/0.36A
Dlc Id:
S-MZV4GY
Dlc Type:
DLC Premium
Dlc Version:
5.1
Driver Info:
Constant
Efficacy:
132.4-163.1lm/W
Input Watts:
99.4-151.4
Lamp Hours:
100000
Product Finish:
Bronze
Product Height:
5.51
Product Length:
25.6
Product Weight:
15
Product Width:
13.58
Department:
Electrical
Product Group:
Area Lights
Light Technology:
LED
Lumens:
15,009-22,117
Product Wattage:
150/120/100

RAB A22-150X – Frequently Asked Questions

1) What does Type III distribution mean on the RAB A22-150X area light, and is it the right pattern for a parking lot perimeter?
Type III throws light forward and out to the side with controlled backlight, which is what you want on fixtures set along the edge of a lot or a drive aisle where the pole line runs parallel to the area being lit. Mount it at the perimeter and the light pushes into the lot instead of spilling behind the pole onto a property line. If your poles sit in the middle of the lot with parking on both sides, a Type V or Type II pattern suits that layout better than Type III.
2) How do I set the wattage on the RAB A22 adjustable area light, and what lumens do I get at each step?
It is a field-selectable fixture rated 150/120/100W, so one part number covers three output levels and you pick the one that meets the photometric target on the site plan. Delivered lumens run 15,009 to 22,117 across that range, with actual input watts of 99.4 to 151.4. Efficacy stays between 132.4 and 163.1 lm/W depending on the setting. Practically: spec the 150W step for tall poles or wide spacing, drop to 100W where you are over-lighting a walkway or trying to cut connected load for an energy code calculation.
3) What current does the RAB 150W area light draw so I can size the circuit and count fixtures per breaker?
Draw depends on your service voltage and which wattage step you set. At 120V it pulls 1.25A at 150W, 1.00A at 120W and 0.83A at 100W. At 208V it is 0.72A/0.58A/0.48A, and at 277V it is 0.54A/0.43A/0.36A. On a 277V 20A branch circuit at the 150W setting, 0.54A per fixture leaves plenty of headroom for a long pole run, which is why most commercial lots land on 277V for site lighting.
4) Does the RAB A22-150X qualify for a utility rebate?
It carries DLC Premium listing under DLC version 5.1, product ID S-MZV4GY. Premium is the higher of the two DLC tiers and is what most utility programs require for their top rebate level, and the DLC ID is the number the utility will ask for on the application. Pull it into your rebate paperwork along with the wattage step you actually commission, since the incentive is usually calculated on installed watts.
5) Can I use the RAB A22 area light to replace metal halide fixtures on my existing poles?
Yes, on a wattage-for-light basis this is a common metal halide swap. At the 150W setting it puts out up to 22,117 lumens, which covers what a 400W metal halide head delivered when new, and it does it at 151.4 input watts. LED rated life is 100,000 hours against the lamp changes and ballast failures a HID lot generates every couple of years. The one thing to verify on your own poles is the mounting: this is a pole-mount fixture and your existing arm or tenon has to match the mount you order.
6) How much does the RAB A22 area light weigh and how big is it? I need to check the pole and bracket.
The fixture weighs 15 lbs and measures 25.6 by 13.58 by 5.51 inches. That is a light head for a 150W area fixture, so on a standard square steel pole the EPA and weight are rarely the limiting factor even with two or four heads on a tenon. The shallow 5.51 inch depth also keeps the wind profile down on taller poles.
7) Is the driver on the RAB A22 dimmable or constant output?
It uses a constant driver, so the fixture holds a steady output at whatever wattage step you select rather than varying with line conditions. Output levels are changed by the 150/120/100W selection on the fixture, not by a control signal. If your project requires 0-10V dimming tied to a photocell or an occupancy control for an energy code credit, confirm that capability separately before you commit the site to this head.
8) What is the part number for the RAB 150W Type III bronze area light?
Order it as RAB A22-150X. The X in the number is the adjustable power feature, covering 150W, 120W and 100W in one head. That single part number is what you put on a submittal or a purchase order; the wattage is set at the fixture, not ordered as a separate SKU.
9) Will the bronze finish on this RAB area light match the other fixtures already on my property?
The finish is bronze, which is the default architectural color on commercial site lighting and the one most existing pole heads, bollards and wall packs on a property were specified in. If your campus standard is bronze poles, this drops in visually without a repaint. If you are matching black or white poles, bronze will read as a different fixture from the ground.
