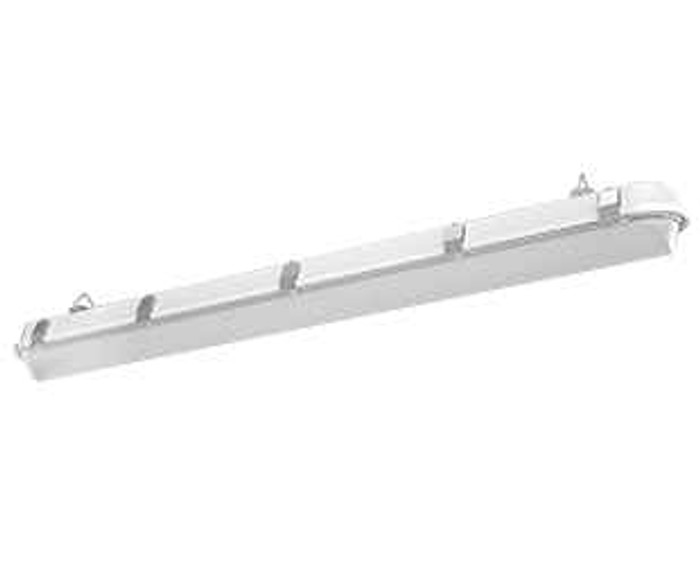

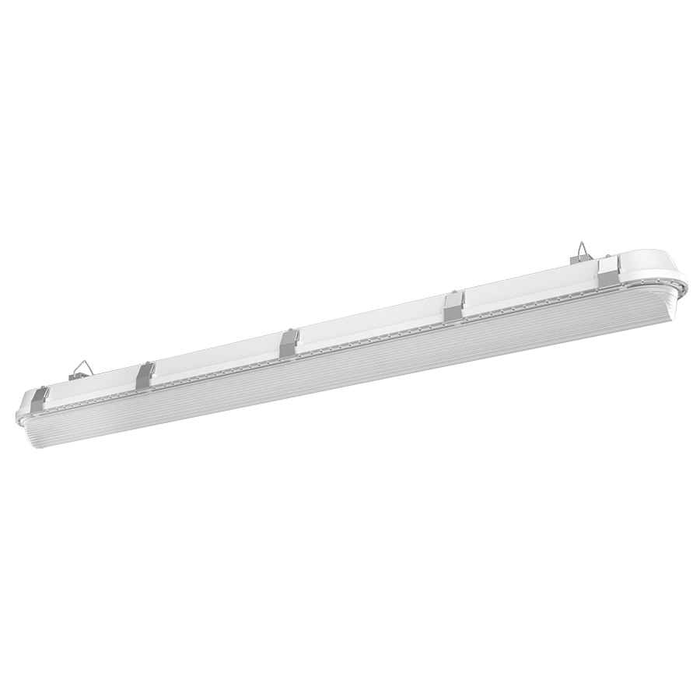

RAB SHARK4 Series 4-Foot Linear Washdown LED Fixture with IP66 Rating and Marine Listing

RAB SHARK4 Series 4-Foot Linear Washdown LED Fixture

Professional Marine-Grade LED Lighting for Demanding Environments

The RAB SHARK4 Series delivers professional-grade linear LED lighting designed for washdown applications requiring superior protection against dust and water. This 4-foot fixture features IP66 ingress protection rating and NEMA 4X corrosion resistance, making it ideal for marine environments and demanding commercial applications. With DLC Premium 5.1 listing and NSF certification for public health and safety, this fixture provides reliable performance with 36W–50W power options and color temperatures from 3500K–5000K across 120–277V/480V configurations.

Professional Features & Benefits

• IP66 Ingress Protection: Complete dust protection and powerful water jet resistance ensure reliable operation in harsh washdown environments.
• NEMA 4X Corrosion Resistance: Advanced protection against corrosion extends fixture life in marine and industrial applications.
• DLC Premium 5.1 Listed: Ultra-efficient premium designation qualifies for utility rebates and demonstrates superior energy performance.
• NSF Public Health Certification: Certified for food service and healthcare environments where sanitation is critical.
• IK09 Impact Resistance: Polycarbonate enclosure with 5VA flame rating withstands mechanical impact and provides fire safety.
• 100,000 Hour LED Life: Long-life, high-efficacy surface-mount LEDs minimize maintenance and replacement costs.
• 4kV Surge Protection: Built-in surge protection safeguards against electrical transients and extends fixture lifespan.

Technical Specifications

• Cold Weather Starting: The minimum starting temperature is -30°C (-22°F)
• Color Uniformity: RAB's range of Correlated Color Temperature follows the guidelines of the American National Standar
• Dlc Listed: This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that
• Dlc Type: DLC Premium
• Dlc Version: 5.1
• Driver Info: Constant Current
• Enclosure: IK09 impact-resistant polycarbonate with 5VA flame rating*
• Gaskets: EVA
• Iesna Lm 79 Lm 80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance w
• Ip Rating: Ingress protection rating of IP66 for dust and water
• Lamp Hours: 100000
• Lamp Info: LED
• Leds: Long-life, high-efficacy, surface-mount LEDs
• Lens: Textured, diffuse polycarbonate lens for low glare and maximum protection
• Maximum Ambient Temperature: Suitable for use in up to 40°C (104°F)
• Mounting Method: Quick-mount, surface, stainless steel spring clips and V-Hook with bracket screws are supplied. 3 a
• Nema Rating: 4X, protected against corrosion
• Nsf: NSF Certified by Public Health and Safety
• Product Details: Constant Current
• Product Length: 4ft
• Reflector: Specular polycarbonate
• Surge Protection: 4kV
• Ul 94: 5VA flame classification

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Marine Facilities and Boat Houses
• Food Processing and Commercial Kitchens
• Healthcare and Laboratory Environments
• Car Wash and Vehicle Service Facilities
• Industrial Washdown Areas
• Pharmaceutical Manufacturing
• Cold Storage and Refrigerated Spaces

Why Choose RAB Quality?

RAB delivers professional-grade LED lighting solutions with rigorous independent laboratory testing per IESNA LM-79 and LM-80 standards. The SHARK4 Series combines marine-grade construction with DLC Premium efficiency and NSF public health certification, ensuring reliable performance in the most demanding washdown environments. With 100,000-hour LED life and comprehensive surge protection, this fixture provides long-term value and minimal maintenance requirements.
