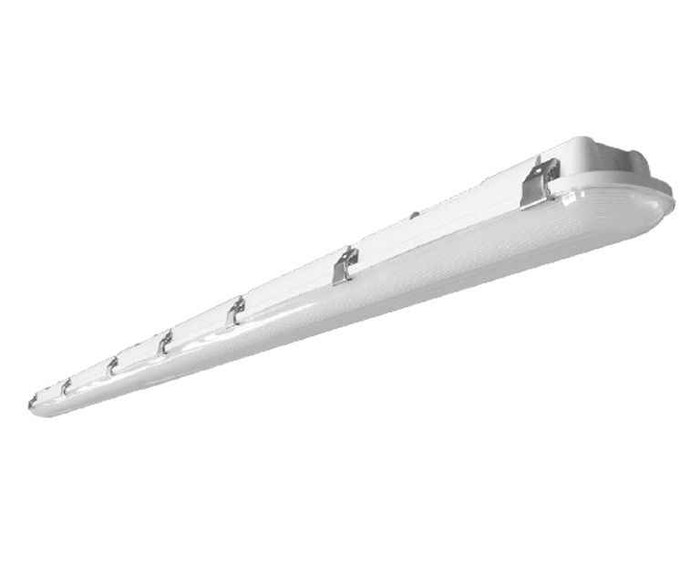

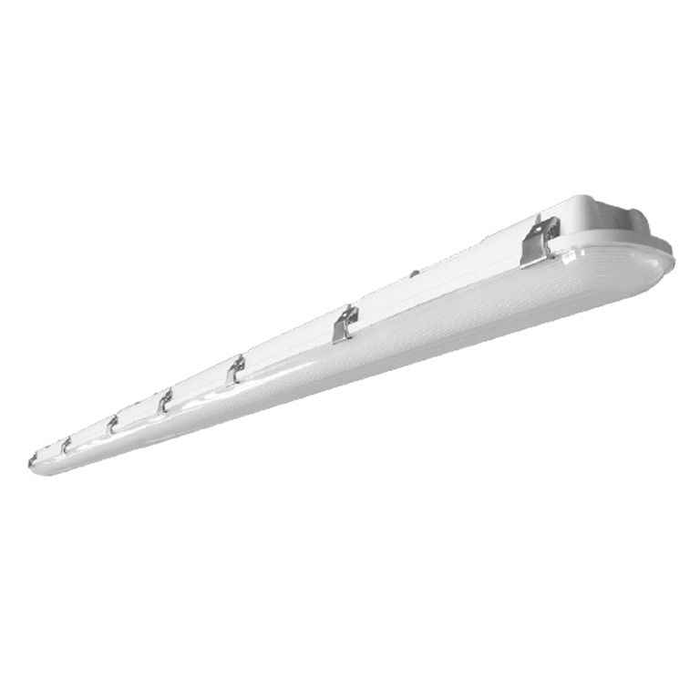

Keystone 8ft Vapor Tight LED Linear Fixture with Power Select & Color Select 90W IP66

Keystone 8ft Vapor Tight LED Linear Fixture with Power Select & Color Select

Professional LED lighting with selectable power and color temperature for demanding environments

The Keystone 8ft Vapor Tight LED Linear Fixture delivers professional-grade illumination with IP66 construction for harsh environments. Featuring selectable power options (90/75/54W) and color temperature selection (3500K/4000K/5000K), this surface-mount fixture provides versatile lighting solutions with 0-10V dimming capability and 50,000-hour rated life for reliable long-term performance.

Professional Features & Benefits

• Selectable Power Options (90/75/54W): Optimize energy consumption and light output for specific application requirements while maintaining installation flexibility.
• Color Temperature Selection (3500K/4000K/5000K): Choose the ideal color temperature for task requirements, from warm to daylight tones for enhanced visibility and comfort.
• IP66 Vapor Tight Construction: Provides superior protection against dust, moisture, and harsh environmental conditions for reliable operation in demanding locations.
• 0-10V Dimming Capability: Enables precise light level control for energy savings and optimal illumination management in professional applications.
• High Lumen Output (up to 11,900 lumens): Delivers exceptional brightness with selectable output levels to match specific lighting requirements and energy efficiency goals.
• DLC Listed Quality: Meets rigorous performance standards for commercial and industrial applications, ensuring reliable operation and energy efficiency.
• 5-Year Warranty Coverage: Backed by comprehensive warranty protection for long-term reliability and professional peace of mind.

Technical Specifications

• Accessory Device: No
• Cec T20: No
• Construction: IP66
• Cri: >80
• Dimming: 0-10V
• Dlc: Yes
• Dlc Premium: No
• Energy Star: No
• Housing Color: Gray
• Input Voltage: 120-277
• Led Module Included: No
• Mounting Method: Surface Mount
• Nominal Size: 8 ft Linear
• Not Suitable For Sale In California: No
• Product Weight: 8 lbs
• Rated Life Hours: 50000
• Selectable Color Temperature: 3500/4000/5000
• Selectable Lumens Output: 11900/10200/7600
• Selectable Power: 90/75/54
• T24 Ja8: No
• Ul: No
• Unique Features: 12V Aux Power
• Warranty Years: 5
• Wireless Control: No

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Industrial Facilities and Manufacturing Plants
• Commercial Warehouses and Distribution Centers
• Parking Garages and Covered Areas
• Food Processing and Clean Room Environments
• Retail and Big Box Store Applications
• Educational and Institutional Buildings
• Healthcare and Laboratory Facilities

Why Choose Keystone Quality?

Keystone delivers professional-grade LED lighting solutions with IP66 vapor tight construction and 5-year warranty coverage. The DLC listing ensures verified performance standards, while the 50,000-hour rated life and selectable power/color options provide long-term reliability and application flexibility for demanding commercial and industrial environments.
