Keystone 4ft LED Wrap Fixture ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$233.31
$179.04

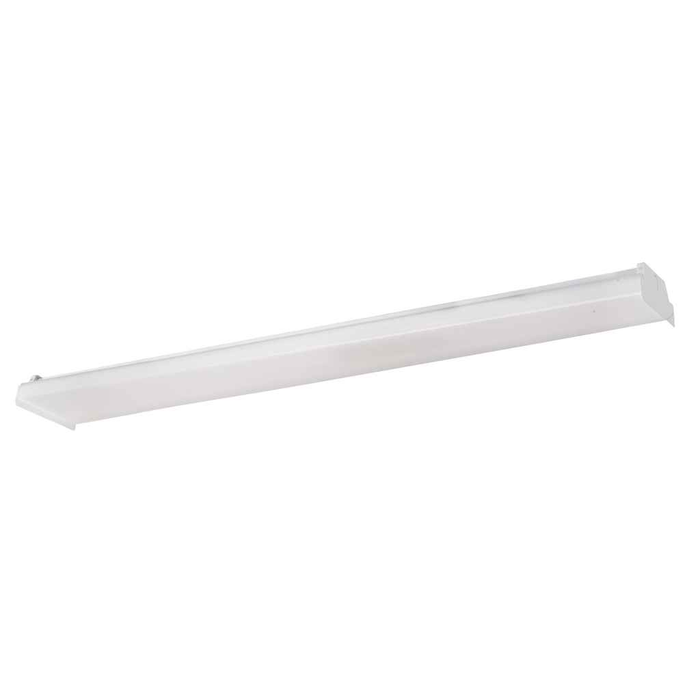

Keystone 4ft LED Wrap Fixture with Power Select & Color Select 44W 0-10V Dimmable

Keystone 4ft LED Wrap Fixture with Power Select & Color Select 44W 0-10V Dimmable

(No reviews yet) Write a Review

Model: KT-WLED44PS-4-8CSA-VDIM
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$233.31
$179.04
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Keystone 4ft LED Wrap Fixture with Power Select & Color Select

Professional LED lighting with selectable power and color temperature options

The Keystone 4ft LED Wrap Fixture delivers versatile professional lighting with Power Select and Color Select technology. This ceiling-mounted fixture features selectable power options of 44W/28W/18W and color temperatures of 3500K/4000K/5000K, providing flexible illumination for diverse commercial and industrial applications. Built with a white housing and 0-10V dimming capability, this fixture offers reliable performance with 50,000-hour rated life and 5-year warranty coverage.

Professional Features & Benefits

  • Selectable Power Options (44W/28W/18W): Customize energy consumption and light output to match specific application requirements while maintaining installation flexibility.
  • Color Temperature Selection (3500K/4000K/5000K): Choose optimal color temperature for task lighting, ambient lighting, or specific work environments without stocking multiple fixtures.
  • 0-10V Dimming Compatibility: Integrate with professional lighting control systems for precise light level management and energy optimization.
  • High CRI Performance (>80): Delivers accurate color rendering for professional environments requiring quality visual performance.
  • DLC Listed Qualification: Meets utility rebate requirements and energy efficiency standards for commercial lighting applications.
  • 50,000-Hour Rated Life: Provides long-term reliability with minimal maintenance requirements for continuous operation environments.
  • 12V Auxiliary Power: Enables connection of emergency battery packs or other auxiliary devices for enhanced functionality.

Technical Specifications

  • Accessory Device: No
  • Cec T20: No
  • Cri: >80
  • Dimming: 0-10V
  • Dlc: Yes
  • Dlc Premium: No
  • Energy Star: No
  • Housing Color: White
  • Input Voltage: 120-277
  • Led Module Included: No
  • Mounting Method: Ceiling Mount
  • Nominal Size: 4 ft Linear
  • Not Suitable For Sale In California: No
  • Product Weight: 17 lbs
  • Rated Life Hours: 50000
  • Selectable Color Temperature: 3500/4000/5000
  • Selectable Lumens Output: 5900/3950/2675
  • Selectable Power: 44/28/18
  • T24 Ja8: No
  • Ul: No
  • Unique Features: 12V Aux Power
  • Warranty Years: 5
  • Wireless Control: No

Professional Applications

  • Commercial Office Buildings
  • Retail and Shopping Centers
  • Educational Facilities
  • Healthcare Environments
  • Industrial and Manufacturing Facilities
  • Warehouse and Distribution Centers
  • Government and Municipal Buildings

Why Choose Keystone Quality?

Keystone delivers reliable LED lighting solutions with professional-grade performance and durability. This fixture combines DLC listing for utility rebate eligibility with a comprehensive 5-year warranty, ensuring long-term value and dependable operation in demanding commercial environments.

Manufacturer Resources

Product Specs

Accessory Device:
No
Cec T20:
No
Cri:
>80
Dimming:
0-10V
Dlc:
Yes
Dlc Premium:
No
Energy Star:
No
Housing Color:
White
Input Voltage:
120-277
Led Module Included:
No
Mounting Method:
Ceiling Mount
Not Suitable For Sale In California:
No
Product Weight:
17 lbs
Rated Life Hours:
50000
Selectable Color Temperature:
3500/4000/5000
Selectable Lumens Output:
5900/3950/2675
Selectable Power:
44/28/18
T24 Ja8:
No
Ul:
No
Unique Features:
12V Aux Power
Warranty Years:
5
Wireless Control:
No
Product Nominal Size:
4 ft Linear

Keystone KT-WLED44PS-4-8CSA-VDIM – Frequently Asked Questions

1) Can one Keystone KT-WLED44PS-4-8CSA-VDIM wrap fixture cover multiple wattage and color temperature specs on a job?
Yes. The KT-WLED44PS-4-8CSA-VDIM is a 4 ft linear wrap with Power Select at 44W, 28W or 18W and Color Select at 3500K, 4000K or 5000K, set on the fixture at install. Lumen output follows the wattage you pick: 5900, 3950 or 2675 lumens. One SKU on the shelf covers offices at 3500K and warehouse aisles at 5000K, which is why MRO and property maintenance buyers standardize on it instead of stocking nine part numbers.
2) Will this 4ft LED wrap run on 277V in a commercial building?
It accepts 120 through 277 volts, so the same fixture works on 120V branch circuits in a tenant space and on 277V lighting circuits in a commercial or industrial panel. No separate voltage version to order.
3) Does this Keystone wrap fixture work with my 0-10V dimming control system?
Dimming is 0-10V, so it ties into standard low voltage analog control, occupancy or daylight sensors and panel based lighting controls. It has no wireless control built in, so if your spec calls for networked or Bluetooth control you would need an external control layer or a different fixture.
4) Is this LED wrap fixture DLC listed for utility rebates?
Yes, it carries DLC listing, which is what most utility prescriptive rebate programs require for a linear LED fixture. It is not DLC Premium, so any rebate tier that specifically requires Premium would not apply. It is also not Energy Star qualified.
5) How does this wrap fixture mount, and can it be suspended?
It is a ceiling mount fixture, designed to go up tight to the deck or ceiling surface in a corridor, stairwell, shop or storage room. The fixture weighs 17 lbs, so plan anchoring into structure or joists rather than into bare drywall.
6) Can I add an emergency battery backup to this Keystone wrap?
The fixture includes 12V auxiliary power, which is there to feed an emergency battery pack or similar auxiliary device. That matters on egress paths and corridors where code driven emergency lighting is part of the scope. The battery pack itself is a separate purchase.
7) Do I need to order LED lamps or tubes separately for this fixture?
No lamps to buy, and no tube sockets either. This is an integrated LED wrap, not a lamp ready strip, so the light engine and driver are part of the fixture and the only separate items you might add are a battery pack or a 0-10V control device.
8) Is the color quality good enough for retail or healthcare spaces?
CRI is greater than 80, which is the normal commercial threshold for offices, schools, corridors and general retail. For spaces where color matching is critical, such as paint or fabric display, specifiers typically call for 90+ CRI instead.
9) How long will this LED wrap last before relamping or replacement?
Rated life is 50,000 hours. Run 12 hours a day that is roughly 11 years of service, and because the LEDs are integrated there is no relamping cycle in between, just fixture replacement at end of life. That is the maintenance math property managers use when comparing against fluorescent wraps that need tube changes.
10) What color is the housing on this 4ft wrap fixture?
White housing, which is what matches most existing wrap and strip fixtures already in commercial corridors and back of house areas, so a one for one swap in a building with a mixed age fixture fleet still looks consistent.
