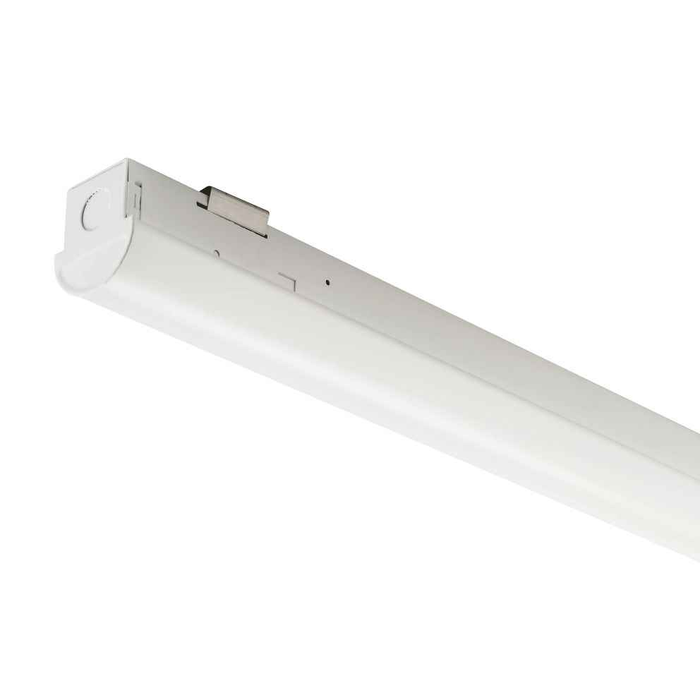

Keystone 4ft Microstrip LED Linear Fixture with Power Select & Color Select 44W 0-10V Dimmable

Keystone 4ft Microstrip LED Linear Fixture with Power Select & Color Select

Professional LED lighting with selectable power and color temperature for versatile applications

The Keystone 4ft Microstrip LED Linear Fixture delivers professional-grade illumination with advanced Power Select and Color Select technology. This ceiling-mounted fixture features selectable power options of 44/28/18 watts, selectable color temperatures of 3500K/4000K/5000K, and corresponding lumen outputs of 5850/3900/2550 lumens. With 0-10V dimming capability, 120-277V input voltage compatibility, and white housing construction, this fixture provides reliable performance for diverse commercial and residential applications.

Professional Features & Benefits

• Selectable Power Options (44/28/18W): Customize energy consumption and light output to match specific application requirements and optimize energy efficiency.
• Selectable Color Temperature (3500K/4000K/5000K): Choose the ideal color temperature for task lighting, ambient lighting, or specific environmental needs.
• Variable Lumen Output (5850/3900/2550): Adjust brightness levels to create the perfect lighting environment while maintaining energy efficiency.
• 0-10V Dimming Compatibility: Integrate seamlessly with professional dimming systems for precise light control and enhanced user experience.
• Wide Input Voltage Range (120-277V): Compatible with both residential and commercial electrical systems for versatile installation options.
• 50,000-Hour Rated Life: Provides long-lasting performance with minimal maintenance requirements, reducing total cost of ownership.
• 12V Auxiliary Power Feature: Enables connection of additional devices or sensors for enhanced functionality and system integration.

Technical Specifications

• Accessory Device: No
• Cec T20: No
• Cri: >80
• Dimming: 0-10V
• Dlc: Yes
• Dlc Premium: No
• Energy Star: No
• Housing Color: White
• Input Voltage: 120-277
• Led Module Included: No
• Mounting Method: Ceiling Mount
• Nominal Size: 4 ft Linear
• Not Suitable For Sale In California: No
• Product Weight: 4.6 lbs
• Rated Life Hours: 50000
• Selectable Color Temperature: 3500/4000/5000
• Selectable Lumens Output: 5850/3900/2550
• Selectable Power: 44/28/18
• T24 Ja8: No
• Ul: No
• Unique Features: 12V Aux Power
• Warranty Years: 5
• Wireless Control: No

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Commercial Office Spaces
• Retail Establishments
• Educational Facilities
• Healthcare Environments
• Residential Task Lighting
• Warehouse and Industrial Settings
• Hospitality Venues

Why Choose Keystone Quality?

Keystone delivers reliable LED lighting solutions backed by a comprehensive 5-year warranty and DLC qualification for energy efficiency programs. The white housing construction and 50,000-hour rated life ensure long-term durability and consistent performance in demanding professional environments.
