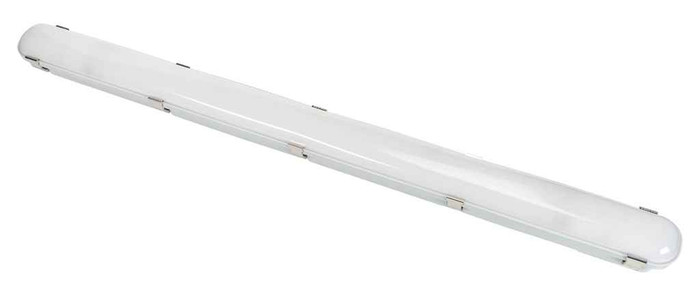

Keystone 4ft Vapor Tight LED Linear Fixture with Power Select & Color Select
Professional LED lighting with selectable power and color temperature for demanding environments
The Keystone 4ft Vapor Tight LED Linear Fixture delivers professional-grade illumination with IP66 construction for harsh environments. This versatile fixture features selectable power options (44/28/18W), selectable color temperatures (3500K/4000K/5000K), and corresponding lumen outputs (5800/3900/2575) to meet diverse application requirements. Built with gray housing and surface mount installation, this fixture provides reliable performance with 0-10V dimming capability and 12V auxiliary power for enhanced functionality.
Professional Features & Benefits
- Selectable Power Options (44/28/18W): Customize energy consumption and light output to match specific application needs while maintaining installation flexibility.
- IP66 Construction: Provides superior protection against dust and powerful water jets, ensuring reliable operation in harsh industrial and outdoor environments.
- Selectable Color Temperature (3500K/4000K/5000K): Adapt lighting ambiance from warm to cool white to suit different work environments and visual comfort preferences.
- Variable Lumen Output (5800/3900/2575): Match illumination levels to task requirements while optimizing energy efficiency across different power settings.
- 0-10V Dimming Capability: Enable precise light level control for energy savings and enhanced user comfort in professional applications.
- DLC Listed: Meets utility rebate requirements and ensures verified performance standards for commercial lighting applications.
- 5-Year Warranty: Backed by comprehensive warranty coverage demonstrating manufacturer confidence in long-term reliability and performance.
Technical Specifications
- Accessory Device: No
- Cec T20: No
- Construction: IP66
- Cri: >80
- Dimming: 0-10V
- Dlc: Yes
- Dlc Premium: No
- Energy Star: No
- Housing Color: Gray
- Input Voltage: 120-277
- Led Module Included: No
- Mounting Method: Surface Mount
- Nominal Size: 4 ft Linear
- Not Suitable For Sale In California: No
- Product Weight: 4.6 lbs
- Rated Life Hours: 50000
- Selectable Color Temperature: 3500/4000/5000
- Selectable Lumens Output: 5800/3900/2575
- Selectable Power: 44/28/18
- T24 Ja8: No
- Ul: No
- Unique Features: 12V Aux Power
- Warranty Years: 5
- Wireless Control: No
Installation & Operation
- Mount the unit in a suitable location with appropriate clearance and access for connections and service.
- Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
- Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
- Configure any available load management or control features as supported by the provided specifications.
- Test automatic transfer or operational functionality and verify proper performance before placing into service.
- Complete final inspection and follow ongoing maintenance practices appropriate to the product category.
Professional Applications
- Industrial Facilities and Manufacturing Plants
- Parking Garages and Covered Areas
- Food Processing and Clean Room Environments
- Warehouse and Distribution Centers
- Outdoor Canopies and Covered Walkways
- Commercial Kitchens and Wash Areas
- Marine and Coastal Applications
Why Choose Keystone Quality?
Keystone delivers professional-grade lighting solutions with IP66 environmental protection and comprehensive 5-year warranty coverage. The DLC listing ensures utility rebate eligibility while the 50,000-hour rated life and >80 CRI provide long-term value and superior light quality for demanding commercial and industrial applications.
