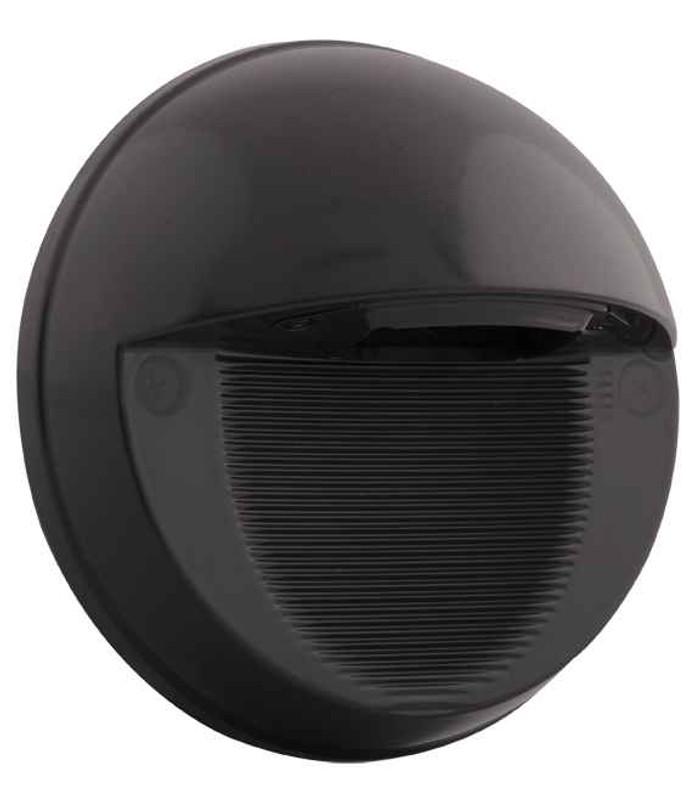

RAB SLEDR5 5-Inch Round LED Steplight 5W Multi-Voltage with Selectable CCT

RAB SLEDR5 5-Inch Round LED Steplight 5W Multi-Voltage with Selectable CCT

(No reviews yet) Write a Review

Model: SLEDR5NDCW
$435.93
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$435.93
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

RAB SLEDR5 5-Inch Round LED Steplight 5W Multi-Voltage with Selectable CCT

Professional LED step lighting with versatile voltage compatibility and selectable color temperature

The RAB SLEDR5 5-inch round LED steplight delivers reliable illumination for walkways, stairs, and architectural applications. This professional-grade fixture features 5W LED technology with selectable warm, neutral, and cool color temperatures, providing design flexibility for any project. Compatible with both 120V AC and 12/24V DC power sources, this steplight offers exceptional installation versatility for residential and commercial applications.

Professional Features & Benefits

  • 5W LED Technology: Delivers efficient, long-lasting illumination with 100,000-hour lamp life for reduced maintenance costs and reliable performance.
  • Multi-Voltage Compatibility: Operates on 120V AC (0.1A), 208V (0.06A), 240V (0.05A), or 12/24V DC for flexible installation options across various electrical systems.
  • Selectable CCT: Choose between warm, neutral, and cool color temperatures to match architectural design requirements and ambient lighting preferences.
  • 5-Inch Round Design: Compact profile provides discreet integration into walls, steps, and architectural features while delivering effective pathway illumination.
  • Low Current Draw: Minimal amperage requirements across all voltage options ensure compatibility with existing electrical infrastructure and energy efficiency.
  • Professional LED Module: Solid-state LED technology eliminates lamp replacement concerns and provides consistent light output throughout the fixture's operational life.

Technical Specifications

  • Amps 120: 0.1A
  • Amps 208: 0.06A
  • Amps 240: 0.05A
  • Lamp Hours: 100000
  • Lamp Info: LED
  • Product Watts: 5

Professional Applications

  • Residential stairway and pathway lighting
  • Commercial building step illumination
  • Hospitality and retail accent lighting
  • Architectural feature highlighting
  • Emergency egress pathway marking
  • Landscape and hardscape integration
  • Multi-unit residential properties

Why Choose RAB Quality?

RAB lighting fixtures are engineered for professional applications with robust construction and reliable performance. The SLEDR5 steplight combines energy-efficient LED technology with versatile installation options, backed by 100,000-hour lamp life for long-term value and minimal maintenance requirements in demanding commercial and residential environments.

Manufacturer Resources

Product Specs

Amps 120:
0.1A
Amps 208:
0.06A
Amps 240:
0.05A
Lamp Hours:
100000
Department:
Electrical
Product Group:
Recessed Lighting
Light Technology:
LED
Product Wattage:
5

RAB SLEDR5NDCW – Frequently Asked Questions

1) Does the RAB SLEDR5 steplight come in a low-voltage DC version, or is it line voltage only?
Both. The SLEDR5 is ordered either as a line-voltage fixture rated 100-240V or as a separate DC model rated 10-50V DC, and the two are different part numbers. Line voltage models are SLEDR5 (5000K bronze), SLEDR5N (4000K), SLEDR5Y (3000K) and the W-suffix white versions. DC models carry a DC in the number: SLEDR5DC, SLEDR5NDC, SLEDR5YDC and the DCW white versions. You cannot switch one to the other in the field, so pick the voltage before you order.
2) What color temperatures and finishes can I get on the RAB 5-inch round LED steplight?
Three color temperatures and two finishes. CCT options are 3000K (Y suffix), 4000K (N suffix) and 5000K (no CCT suffix). Finishes are bronze (no suffix) and white (W suffix). All six CCT and finish combinations are available in both line voltage and DC, which is how the family gets to 12 part numbers. Note the fixture is a fixed-CCT order, not a field switch on the back of the housing: 4000K bronze line voltage is SLEDR5N, 4000K white DC is SLEDR5NDCW.
3) How many RAB SLEDR5 steplights can I put on one 120V circuit?
At 120V each fixture draws 0.1A, so the load is small. A 15A circuit loaded to the usual 80 percent continuous limit of 12A would carry well over a hundred fixtures on current alone, which means the practical limit is your wiring method, voltage drop over the run, and breaker count rather than the fixtures. Draw drops as voltage rises: 0.06A at 208V and 0.05A at 240V.
4) Will the RAB SLEDR5 run on 277V?
No. The line voltage version is rated 100-240V, and current is published at 120V, 208V and 240V only. On a 277V lighting branch common in commercial buildings you need a fixture rated for that voltage, or a step-down transformer feeding the 100-240V model.
5) Can I use the DC version of this steplight on a 12V landscape lighting transformer?
Yes. The DC SLEDR5 models are rated 10-50V DC, which covers a 12V or 24V landscape supply as well as 48V systems. Because the window is that wide, voltage drop on a long low-voltage run is less likely to drop the fixture out than it would be on a narrow 12V-only product. For AC landscape transformers, use the 100-240V model instead.
6) Is the LED in this RAB steplight replaceable, and what kind of maintenance should a property manager expect?
There is no lamp to change. The SLEDR5 is an integrated LED fixture rated for 100,000 hours, so maintenance is cleaning the lens and eventually replacing the whole fixture rather than relamping. At dusk-to-dawn use of roughly 4,000 hours a year that rated life works out past 20 years of service, which is why it gets specified on stair and egress paths where access for relamping is awkward.
7) Which color temperature should I pick for apartment stairwells versus a hotel entry walk?
For stairwells and back-of-house egress paths, 4000K (SLEDR5N series) or 5000K (SLEDR5 series) gives the cooler, higher-contrast light that makes tread edges read clearly. For hospitality entries, patios and guest-facing hardscape, 3000K (SLEDR5Y series) matches the warmer tone usually already on the building. Pick one CCT across a property and stay with it, since mixing 3000K and 4000K on adjacent steps is immediately visible at night.
8) I need to match steplights already installed in bronze on my building. Can I order just the bronze ones?
Yes, bronze is the base finish across the whole SLEDR5 line and is available in all three color temperatures, line voltage or DC. Bronze part numbers carry no W: SLEDR5, SLEDR5N, SLEDR5Y on 100-240V, and SLEDR5DC, SLEDR5NDC, SLEDR5YDC on 10-50V DC. The W versions are the white ones, so if you are matching existing bronze, avoid any number ending in W.
9) Is a 5W steplight enough light for a commercial stairway?
A 5W LED steplight is an accent and wayfinding fixture, not a general illumination source. It marks the step and puts a pool of light on the tread or path directly below it, which is what a stair or walkway layout needs when fixtures are spaced along the run. If you are trying to light a whole stair landing or an entry from one point, a step light at this wattage will not do it; that is a job for a recessed downlight or wall pack, with the SLEDR5 used alongside for the tread edges.
