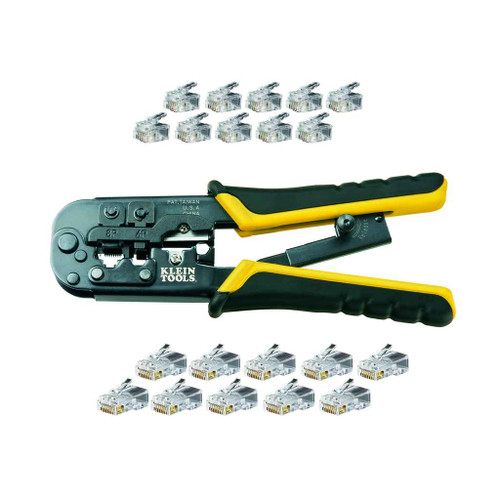

Ratcheting Modular Crimper/Stripper
VDV226-011-SEN - spec sheet
Features
- Steel body with black-oxide finish for excellent performance and durability.
- Fast, reliable modular-crimp connector installation for voice and data applications.
- Three crimping dies (8-position, 6-position and 4-position).
- All-In-One Tool, cuts, strips and crimps paired-conductor cables (round STP/UTP and flat-satin phone cable).
- Replacement blade set available (Cat. No. VDV999-064)
- Full-cycle ratchet mechanism prevents the release of the connector prior to full compression.
- Cable parameters - 28-22 AWG (.08 - .34 mm²) flat or round; solid or stranded telephone & data.
- AMP® is a registered trademark of TYCO, Inc.
- Designed for Western Electric (WE)/Stewart Stamping (SS)-type modular connectors.
- Ratchet safety-release and a blade-guard on cutting and stripping knives reduce risk of injury.
- Crimps 4, 6, and 8 position modular connectors (RJ22, RJ11/RJ12, and RJ45).
- Yellow and black grips enhance comfort, visibility, and allow quick identification.
- Not for use with AMP® connectors.
- Crimping dies are precision ground from high-carbon steel.
Warnings
- Read carefully and understand instructions before using this tool.
- Never use on or near live electrical circuits.
- NOT insulated. Will NOT protect against electrical shock.
- Always wear approved eye protection.
VDV226-011-SEN - spec sheet
Manufacturer Resources
Product Specs
- Cable Type:
- CAT3, CAT5e, CAT6/6A
- Connector Type:
- RJ45, RJ11, RJ12 Standard
- Depth:
- 7.5000 in
- Handle Color:
- Yellow/Black
- Height:
- 0.9000 in
- Material:
- Steel with Black Oxide
- Position Pair Conductors:
- 4-Position, 1-Pair/2-Conductor, 4-Position, 2-Pair/4-Conductor 6-Position, 2-Pair/4-Conductor, 6-Position, 3-Pair/6-Conductor, 8-Position, 4-Pair/8-Conductor
- Type:
- Crimper
- Weight:
- 0.1000 lbs
- Width:
- 4.0000 in
