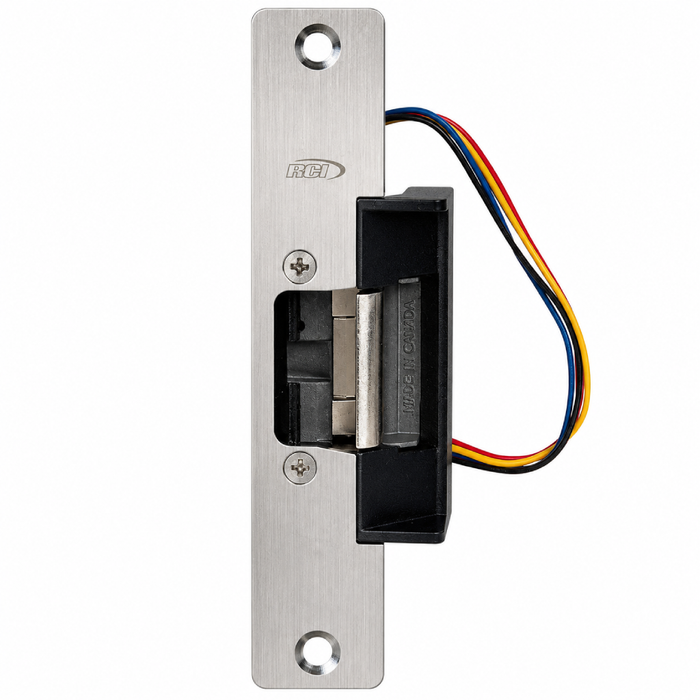

RCI 6507 Electric Strike with 6-7/8" Round Corner Faceplate for 5/8" Projection Latches

RCI 6507 Electric Strike with 6-7/8" Round Corner Faceplate for 5/8" Projection Latches

Heavy-Duty Electric Strike with Field-Selectable Operation

The RCI 6507 electric strike from the 6 Series centerline strikes combines heavy-duty construction with versatile field-selectable operation for commercial access control applications. This non-handed strike accommodates 5/8" projection latches with a 6-7/8" round corner faceplate and features 375mA field-selectable 12/24VDC, 12-24VAC operation. Rated for 500,000 cycles with 1,500lbf static and 70ft-lb dynamic strength, this UL 294 Listed strike provides reliable performance for cylindrical and mortise lock applications.

Professional Features & Benefits

• Heavy-Duty Performance: Rated for 500,000 cycles with 1,500lbf static strength and 70ft-lb dynamic rating for long-term reliability in high-traffic commercial applications.
• Flexible Power Options: 375mA field-selectable 12/24VDC, 12-24VAC operation accommodates various access control system requirements.
• Field-Selectable Operation: Fail-secure and fail-safe modes configurable without tools for adaptation to specific security requirements.
• Easy Installation: 1/4" (6.4mm) horizontal adjustment and plug-in wire connectors make installations faster and reduce inventory requirements.
• Universal Compatibility: Non-handed design works with cylindrical locks, mortise exit and latch locks for versatile application options.
• Professional Construction: 6-7/8" round corner faceplate with included trim plate covers irregular frame cut-outs for clean installations.
• UL Listed Quality: UL 294 Listed, UL 1034 Burglary-Resistant Listed, and certified to ANSI/BHMA Standard A156.31, Grade 1 for code compliance.
• Monitoring Options: Latch and keeper monitor models available for enhanced system integration and status feedback.

Technical Specifications

• Non-handed
• 500,000 Cycles
• Plug-in wire connectors
• 1,500lbf Static 70ft-lb Dynamic
• 1/4" (6.4mm) horizontal adjustment
• Field-Selectable Fail-Secure and Fail-Safe
• Low-profile accommodates 1/2" (12.7mm)
• Latch and Keeper Monitor Models Available
• Trim plate included to cover up irregular frame cut-out
• 375mA Field-Selectable 12/24VDC, 12-24VAC (At 12VDC)

Installation & Operation

1. Verify electrical requirements match available power supply. Confirm 12/24VDC or 12-24VAC voltage and 375mA current capacity before proceeding.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the strike in the door frame ensuring proper alignment with the latch projection and utilizing the 1/4" horizontal adjustment for precise positioning.
4. Route and connect wiring using the plug-in wire connectors according to manufacturer wiring diagrams. Use appropriate wire gauge for the application.
5. Configure operational settings including fail-secure or fail-safe mode per application requirements using the field-selectable options.
6. Restore power and test all functions including normal operation, latch engagement, and integration with connected access control systems.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Commercial Building Security Systems
• Office Building Access Control
• Healthcare Facility Entry Points
• Educational Institution Security
• Retail Store Access Management
• Industrial Facility Monitoring
• Multi-Tenant Building Entry Systems

Why Choose RCI Quality?

RCI electric strikes deliver professional-grade reliability with heavy-duty construction rated for 500,000 cycles and 1,500lbf static strength. UL 294 Listed and certified to ANSI/BHMA Standard A156.31, Grade 1 for code compliance and quality assurance. Engineered for demanding commercial applications where dependable access control performance is essential.
