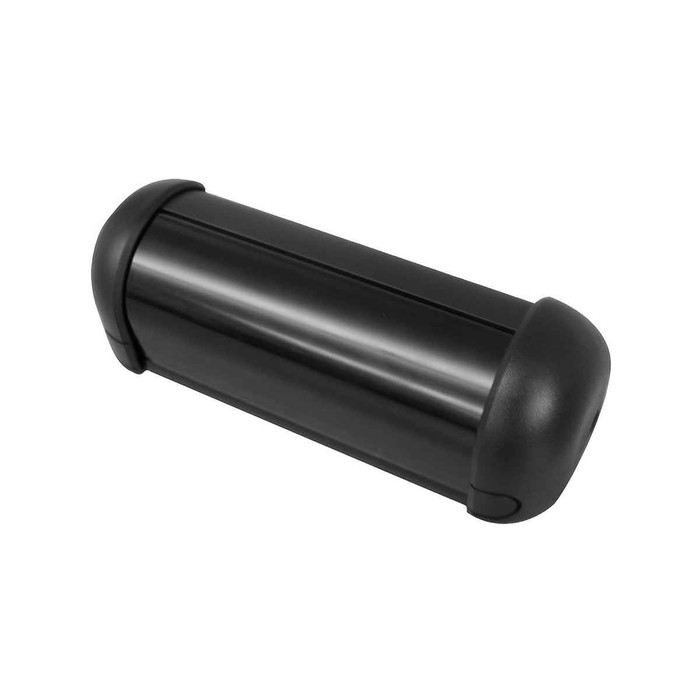

RCI 915AFI Active Focused Infrared Hands-Free Switch with Pinpoint Accuracy and Integrated Sounder

RCI 915AFI Active Focused Infrared Hands-Free Switch with Pinpoint Accuracy and Integrated Sounder

(No reviews yet) Write a Review

Model: DOR915AFI-B-A

In Stock (leaves warehouse same day if ordered before 3pm ET)

$225.00
$198.72
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

RCI 915AFI Active Focused Infrared Hands-Free Switch with Pinpoint Accuracy and Integrated Sounder

High-Security Access Control Switch with Precision Infrared Detection

The RCI 915AFI is an active focused infrared hands-free switch engineered for access control applications requiring maximum security protection. This precision device mounts on or above the door frame with infrared beam directed near door hardware for pinpoint accuracy, preventing circumvented entry activation methods such as sliding objects under the door. Operating on 12 to 24 VDC/VAC power with dimensions of 6-7/8"W x 1-7/8"H x 2"D, the unit features UL 294/ULC S319 certifications and includes three additional auxiliary inputs for comprehensive access control integration.

Professional Features & Benefits

  • Precision Infrared Detection: Active focused infrared beam directed near door hardware provides pinpoint accuracy and prevents circumvented entry by sliding objects under the door.
  • Flexible Power Options: 12 to 24 VDC/VAC operation accommodates various system voltage requirements for versatile installation compatibility.
  • Multiple Auxiliary Inputs: Three additional inputs including request to exit, card reader, and door position switch enable comprehensive access control system integration.
  • Advanced Relay Configuration: Two Form "C" contacts provide NO/NC wiring flexibility for diverse control applications and system requirements.
  • Multiple Relocking Modes: Configurable relocking options for any timed or door position conditions ensure optimal security control based on application needs.
  • Integrated Audio/Visual Feedback: Local sounder with adjustable volume and activation LEDs provide immediate operational status indication for users and security personnel.
  • UL Listed Security Rating: UL 294/ULC S319 certifications ensure compliance with commercial security standards for high-security applications.
  • Manufacturer Warranty: 3 Year Limited Warranty provides added confidence and protection for professional installations.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Electronic: Yes
  • Parts and Accessories Type: Replacement Parts
  • Product Attribute: Parts and Accessories
  • Product Category: Electronic Access Controls
  • Product Group: Electronic Access Controls
  • Product Model: 915AF
  • Product Subgroup: Parts and Accessories
  • Product Type: Switches
  • Subcategory: Electronic Access & Data

Installation & Operation

  1. Verify electrical requirements match available power supply. Confirm 12 to 24 VDC/VAC voltage and current capacity before proceeding.
  2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
  3. Mount the unit on or above the door frame ensuring adequate clearance for wiring access, ventilation, and future service requirements while positioning infrared beam near door hardware.
  4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application including auxiliary input connections.
  5. Configure operational settings including relocking modes and sounder volume per application requirements.
  6. Restore power and test all functions including infrared detection accuracy, auxiliary inputs, relay operation, and sounder/LED activation.
  7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

  • High-Security Commercial Building Access Control
  • Healthcare Facility Restricted Area Entry
  • Government and Municipal Building Security Systems
  • Financial Institution Access Points
  • Industrial Facility Secure Zone Control
  • Educational Institution Safety and Security Systems
  • Data Center and Server Room Access Control

Why Choose RCI Quality?

RCI electronic access control products deliver professional-grade security with precision infrared technology and UL 294/ULC S319 certified construction. The 3 Year Limited Warranty and integrated sounder with adjustable volume demonstrate RCI's commitment to reliable performance in demanding commercial security applications. Engineered for high-security environments where dependable hands-free operation and tamper resistance are essential.

Manufacturer Resources

RCI Product Catalog

Product Specs

Product Group:
Electronic Access Controls
Product Subgroup:
Parts and Accessories
Product Type:
Switches
Subcategory:
Electronic Access & Data
Commercial/Residential:
Commercial
Electronic:
Yes
Parts and Accessories Type:
Replacement Parts
Product Attribute:
Parts and Accessories
Product Model:
915AF
Product Category:
Electronic Access Controls
Department:
Door Hardware

RCI DOR915AFI-B-A – Frequently Asked Questions

1) Where does the RCI 915AFI infrared switch mount, and how big is it?
The 915AFI mounts on or above the door frame, with the infrared beam aimed near the door hardware so activation only happens when a hand is presented at the right spot. Housing measures 6-7/8 inches W x 1-7/8 inches H x 2 inches D, so plan for that footprint on the frame face or the wall directly above it, plus room behind for wiring access and service.
2) Will the RCI 915AFI run on my 12V access control power supply, or does it need 24V?
Either works. The 915AFI operates on 12 to 24 VDC or VAC, so it drops onto most existing access control supplies without a separate transformer. Confirm your supply has the current headroom before wiring it in.
3) How is an active focused infrared switch different from a wave switch or push plate for hands-free exit?
A focused infrared unit like the 915AFI puts a tight beam near the door hardware, which is what stops someone sliding an object under the door to trip the release. A flush wave switch such as the Locknetics WS-200 or a push plate like the Dortronics 5286 with "Push to Exit" text does the same release job at lower cost, but they mount in the wall or on the frame as a general-purpose actuator rather than a targeted beam. Pick the 915AFI where tamper resistance and hands-free operation both matter; pick the plate or wave switch where a simple exit release is all the opening needs.
4) Can I wire a card reader and door contact into the RCI 915AFI, or do I need a separate controller?
Three auxiliary inputs are built in: request to exit, card reader, and door position switch. For a single opening that means the 915AFI can take those signals directly and handle relocking itself, instead of running everything back to a panel. Relocking is configurable for timed or door position conditions.
5) Does the RCI 915AFI have dry contacts I can use to drop a mag lock or trigger a panel?
Two Form C contacts are provided, so you get normally open and normally closed on each. That covers fail-safe mag lock or electric strike control on one contact while the second reports to a panel or shunts an alarm.
6) Is the RCI 915AFI hands-free switch UL listed for access control?
Yes. The 915AFI carries UL 294 and ULC S319 certifications, which is the listing spec typically called out for access control equipment in healthcare, government, and financial facility specs.
7) Is a Schlage 7764 or 7766 door position switch a substitute for the RCI 915AFI?
No. The Schlage Electronics 7764 and 7766 are magnetic door position switches, single pole double throw, the 7764 concealed flush mount and the 7766 surface mount. They report whether the door is open or closed; they do not release it. The RCI 915AFI is the activation device, and it accepts a door position switch as one of its three auxiliary inputs along with request to exit and card reader, so a 7764 or 7766 is typically wired to the 915AFI rather than used in place of it.
8) What is the closest touchless alternative to the RCI 915AFI infrared hands-free switch?
The RCI 915AFI uses an active focused infrared beam aimed near the door hardware so it cannot be triggered by sliding an object under the door, and it mounts on or above the door frame. If you want a no-contact release but in a wall-mounted plate at the door, the Locknetics WS-200 and WS-200-MB are flush mount wave switches, and the Cal-Royal 8633-SW is a microwave cell switch supplied with single and double gang black faceplates. The wave and microwave units are actuated by a hand passing the plate rather than by a beam focused at the hardware, so mounting location and the way a user presents a hand differ from the 915AFI.
9) For an exterior door, what is an alternative to the RCI 915AFI?
The RCI 915AFI is a commercial device mounted on or above the door frame with the infrared beam aimed near the door hardware. Where the actuator is exposed to weather, the Dortronics WR5276-HD22 Series is a heavy duty waterproof switch with a 5/8 inch round stainless entry button, and the Dortronics 5277-PZL Series is a weather proof heavy duty touch sensitive piezo switch with a dual-color illuminated ring. Both are touch-actuated, so you give up hands-free operation in exchange for the weather-rated housing.
10) If I do not need touchless operation, what simpler exit release can I use instead of the RCI 915AFI?
A mechanical push device covers the same request-to-exit duty without the sensing electronics of the 915AFI. The Dortronics 5286 Series is a push plate exit release marked "Push to Exit", and the 5287 Series is a heavy duty push button with a 1-1/2 inch wide push plate on a 3 inch wide back plate, also marked "Push to Exit". For a smaller actuator, the Dortronics WR5276-HD22 Series is a heavy duty waterproof switch with a 5/8 inch round stainless entry button. These require the user to make contact, where the 915AFI is a hands-free device with an integrated sounder and activation LEDs.
11) What should I use instead of the RCI 915AFI for a remote or attended release point?
The 915AFI is mounted at the opening, on or above the door frame, so the user activates it at the door. For a release operated away from the door, the Locknetics CSW-100 and CSW-200 are flush mount concealed desk releases with an SPDT switch, and the Detex CS-400 Series are electronic keyswitches with LED indicators for access control systems where you want the release restricted to a key holder. The Norton Rixson 503 is an SPDT momentary push vestibule switch rated 15 amps, and the 504 is a dual SPDT momentary vestibule switch with a stainless steel face plate for vestibule sequencing.
12) Which alternative to the RCI 915AFI also gives users a visual status indication?
The RCI 915AFI provides a local sounder with adjustable volume plus activation LEDs. Among comparable devices, the Locknetics TS-100 is a touch switch with dual LED status indicators and a programmable timer, and the Dortronics 5277-PZL Series is a weather proof heavy duty touch sensitive piezo switch with a dual-color illuminated ring. The Detex CS-400 Series keyswitches also carry LED indicators. The TS-100 and 5277-PZL require a touch, while the 915AFI is activated without contact.
13) Can a request-to-exit switch built into the lock replace the RCI 915AFI?
They serve different roles. The Command Access REXKIT-CL is a field installable request to exit switch kit for CL180 Series cylindrical locks with an SPDT configuration, so it signals the system when someone turns the lever from the inside. The RCI 915AFI is a separate frame-mounted device a user activates without touching anything, and it has a request to exit input of its own among its three auxiliary inputs, so a lock-mounted REX kit can feed it rather than replace it.
14) Does the RCI 915AFI give any feedback when it activates?
Yes. There is a local sounder with adjustable volume plus activation LEDs, so the person at the door and anyone watching the opening gets immediate confirmation the release fired. Volume is set during commissioning, which matters in a quiet ward or office corridor.
15) What is the model designation to order the RCI hands-free infrared switch?
The product model is 915AF, ordered as DOR915AFI-B-A for the active focused infrared version with integrated sounder.
