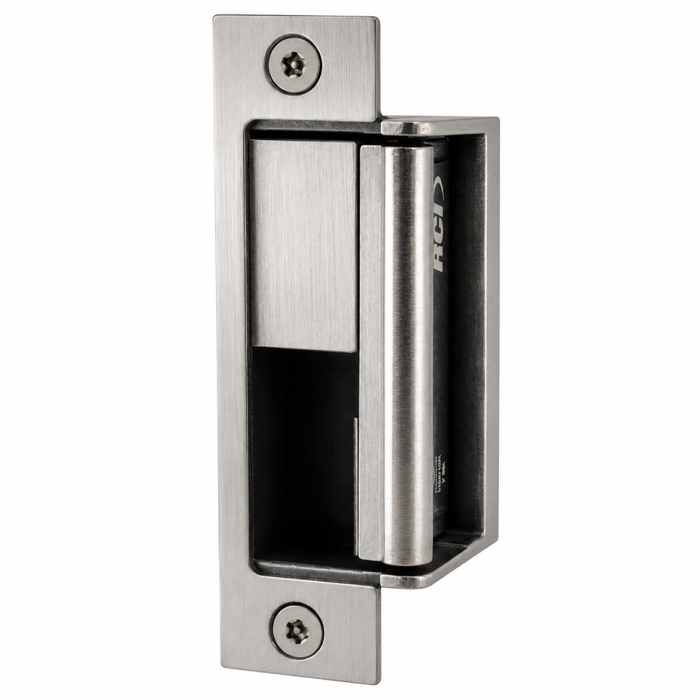

RCI F2164 Fire Rated Electric Strike with 4-7/8" Faceplate and Field-Selectable 12/24 VDC Operation

RCI F2164 Fire Rated Electric Strike with 4-7/8" Faceplate and Field-Selectable 12/24 VDC Operation

Professional Fire-Rated Electric Strike Solution

The RCI F2164 electric strike combines versatile compatibility with fire-rated performance in a sleek stainless steel design. This 2 Series strike accommodates 1/2" to 3/4" latch projection and features field-selectable 12/24 VDC operation at 375mA maximum. With adjustable deadbolt keeper and deadlatch ramp, it works flexibly with most cylindrical and mortise locks while providing 3-hour fire rating for single swing doors.

Professional Features & Benefits

• Versatile Latch Compatibility: Accommodates 1/2" (12.7mm) to 3/4" (19mm) latch projection with adjustable deadbolt keeper and deadlatch ramp for flexible installation with most locks.
• Heavy-Duty Performance: Rated for 500,000 cycles with 1,500lbf static and 70ft-lb dynamic strength for long-term reliability in high-traffic commercial applications.
• Field-Selectable Power Options: 375mA operation with field-selectable 12/24 VDC and 12-24 VAC compatibility for versatile system integration requirements.
• Fire-Rated Construction: 3-hour fire rating for single swing doors and 90-minute rating for standard door pairs ensures code compliance in fire-rated openings.
• Professional Installation Features: Saw-tooth Adjustment Locator allows vertical positioning of deadbolt keeper and deadlatch ramp, with included trim plate to cover irregular frame cut-outs.
• Fail-Secure & Fail-Safe Operation: Field-configurable operation modes adapt to specific security requirements for various applications.
• Stainless Steel Construction: Superior strength and sleek aesthetic with cool-running solenoid design that prevents keeper heating during operation.
• Manufacturer Warranty: 10 Year Limited Warranty for added confidence and protection in commercial installations.

Technical Specifications

• Commercial/Residential: Commercial
• Compatibilty: Cylindrical Locks, Mortise Exit and Latch Locks
• Department: Door Hardware
• Face Plate: 4-7/8"
• Fail-Safe/Fail-Secure: Fail-Secure
• Features: Sleek Design; Plug-in Latch Monitor Accessory; Versatile Strike Designed; Solenoid Design; Non-Handed; Insert Depth: 1-3/4" D; Accommodates Up to 1" Deadbolt
• Fire Rating: Yes
• Lock Type: Mortise or Cylindrical
• Product Category: Electronic Access Controls
• Product Group: Electronic Access Controls
• Product Subgroup: Electric Strikes
• Product Type: Electric Strikes for Cylindrical and Mortise Locks
• Product Voltage: 12/24 VAC/DC
• Series: 2 Series
• Subcategory: Electric Strikes
• UL Listing Type: UL 294 Listed, UL 1034 Burglary-Resistant Listed, Certified to ANSI/BHMA Standard A156.31, Grade 1, 3 Hour Fire Rating

Installation & Operation

1. Verify electrical requirements match available power supply. Confirm 12/24 VDC voltage and 375mA current capacity before proceeding.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
5. Configure operational settings including fail-secure/fail-safe operation per application requirements using field-selectable options.
6. Restore power and test all functions including normal operation, latch release, and integration with connected access control systems.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Commercial Building Security Systems
• Healthcare Facility Access Control
• Educational Institution Safety Systems
• Fire-Rated Door Assemblies
• Government and Municipal Buildings
• Industrial Facility Access Points
• Multi-Tenant Residential Properties

Fire-Rated Performance

The F2164 fire-rated model provides 3-hour fire rating for single swing doors and 90-minute rating for standard door pairs, ensuring compliance with fire safety codes while maintaining reliable access control functionality. UL 294 Listed and certified to ANSI/BHMA Standard A156.31 Grade 1 for professional fire-rated applications.

Why Choose RCI Quality?

RCI electric strikes deliver professional-grade reliability with stainless steel construction rated for 500,000 cycles and 1,500lbf static strength. The 10 Year Limited Warranty and UL 294 listing provide added confidence for demanding commercial applications. Engineered for fire-rated openings where dependable access control performance and code compliance are essential.
