Rittal 24116 Polyamide Cable G...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$98.16

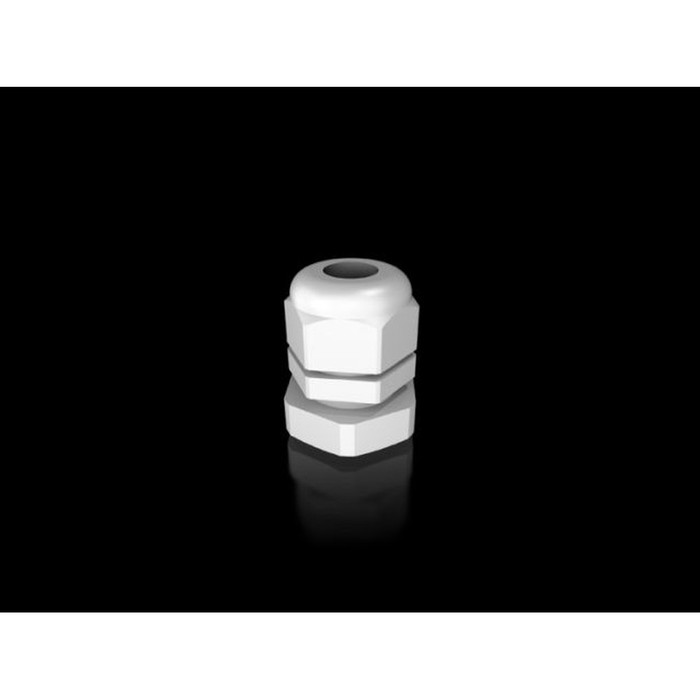

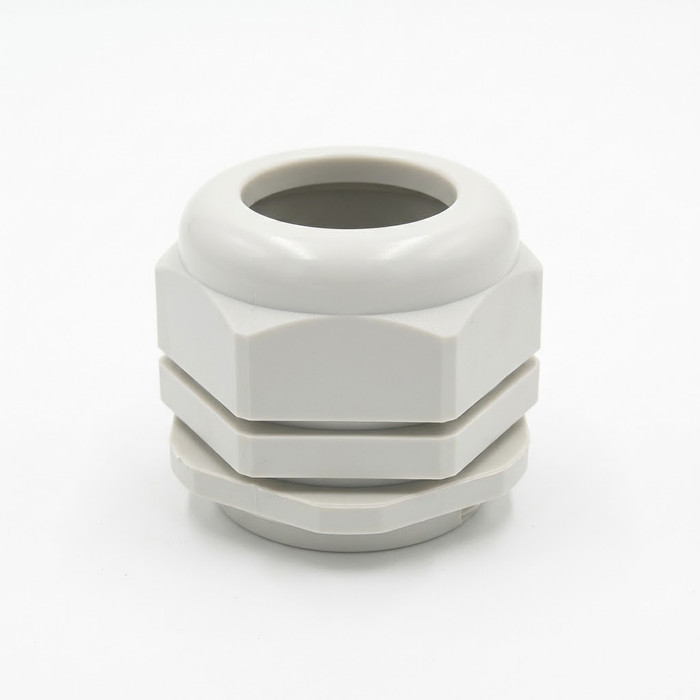

Rittal 24116 Polyamide Cable Gland, IP68 Rated

Rittal 24116 Polyamide Cable Gland, IP68 Rated

(No reviews yet) Write a Review

Model: 2411601

In Stock (leaves warehouse same day if ordered before 3pm ET)

$98.16
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Rittal 24116 Polyamide Cable Gland, IP68 Rated

The Rittal 24116 Polyamide Cable Gland, IP68 Rated is a Polyamide 6 cable entry fitting engineered to secure and seal cables passing into enclosures, panels, and equipment housings. This gland series is available across eight thread sizes, from M12 x 1.5 up to M63 x 1.5, letting installers match the correct thread and cable-diameter range to the enclosure knockout on hand. Every size in the series carries an IP68 (5 bar, 30 min.) protection rating to IEC 60529 and EN 60529, plus a Type 4X rating per UL 50E, making it well suited to demanding industrial and wet-location environments. Each gland ships together with its matching lock nut in a single pack, simplifying ordering and installation.

Key Features

  • Thread & Sizing: Available in thread sizes from M12 x 1.5 through M63 x 1.5, covering a wide span of cable diameters across the series.
  • Durable Construction: Molded from Polyamide 6 with a CR/NBR seal for chemical resistance and long service life.
  • Even Clamping & Strain Relief: Integrated clamping membranes distribute pressure evenly around the cable for secure, cable-friendly strain relief.
  • All-in-One Pack: Cable gland and lock nut are sold together in a single pack, reducing separate ordering and storage.
  • Ingress Protection: Rated IP68 (5 bar, 30 min.) to IEC 60529 and EN 60529 for sealed, wet-location performance.
  • Enclosure Rating: Type 4X rating per UL 50E supports outdoor and washdown environments.
  • Operating Temperature: Rated for continuous duty across a -30 C to 100 C operating range.
  • Finish: RAL 7035 color for a consistent, professional appearance on the enclosure.

Certifications & Compliance

  • IP68 (5 bar, 30 min.) per IEC 60529
  • IP68 (5 bar, 30 min.) per EN 60529
  • Type 4X rating per UL 50E

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Typical Applications

  • Industrial Control Panel Cable Entry
  • Enclosure and Junction Box Sealing
  • Outdoor and Wet-Location Installations
  • Machine Building and Panel Building
  • Cable Management in Electrical Enclosures

Why Rittal?

Rittal engineers this Polyamide Cable Gland series with Polyamide 6 construction, a CR/NBR seal, and an IP68 (5 bar, 30 min.) rating to deliver dependable, code-compliant cable entry protection across thread sizes from M12 x 1.5 to M63 x 1.5. With a Type 4X rating per UL 50E and integrated clamping membranes for even strain relief, this gland series is built for reliable performance in demanding industrial and outdoor enclosure applications. The single-pack gland and lock nut set streamlines procurement for panel builders and electrical contractors alike.

Manufacturer Resources

Rittal Product Catalog

Product Specs

Product Color:
RAL 7035
Product Type:
Cable Gland
Department:
Electrical
Product Group:
Wiring Devices
Product Material:
Polyamide
Finish:
RAL 7035
Trade Size:
M12 x 1.5 - M63 x 1.5
Connection Type:
Threaded
Standards:
IEC 60529

Rittal 2411601 – Frequently Asked Questions

1) What thread sizes does the Rittal 24116 polyamide cable gland come in?
Eight metric sizes, all with 1.5 mm pitch: M12, M16, M20, M25, M32, M40, M50 and M63 x 1.5. Order by part number, 2411601 for M12 through 2411671 for M63. Pick the size that matches the metric knockout already in the enclosure wall, since the thread is what locates the gland.
2) Do I need to buy a lock nut separately for this Rittal cable gland?
No. Each Rittal 24116 gland ships with its matching lock nut in the same pack, so a single line item covers the entry. Nothing else is required to land the gland in a clean knockout of the right thread size.
3) Is this gland rated for outdoor and washdown enclosures?
Yes. The 24116 polyamide gland is IP68 rated at 5 bar for 30 minutes to IEC 60529 and EN 60529, and carries a Type 4X rating per UL 50E. That combination covers outdoor mounting, hose-down and washdown areas, and temporary submersion conditions.
4) Can I use these on a standard NPT knockout?
No. The 24116 is a metric threaded gland, M12 x 1.5 through M63 x 1.5, so it needs a metric entry hole or a metric-to-NPT adapter. For NPT-drilled panels, specify an NPT-threaded gland instead of trying to force this one.
5) Will a polyamide cable gland hold up in a hot panel or a cold outdoor cabinet?
The 24116 series is rated for continuous duty from -30 C to 100 C. That covers unheated outdoor cabinets in winter and the internal heat of a loaded control panel. The body is Polyamide 6 with a CR/NBR seal for chemical resistance. If your application runs hotter than 100 C or sits in direct flame exposure, use a metal gland instead.
6) Does this gland provide strain relief, or do I still need a separate clamp?
It clamps the cable itself. Integrated clamping membranes spread pressure evenly around the jacket, so the gland doubles as cable-friendly strain relief at the entry point and no separate clamp is needed for the entry.
7) What color are these Rittal glands and will they match my enclosure?
RAL 7035 light grey, the standard Rittal enclosure color, so the glands blend with the typical RAL 7035 panel or junction box rather than standing out like a black gland would.
How fast can I get the Rittal 2411601 delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit, reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Rittal 2411601 come with a warranty?
Absolutely. The Rittal 2411601 is backed by a manufacturer’s warranty. For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Rittal 2411601?
You can call, text, or email our expert support team for fast answers. We’re here to help with product selection, installation tips, and troubleshooting. Contact Us
Why buy the Rittal 2411601 from ZenSupply?
ZenSupply makes it easy to get the commercial door hardware you need—fast shipping, expert support, and rewards on every order. Our team is always ready to help you choose the right product for your project.
!
