Rittal 2562200 Plastic Gland Plate, Size 2, IP66 Rated

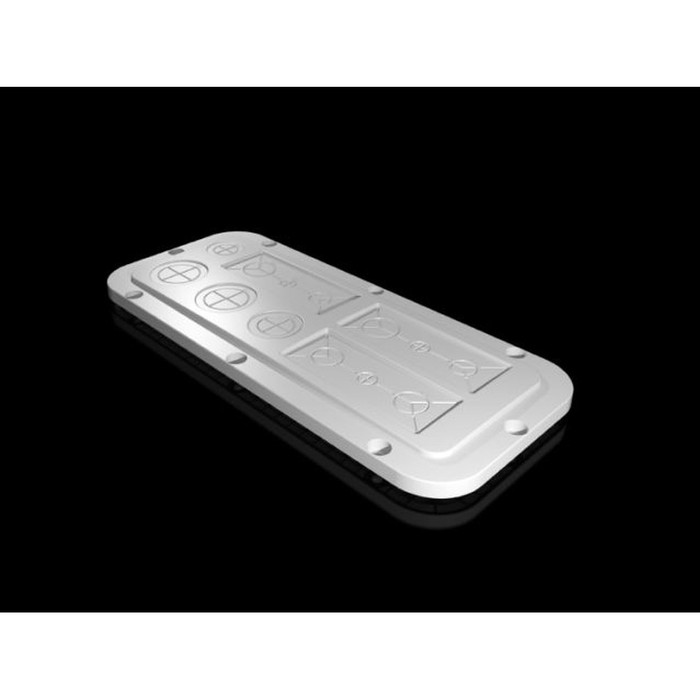

The Rittal 2562200 Plastic Gland Plate is a modular knockout panel designed for fast, clean cable gland installation on Rittal AX enclosures. Molded from plastic to UL 94-V0, the plate features pre-formed metric knockouts in M12, M16, M20, M25, and M32 sizes plus rectangular cut-outs with reinforcement frames that let cable glands be installed directly. When correctly installed, the assembly delivers IP66 protection to IEC 60 529 and EN 60 529, and this Size 2 gland plate ships as a single piece (1 pc.) for new enclosure builds and field retrofits.

Key Features

  • Metric Knockouts: Break-through knockouts in M12, M16, M20, M25, and M32 diameters (3, 2, 3, 3, and 2 knockouts respectively) for quick, clean cable gland entry.
  • Durable Construction: Molded plastic rated to UL 94-V0 for flame-retardant, long-lasting performance in panel and enclosure applications.
  • Modular Rectangular Cut-Outs: Three rectangular cut-outs with reinforcement frames allow direct, modular cable gland installation; each cut-out accepts 10 small sealing inserts.
  • IP66 Protection: Rated IP 66 to IEC 60 529 and EN 60 529 when correctly installed, plus a UL 50E Type 1, 12 enclosure rating.
  • Wide Operating Range: Rated for continuous use from -40 C to 80 C, suited to demanding indoor and outdoor panel environments.
  • RAL 7035 Finish: Standard RAL 7035 color to match Rittal AX enclosure systems.
  • Enclosure Fit: Sized for Rittal enclosure type AX; gland plate Size 2, with flange plate size assignment found on the respective housing.
  • Compact Packaging: Supplied 1 pc(s) per packaging unit at 0.332 kg.

Certifications & Compliance

  • IP 66 to IEC 60 529 (if correctly installed)
  • IP 66 to EN 60 529 (if correctly installed)
  • Material rated to UL 94-V0
  • UL 50E Type 1, 12

Technical Specifications

  • Number of rectangular cutouts: 3

Typical Applications

  • Cable Gland Entry on Rittal AX Enclosures
  • Panel Building and Industrial Enclosure Wiring
  • Modular Enclosure Retrofits and Upgrades
  • Outdoor and Wet-Location Enclosure Installations
  • Commercial and Industrial Electrical Cabinets

Why Rittal?

Rittal's 2562200 gland plate combines UL 94-V0 plastic construction with IP66 sealing performance to keep enclosure interiors protected once cable glands are correctly installed. Its modular knockout and rectangular cut-out design simplifies field installation while maintaining the RAL 7035 finish and Type AX fit professionals expect from Rittal enclosure accessories.

Manufacturer Resources

Rittal Product Catalog

Product Specs

Product Type:
Gland Plate & Entry Seal
Standards:
UL 94-V0
Configuration:
Size 2
Product Material:
Plastic
Product Color:
RAL 7035
Product Size:
M12 - M32
Department:
Electrical
Product Group:
Boxes & Enclosures
Product Subgroup:
Enclosure Accessories

Rittal 2562200 – Frequently Asked Questions

1) Can I use this gland plate on an outdoor enclosure?
Sealing is rated IP 66 to IEC 60 529 and EN 60 529 when correctly installed, and the plate carries a UL 50E Type 1, 12 rating. Operating range is -40 C to 80 C. The IP66 figure only holds if the knockouts you open are fully filled with properly torqued glands and the unused rectangular cut-outs stay sealed.
2) What size cable glands can I run through the Rittal 2562200?
Pre-formed metric knockouts cover M12 through M32: three M12, two M16, three M20, three M25 and two M32. You break through only the ones you need and thread the gland straight in. Anything larger than M32 has to go through one of the three rectangular cut-outs with a modular gland frame instead.
3) What are the rectangular cut-outs on the 2562200 for?
The three rectangular cut-outs have reinforcement frames so modular cable entry frames mount directly to the plate. Each cut-out takes 10 small sealing inserts, which is how you pass multiple pre-terminated or connectorized cables through one opening rather than drilling a hole per cable.
4) Is a plastic gland plate acceptable in an industrial panel, or do I need steel?
The 2562200 is molded plastic rated to UL 94-V0, so the material is flame retardant and it cuts and knocks out faster on site than sheet steel. Plastic also breaks the metallic path through the plate, which matters if you are not bonding entries. Where the panel spec calls for a metal gland plate for EMC shielding or screen bonding of the cable gland, use a steel plate instead.
5) Can I retrofit this gland plate into an AX enclosure already in service?
Yes. The 2562200 is supplied as a blank knockout plate for new builds and field retrofits, so you can pull the existing Size 2 plate, open only the metric knockouts your new cable schedule needs, and refit. Knockouts you do not open stay closed, which keeps the IP66 rating intact.
6) Will the color match my existing Rittal cabinets?
Finish is RAL 7035 light grey, the standard color across the Rittal AX enclosure range, so a replacement plate blends with cabinets already installed on the wall.
7) How many gland plates come in a pack of Rittal 2562200?
One piece per packaging unit, at 0.332 kg. If you are fitting several cabinets, order one 2562200 per gland plate opening.
