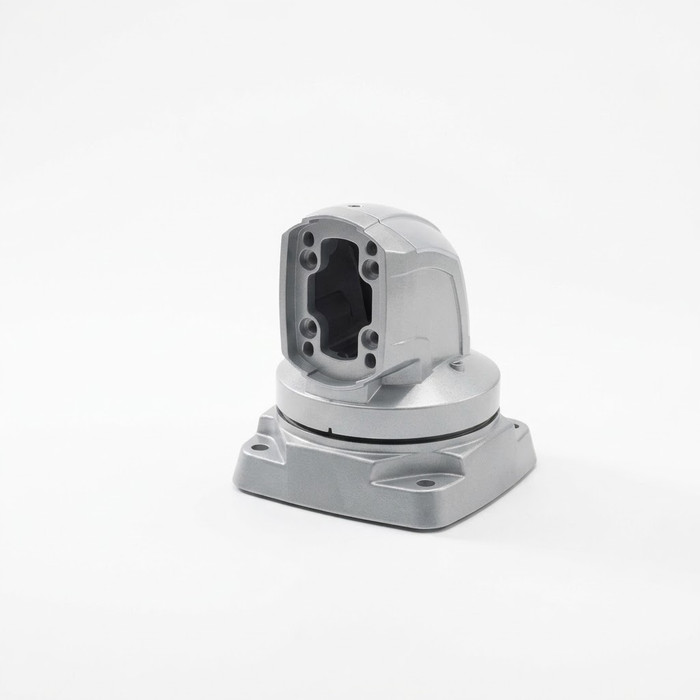

Rittal 6212700 CP 120 Top-Mounted Joint, Swivel Mount

Rittal 6212700 CP 120 Top-Mounted Joint, Swivel Mount

The Rittal 6212700 CP 120 Top-Mounted Joint is engineered for swivel mounting of the CP 120 support arm system on a horizontal surface, and is also suitable for ceiling mounting. This joint delivers a rotation angle/swivel area of approximately 330, with a removable cover that allows for easy cable routing through the support arm assembly. The rotation range can be restricted by inserting the screws and limit plate supplied with the joint, making it a versatile mounting solution for industrial workstation and control panel applications. Whether installed on a desktop, wall, or overhead ceiling surface, the CP 120 Top-Mounted Joint provides a stable pivot point for monitor arms, keyboard trays, and other equipment carried by the CP 120 support arm system.

Key Features

• Swivel Mounting: Enables top-mounted swivel mounting of the CP 120 support arm system on a horizontal surface, and is also suitable for ceiling mounting.
• Wide Rotation Range: Rotation angle/swivel area of approximately 330, with the rotation range limitable by inserting the screws and limit plate provided.
• Removable Cover: Removable cover design allows for easy cable routing through the joint and support arm assembly.
• Complete Mounting Hardware: Supply includes seals, screws for restricting rotation range, self-tapping screws for support section attachment, and adjusting screws.
• Precision Adjustment: Adjusting screws included with the joint allow installers to fine-tune fit and alignment during mounting.
• Compact Packaging: Supplied as 1 pc(s) per packaging unit, with a weight of 4.3 kg per packaging unit.

Technical Specifications

• Rotating/tilting: 1
• Rotation Angle/Swivel Area: Approximately 330
• Packaging Unit: 1 pc(s).
• Weight/Packaging Unit: 4.3 kg

Typical Applications

• Industrial Workstation Support Arm Systems
• Monitor, Keyboard, and Equipment Mounting
• Control Panel and HMI Mounting
• Ceiling and Horizontal Surface Mounting Installations
• Cable Management in Support Arm Assemblies

Why Rittal?

Rittal engineers the CP 120 top-mounted joint with precision hardware, including seals, adjusting screws, and rotation-limiting components, to deliver a secure and adaptable swivel connection for support arm systems. The removable cover simplifies cable routing during installation, helping industrial and electrical professionals achieve clean, organized workstation setups. With a wide rotation angle/swivel area of approximately 330 and hardware included for restricting the rotation range as needed, the CP 120 Top-Mounted Joint gives installers flexibility to configure the support arm system to the demands of the workspace. Choose the Rittal CP 120 Top-Mounted Joint for reliable, adjustable support arm mounting.
