Rittal 8017665 PB Series Pushb...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$38.14

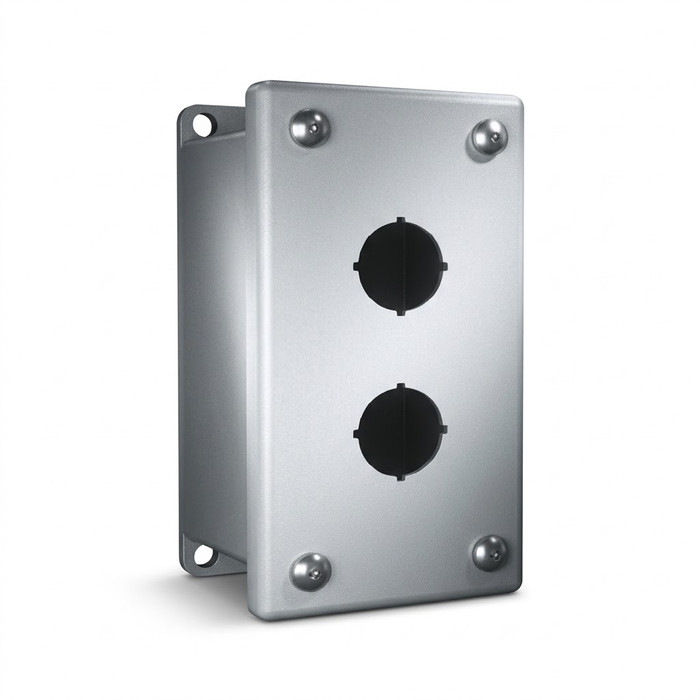

Rittal 8017665 PB Series Pushbutton Enclosure, Carbon Steel, NEMA 12/13/4

Rittal 8017665 PB Series Pushbutton Enclosure, Carbon Steel, NEMA 12/13/4

(No reviews yet) Write a Review

Model: 8017665

In Stock (leaves warehouse same day if ordered before 3pm ET)

$38.14
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Rittal 8017665 PB Series Pushbutton Enclosure, Carbon Steel, NEMA 12/13/4

The Rittal PB series pushbutton box is a NEMA rated carbon steel enclosure engineered for indoor use, housing pushbuttons, selector switches, and pilot lights on a 2-row by 1-column layout with 2 holes sized at 22.5 mm diameter. Rated NEMA 12, NEMA 13, and NEMA 4, this enclosure shields internal components from dirt, dust, sprayed water, oil, and coolants in demanding industrial and commercial environments. The housing and cover feature a dipcoat-primed, powder-coated textured finish in RAL 7035 for durable, long-term protection. Supplied with captive cover screws and wall mounting brackets, it is ready for straightforward field installation.

Key Features

  • Hole Configuration: 2 holes at 22.5 mm diameter, arranged in 2 rows and 1 column for mounting pushbuttons, selector switches, and pilot lights.
  • Durable Construction: Carbon steel housing and cover deliver rugged, long-lasting protection for indoor equipment.
  • NEMA Rated Protection: NEMA 12, NEMA 13, and NEMA 4 ratings guard against dirt, dust, sprayed water, oil, and coolants.
  • Protective Finish: Dipcoat-primed base with powder-coated, textured paint finish in RAL 7035 for corrosion resistance and a clean industrial appearance.
  • Simplified Installation: Includes captive cover screws that stay attached during service, plus wall mounting brackets for secure mounting.
  • Compact Packaging: Supplied as 1 pc(s) per package at 0.9 kg, ready for single-unit ordering or panel builds.

Certifications & Compliance

  • NEMA 12 Rated
  • NEMA 13 Rated
  • NEMA 4 Rated

Technical Specifications

  • Number of holes: 2
  • Number of rows: 2
  • Number of columns: 1

Typical Applications

  • Industrial Control Panels and Machine Stations
  • Pushbutton, Selector Switch, and Pilot Light Housings
  • Indoor Electrical Enclosures
  • Commercial and Industrial Facilities
  • Panelboard-Adjacent Operator Interfaces

Why Rittal?

Rittal builds the PB series pushbutton enclosure from carbon steel with a dipcoat-primed, powder-coated finish and NEMA 12, NEMA 13, and NEMA 4 protection, giving electrical professionals a durable housing for pushbuttons, selector switches, and pilot lights in demanding indoor settings. Captive cover screws and included wall mounting brackets support fast, code-compliant installation without hunting for extra hardware. It is a dependable choice for panel builders and facilities teams who need reliable operator-interface protection they can install once and trust for the long term.

Manufacturer Resources

Rittal Product Catalog

Product Specs

Product Type:
Pushbutton Enclosure
Product Finish:
Powder-Coated
Standards:
NEMA 12/13/4
Configuration:
2-Hole, 2 Rows x 1 Column
Product Material:
Carbon Steel
Product Color:
RAL 7035
Department:
Electrical
Product Group:
Boxes & Enclosures
Product Subgroup:
Enclosures

Rittal 8017665 – Frequently Asked Questions

1) How are the two holes arranged on the Rittal 8017665 box, side by side or stacked?
Stacked. The hole pattern is 2 rows by 1 column, so the two 22.5 mm openings sit one above the other on the cover. If you need them side by side, this is the wrong orientation for your layout.
2) Can a Rittal PB pushbutton enclosure be used where it gets hit with coolant or washdown spray?
The PB box carries NEMA 12, 13 and 4 ratings, so it is built to keep out dirt, dust, oil and coolant (12/13) and sprayed water (4). That covers machine-tool stations and hose-down areas indoors. It is specified for indoor use, so it is not the pick for outdoor exposure.
3) Does the Rittal 8017665 come with mounting hardware or do I need to order brackets separately?
Wall mounting brackets are supplied with the enclosure, along with captive cover screws that stay in the cover during service. Nothing extra to buy for a standard wall mount. The operators themselves (buttons, switches, pilot lights) are not included.
4) If I only need to house a single 22.5 mm pushbutton instead of two, what can I use instead of the Rittal 8017665?
The Rittal 8017665 PB enclosure is drilled for 2 holes at 22.5 mm diameter in a 2-row by 1-column layout, so it is sized for two operators. For a single device, the Eaton M22-I one-element surface mounting enclosure is also a 22.5 mm non-illuminated station and holds one element. Both accept standard 22.5 mm pushbuttons and selector switches; the difference is element count and the Rittal's carbon steel housing in a powder-coated RAL 7035 finish.
5) What color and finish is the Rittal PB pushbutton box, and will it match our other Rittal panels?
Carbon steel housing and cover, dipcoat primed and powder coated with a textured finish in RAL 7035 light grey. RAL 7035 is Rittal's standard enclosure color, so it matches the usual run of Rittal panels and wall boxes on a plant floor.
6) Steel or stainless for a pushbutton station in a wet or food-contact area?
The Rittal 8017665 is carbon steel with a powder-coated finish, which holds up in general industrial indoor use but is not the choice for corrosive washdown or food-processing areas. For that, a stainless option such as the Eaton 10250T heavy-duty watertight/oiltight stainless steel enclosure is the better fit. Note the Eaton 10250T is a 30.5 mm device enclosure, so your operators have to match.
7) Is the Rittal 8017665 suitable for an outdoor machine station?
No. The PB series box is specified for indoor use. Its NEMA 4 rating covers sprayed water, but outdoor service also calls for an enclosure rated for rain, sleet and ice (NEMA 3R/4X territory), so pick a different housing for exterior mounting.
8) For a washdown or corrosive area, is the Rittal 8017665 the right pushbutton box or should I move to stainless?
The Rittal 8017665 is rated NEMA 12, 13 and 4, which covers dirt, dust, sprayed water, oil and coolants, and its carbon steel body carries a dipcoat primer plus powder-coated textured finish. Where the chemistry or washdown calls for bare corrosion-resistant metal rather than a coated one, the Eaton 10250TN watertight/oiltight station is stainless steel in the 30.5 mm operator size. Choose by operator diameter as well as material, since the Rittal takes 22.5 mm devices.
9) Will an Eaton M22 enclosure take the same devices as the Rittal 8017665?
Both are built around the 22.5 mm operator standard, so 22.5 mm pushbuttons, selector switches and pilot lights are the common denominator. The Eaton M22-I is a one-element non-illuminated surface mounting enclosure, while the Rittal 8017665 PB box provides two 22.5 mm holes in a 2-row by 1-column arrangement and ships with captive cover screws and wall mounting brackets. Confirm device count and depth before swapping one for the other.
10) Do I have to remove the cover screws completely to open the Rittal PB enclosure?
No. The cover screws are captive, meaning they stay with the cover when you back them out. For a technician troubleshooting an e-stop or selector switch over a machine, that means no dropped screws into the equipment below.
