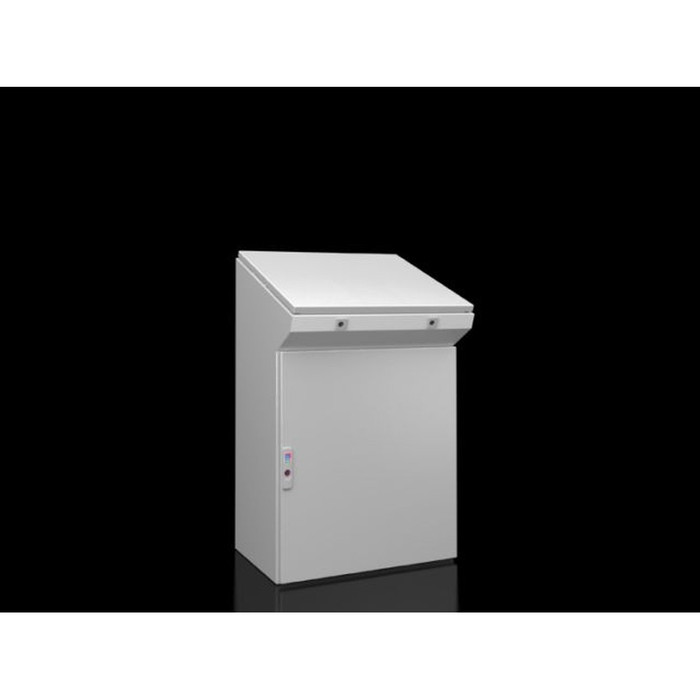

Rittal 6746600 TP Series Operator Console Enclosure, NEMA 12

Rittal 6746600 TP Series Operator Console Enclosure, NEMA 12

(No reviews yet) Write a Review

Model: 6746600

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,383.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Rittal 6746600 TP Series Operator Console Enclosure, NEMA 12

The Rittal 6746600 TP Series Operator Console Enclosure is a one-piece console built for operating and monitoring applications, featuring a large mounting plate and a high IP 55 protection category. Rated NEMA 12, this console includes a mounting plate measuring 530 mm x 900 mm along with a depth of 400 mm at the bottom and 500 mm at the top. The AX lock plate delivers a uniform appearance across the enclosure, while two-part gland plates are included with the supply for simple, organized cable routing.

Key Features

  • Mounting Plate: Large 530 mm x 900 mm mounting plate provides ample room for operating and monitoring equipment.
  • Console Depth: 400 mm depth at the bottom and 500 mm depth at the top accommodate equipment installation and cable clearance.
  • Durable Construction: One-piece housing with solid back and sides, plus base plates, for a rigid, uniform enclosure.
  • Door Configuration: Single door at the front with a locking rod for secure access.
  • AX Lock Plate: Ensures a consistent, uniform appearance across the console front.
  • Cable Routing: Two-part gland plates included with supply for simple, organized cable entry.
  • Hinged Rear Cover: Two stays with automatic locking; cover unlatches automatically on the left and manually on the right.
  • Finish: RAL 7035 color finish for a clean, professional appearance.

Certifications & Compliance

  • IP 55 Rated per IEC 60 529 and EN 60 529
  • NEMA 12 Protection Category
  • IK08 Impact Protection Rating

Technical Specifications

  • Number of doors: 1
  • Protection Category (IP to IEC 60 529): IP 55
  • Protection Category (IP to EN 60 529): IP 55
  • Protection Category (NEMA): NEMA 12
  • IK Code: IK08
  • Color: RAL 7035
  • Depth (Bottom): 400 mm
  • Depth (Top): 500 mm
  • Dimensions of Mounting Plate (W x H): 530 mm x 900 mm
  • Weight/Packaging Unit: 51.6 kg
  • Packaging Unit: 1 pc(s)

Typical Applications

  • Industrial Machine Operator Consoles
  • HMI and Control Panel Enclosures
  • Indoor Industrial and Commercial Electrical Installations
  • Equipment Monitoring and Control Stations
  • Control Cabinet and Panelboard Systems

Why Rittal?

Rittal engineers the 6746600 TP Series console with a one-piece housing, solid back and sides, and an AX lock plate for a uniform, professional appearance. With IP 55 protection to IEC 60 529 and EN 60 529, a NEMA 12 rating, and an IK08 impact rating, this console is built for reliable, code-compliant performance in demanding operating and monitoring applications.

Manufacturer Resources

Rittal Product Catalog

Product Specs

Product Type:
Operator Console Enclosure
Product Finish:
RAL 7035
Standards:
NEMA 12
Configuration:
1 Door
Department:
Electrical
Product Group:
Boxes & Enclosures
Product Subgroup:
Enclosures

Rittal 6746600 – Frequently Asked Questions

1) Is the Rittal 6746600 console rated for washdown or outdoor use?
No. The 6746600 TP Series console is IP 55 to IEC 60 529 and EN 60 529, NEMA 12. That covers dust and dripping water indoors, not hose-down or weather exposure. For wet-location washdown you need a NEMA 4X enclosure instead; NEMA 12 should stay in indoor industrial and commercial installations.
2) How much usable panel space does the Rittal 6746600 give me for HMI and control gear?
The mounting plate measures 530 mm x 900 mm, which is the space you have for operating and monitoring equipment. Behind it the console is 400 mm deep at the bottom and 500 mm deep at the top, so deeper-bodied components and cable bends clear at the upper section.
3) Does the 6746600 console come with gland plates, or do I have to order cable entries separately?
Two-part gland plates ship with the console, so cable entry is handled out of the box. They split, which lets you drop pre-terminated cable in without pulling connectors off.
4) How do you get at the wiring in the back of this Rittal operator console?
Rear access is through a hinged cover on two stays with automatic locking. It unlatches automatically on the left and manually on the right. The front has a single door with a locking rod, so the operator face stays secured while service work happens from behind.
5) Will the 6746600 take knocks on a plant floor?
It carries an IK08 impact rating, and the housing is one-piece with solid back and sides plus base plates, so the shell is rigid rather than panelled together. That is the construction you want where carts and operators are working close to the console.
6) What color does the Rittal 6746600 console ship in, and will it match our other Rittal cabinets?
Finish is RAL 7035, the light grey Rittal uses across its enclosure lines, so it sits alongside existing Rittal control cabinets without repainting. The AX lock plate keeps the console front uniform with that same look.
7) What is the exact Rittal part number for this NEMA 12 TP console?
Order it as Rittal 6746600, the TP Series operator console with one door. That is the full manufacturer part number, no suffix to specify.
