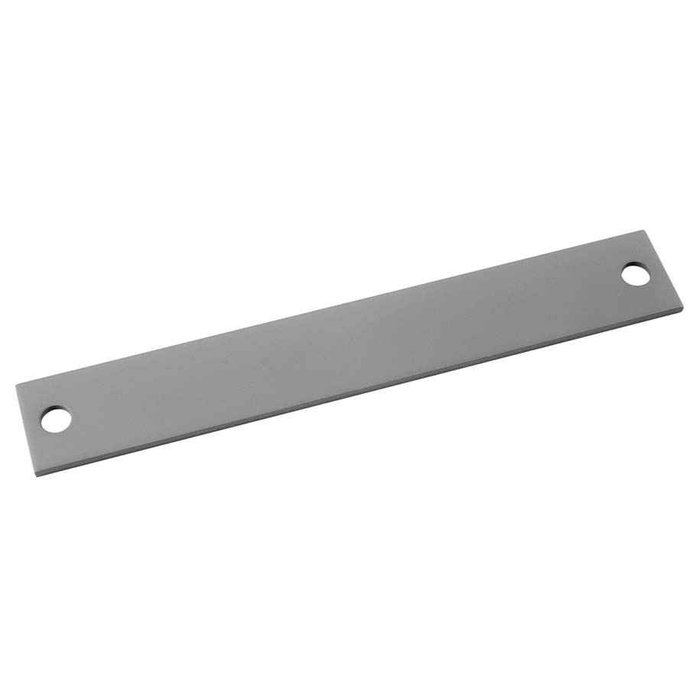

ROCKWOOD DF86 Door Edge Filler Plate
Material: Steel;
Finishes: Prime coat;
Fastner: 2 ea. #12 - 24 x 1/2" FH MS;
Other: For gov. 86 mortise lock face.
ROCKWOOD OVERVIEW
Rockwood products are normally used on all types of institutional buildings, offices, retail, educational, detention, sports facilities, hotel and restaurant, and finer residences.
ENVIRONMENTAL MANAGEMENT
ASSA ABLOY is commited to protecting the quality of the environment as well as the health and safety of its employees, customers, and the community. Please see our Environmental Health and Safety Policy for details on how we are dedicated to this commitment.
RESOURCES & DOWNLOADS
Manufacturer Resources
Product Specs
- Subcategory:
- Auxiliary Hardware
- Product Group:
- Door Trim and Accessories
- Fasteners:
- 2 ea. #12 - 24 x 1/2" FH MS
- Product Subgroup:
- Filler Plates, Lock Adapters and Wrap Arounds
- Product Type:
- Filler Plates
- Commercial/Residential:
- Commercial
- Product Model:
- DF86
- Product Category:
- Door Trim and Accessories
- Product Substrate:
- Steel
- Department:
- Door Hardware
Rockwood ROC-DF86 – Frequently Asked Questions
1) Does the Rockwood DF86 come with screws, or do I need to order fasteners separately?
Screws are in the box: two #12-24 x 1/2 inch flat head machine screws. Machine screws, not wood screws, so the plate is meant to thread into a tapped edge or lock case, not bite into a wood door edge. Nothing else is needed to hang it.
2) What finish does the Rockwood DF86 edge filler plate ship in, and can it be painted?
Prime coat only, on a steel plate. That's an undercoat, not a finish, so the DF86 is meant to be painted to match the door once it's installed. If you need a plate that arrives in a finish to match satin chrome or bronze hardware on the rest of the opening, this one is not it.
3) Is the Rockwood DF86 rated for commercial or residential doors?
Commercial. Rockwood specs the DF86 for commercial openings, and the steel construction with machine screw fastening is aimed at institutional and office doors rather than residential interior slabs. It'll work anywhere the prep matches, but it's built for traffic.
4) How many DF86 plates do I need for a pair of doors?
One per lock prep being filled. A pair of doors with an 86 mortise prep in each leaf takes two plates, each with its own pair of #12-24 x 1/2 inch flat head machine screws included. Property managers standardizing across a floor should count openings, not doors, since only the leaf carrying the lock is prepped.
How fast can I get the Rockwood ROC-DF86 delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the
continental
U.S.
Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit,
reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Rockwood ROC-DF86 come with a warranty?
Absolutely. The Rockwood ROC-DF86 is backed by a manufacturer’s warranty.
For full warranty terms, check the product documentation or Contact Us.
