ROFU 1460 Fail Secure Electric...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$450.00
$296.05

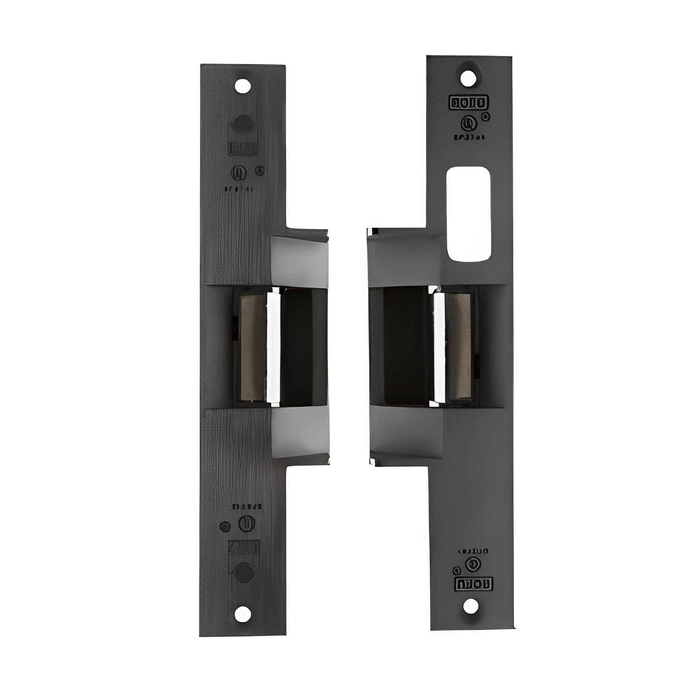

ROFU 1460 Fail Secure Electric Strike, Hollow Metal/Aluminum/Wood Frame, Faceplate Size 1-3/8" x 9"

ROFU 1460 Fail Secure Electric Strike, Hollow Metal/Aluminum/Wood Frame, Faceplate Size 1-3/8" x 9"

(No reviews yet) Write a Review

Model: 1460-08 US10B
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$450.00
$296.05
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

ROFU 1460

Fail Secure Electric Strike, Hollow Metal/Aluminum/Wood Frame, Faceplate Size 1-3/8" x 9"

Technical Specifications:

  • Faceplate size 1-3/8" x 9"
  • 1700 LB (765 KG)
  • Stainless Steel, corrosion-resistant faceplate, suitable for hollow metal/aluminum or wood frames
  • Keeper depth - 5/8" maximum latch projection possible with 1/8" door/frame clearance - 3/4" keeper opening starts at center line
  • Fullly tamper proof horizontal adjustment
  • 11/2" jamb modification
  • Reversible non-handed (without deadbolt)
  • Limited warranty - 36 months

Optional Features:

  • Cutout for deadbolt (Specify 1460B-LH or 1460B-RH with required voltage)

ROFU Product Catalog



Manufacturer Resources

Product Specs

Product Group:
Electronic Access Controls
Product Subgroup:
Electric Strikes
Product Type:
Electric Strikes
Subcategory:
Electric Strikes
Commercial/Residential:
Commercial
Electronic:
Yes
Fail-safe / Fail-secure:
Fail-Secure
Face Plate:
9"
Product Category:
Electronic Access Controls
Department:
Door Hardware

ROFU 1460-08 US10B – Frequently Asked Questions

1) Will the ROFU 1460 electric strike work with my latchbolt projection and door clearance?
The 1460 keeper takes up to a 5/8 inch maximum latch projection with 1/8 inch door-to-frame clearance, and the 3/4 inch keeper opening starts at the center line. If your lock throws more than 5/8 inch into the frame, or your gap is larger than 1/8 inch, this is the wrong keeper depth for the opening.
2) Is the ROFU 1460 handed, or can one unit work on a left or right hand door?
The standard 1460 is reversible and non-handed, so one unit covers either hand. That changes if you need the deadbolt cutout version: the 1460B is handed and you order it as 1460B-LH or 1460B-RH with the voltage you need.
3) Does the ROFU 1460 stay locked or unlocked when the power drops?
Fail secure. Cut power and the strike stays locked, so the door remains secured and people exit using the lever or exit device. If your opening needs to release on a power failure or fire alarm drop, a fail secure strike is the wrong choice, look at a field reversible unit such as the Hager 2925 or 2928 instead.
4) What voltages does the ROFU 1460 come in, and which one do I order?
Three voltage builds: 8-16 VAC / 3-6 VDC, 12 VAC/VDC, and 24 VAC/VDC. The voltage is fixed at the factory, not field selectable, so match it to your power supply or transformer before ordering. The 8-16 VAC version is the one to use on a doorbell style AC transformer.
5) What is the closest equivalent to the ROFU 1460 electric strike if I need a fire-rated strike?
The ROFU 1460 is a fail-secure electric strike with a 1-3/8 inch x 9 inch stainless steel faceplate for hollow metal, aluminum, or wood frames. If the opening is a rated door assembly and you need a fire-rated strike, the Trine 004 is fire rated, fail secure, takes up to a 5/8 inch throw, and uses a 6-1/4 inch x 1-3/8 inch faceplate - the same 1-3/8 inch faceplate width as the 1460, in a shorter length. The Von Duprin 6210 is another fail-secure, UL 10C fire-rated option, built for mortise locks and Grade 1 heavy duty.
6) I need a Grade 1 electric strike on the spec - does the ROFU 1460 meet that, or is there an alternative?
If the submittal calls out an ANSI/BHMA Grade 1 strike by name, specify a strike that carries it. The Alarm Controls AES-100 is a Grade 1 heavy duty strike, the Von Duprin 6400 is a Grade 1 modular fail-secure strike for mortise or cylindrical locks with a 3-hour UL 10C rating in satin stainless steel, and the Securitron MUNL mortise UnLatch strike is Grade 1 and fire rated. The ROFU 1460 remains a fail-secure option for hollow metal, aluminum, or wood frames where Grade 1 is not a stated requirement.
7) Can the ROFU 1460 be used on a rim exit device or surface vertical rod door?
The ROFU 1460 is built around a keeper that accepts up to 5/8 inch latch projection with a 3/4 inch keeper opening, which suits latchbolt hardware rather than exit device rod or Pullman latches. For a rim exit device, the Hager 2945 is a fire-rated rim exit strike with field selectable fail safe/fail secure and latchbolt monitoring, and the SDC 30-4 is a rim mount strike for a 3/4 inch Pullman latchbolt in stainless steel. For surface vertical rods, the HES Folger Adam 310-4-2 is a complete Grade 1 strike pac.
8) How strong is the ROFU 1460 strike for a high traffic commercial entrance?
It is rated at 1700 lb (765 kg) static strength and is built as a commercial unit, with a stainless steel corrosion resistant faceplate and fully tamper proof horizontal adjustment so the keeper alignment cannot be tweaked from outside the frame.
9) Does the ROFU 1460 report whether the door latched, or do I need a different strike?
The ROFU 1460 is a fail-secure strike with tamper-proof horizontal adjustment; it is specified by faceplate, keeper depth, and voltage rather than by monitoring. Where the access control system needs a latch status input, the Dortronics 3300 Series includes a latch bolt sensing switch and runs 12/24VDC, the Hager 2945 includes a latchbolt monitor, and the Camden CX-ED1799L-8 is a dual monitor Grade 1 strike.
10) I have to cover several different jamb preps across one building - is the ROFU 1460 the right standardization choice?
The ROFU 1460 comes in one faceplate size, 1-3/8 inch by 9 inch, in oil rubbed bronze, bright brass, or satin stainless steel, with 8-16 VAC/3-6 VDC, 12 VAC/VDC, or 24 VAC/VDC coils. If the preps vary door to door, a universal-style strike shipped with multiple faceplates covers more of them: the Camden CX-ED1689L-4 is a fire-rated low profile universal strike supplied with four faceplates, and the CX-ED1799L-8 is a fire-rated Grade 1 dual monitor strike supplied with eight.
11) What is the difference between the ROFU 1460 and the SDC 15 Series strike?
Both take a 5/8 inch latchbolt. The ROFU 1460 is fail secure with a 1-3/8 inch by 9 inch stainless faceplate for hollow metal, aluminum, or wood frames, offered in 8-16 VAC/3-6 VDC, 12 VAC/VDC, and 24 VAC/VDC, and is reversible non-handed without the deadbolt cutout. The SDC 15 Series is a value 5/8 inch latchbolt strike with 12/24 VDC operation. For a 1/2 inch latchbolt instead, SDC offers the 25 Series, and the SDC 45F is a fire-rated 5/8 inch latchbolt strike with a radius corner faceplate.
12) Is the ROFU 1460 the right choice for a pair of doors with no mullion?
The ROFU 1460 is a single strike with a 1-3/8 inch by 9 inch faceplate and a 3/4 inch keeper opening starting at the center line, sized for one leaf. For a double door application, the Rockwood electric strike is built for double doors with a 3/4 keeper and is Grade 1 and fire rated in the 310-1 Series.
13) What finishes does the ROFU 1460 strike come in to match the rest of my door hardware?
Three: 630 satin stainless steel, 605 bright brass, and 613 oil rubbed bronze. Each is available across all three voltage builds, so finish and power spec are independent choices.
How fast can I get the ROFU 1460-08 US10B delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit, reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the ROFU 1460-08 US10B come with a warranty?
Absolutely. The ROFU 1460-08 US10B is backed by a manufacturer’s warranty. For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the ROFU 1460-08 US10B?
You can call, text, or email our expert support team for fast answers. We’re here to help with product selection, installation tips, and troubleshooting. Contact Us
Why buy the ROFU 1460-08 US10B from ZenSupply?
ZenSupply makes it easy to get the commercial door hardware you need—fast shipping, expert support, and rewards on every order. Our team is always ready to help you choose the right product for your project.
!
