ROFU Handle & Full Length Locks Series

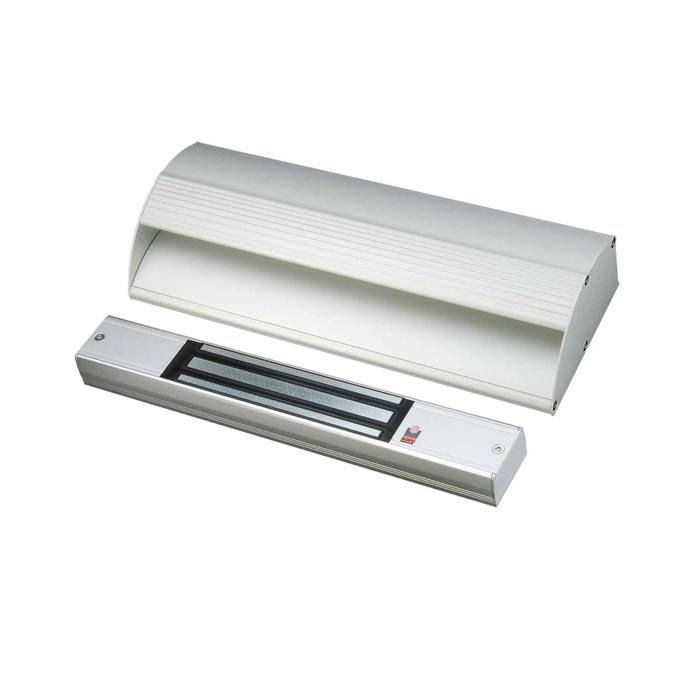

The 8106HD Electromagnets feature a new design which encloses the armature plate in a door handle. Single (8106HD-B) and double magnets (8106HD-2-B) options are available, with a holding force of 600 LB per single magnet.
Technical Specifications:
- Stylish hidden magnet design - safe and secure
- Dual voltage 12/24 VDC field selectable
- Durable, high quality aluminum anodized finish
- Fail safe: releases instantly when power is disconnected. No residual magnetism
- No residual magnetism
- For inswing doors only
- Bond senor (B): built-in hall effects sensors, detecting magnetic field strength from door position and voltage inout
- Dimensions:
- 8106HD-B - Magnet: 12 3/4” x 1 1/8“ x 1 7/8”
Armature: 13 1/8” x 2 3/16” x 4 7/8” - Holding Force - 600 Lb
- 8106HD-2-B - Magnet: 97 13/16 x 1 1/8“ x 1 7/8”
Armature: 98 9/16” x 2 3/16 ” x 4 7/8” - Holding Force - 2X 600 Lb
- 8106HD-B - Magnet: 12 3/4” x 1 1/8“ x 1 7/8”
MODELS 8106HD-B 8106HD-2-B
HOLDING 600 LB 600 LB x2
VOLTAGE 12/24 VDC
CURRENT 500 mA/12 VDC , 250 mA/24 VDC
DIMENSIONS
8106HD-B - Magnet: 12 3/4” x 1 1/8“ x 1 7/8”
Armature: 13 1/8” x 2 3/16” x 4 7/8”
8106HD-2-B - Magnet: 97 13/16 x 1 1/8“ x 1 7/8”
Armature: 98 9/16” x 2 3/16 ” x 4 7/8
Manufacturer Resources
Product Specs
- Category:
- Electronic Access Controls
- Product Group:
- Electronic Access Controls
- Product Subgroup:
- Electromagnetic Locks
- Product Type:
- Maglocks
- Subcategory:
- Electromagnetic Locks
- Commercial/Residential:
- Commercial
- Battery Operated:
- No
- Electronic:
- Yes
- Model:
- 8106
- Mounting:
- Mortise
- Fail-Safe/Fail-Secure:
- Fail-Safe
- Holding Force:
- 600 LB
