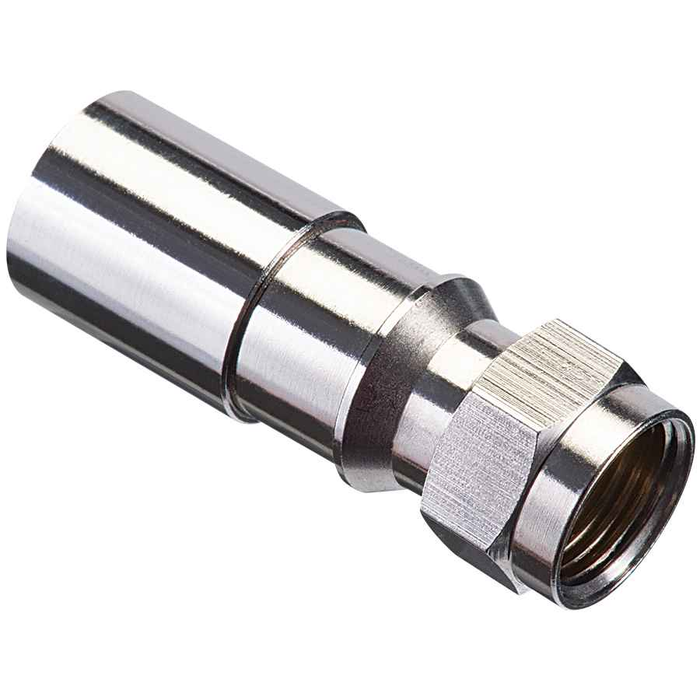

Ideal Industries F Compression Connector RG-6 Coax Cable 75 Ohm WeatherProof Brass Nickel Plated 10 Pack

Ideal Industries RTQ XR RG-6 F Compression Connector

Professional-Grade Coaxial Cable Termination Solution

The Ideal Industries RTQ XR RG-6 F Compression Connector delivers professional-grade coaxial cable termination performance for cable and satellite TV installations. This all-brass construction connector features WeatherProof technology with internal O-ring and patented back seal designed for telecommunications professionals, cable installers, and satellite technicians, providing the reliable performance and industry-leading quality that coaxial installation professionals demand.

Professional Features & Benefits

Universal Cable Compatibility

• RTQ XR Design - Accepts Regular/Tri/Quad shield and plenum cables in single connector eliminating need for cable-specific connectors
• RG-6 Cable Support - Compatible with RG-6, RG-6 Quad, RG-6 Plenum, and RG-6 Plenum Quad coaxial cables
• 75 Ohm Optimization - Designed for optimal performance on 75Ω coaxial cables ensuring signal integrity
• Industry Standard Length - 21mm compressed length works with non-IDEAL compression tools for versatile installation

WeatherProof Protection

• Moisture Prevention - Internal O-ring and patented back seal prevent moisture migration for indoor/outdoor applications
• Superior Cable Retention - Greater than 40 pounds cable retention on all models ensuring secure long-term connections
• Brass Construction - All brass bodies with nickel plating provide corrosion resistance and durability

Performance Specifications

• Frequency Range - 0 MHz to 3 GHz supporting modern cable and satellite applications
• Return Loss Performance - Greater than 30dB up to 3 GHz ensuring excellent signal quality

Technical Specifications

Connector Model: 6FRTQXR, Thread: 3/8-32, Nut Diameter: 7/16 inch, Center Conductor Range: All standard sizes, Outer Jacket Diameter Range: 0.226 to 0.310 inches, Dielectric Diameter Range: 0.168 to 0.183 inches, Frequency Range: 0 MHz to 3 GHz, Return Loss: Greater than 30dB up to 3 GHz, Cable Retention: Greater than 40 pounds, Construction: All brass with nickel plated bodies, Package Quantity: 10 connectors per pack

Installation & Setup

1. Prepare RG-6 coax with 1/4 inch by 1/4 inch strip and fold back braiding (for RG-6 Quad remove outer foil and fold back both braiding layers)
2. Slide connector onto cable until white dielectric is flush with bottom of nut ensuring proper seating
3. Place connector in IDEAL compression tool with standard F compression length setting
4. Compress connector using recommended compression tool - body will compress and permanently secure coax
5. Verify proper compression and cable retention before final installation
6. Attach connector to device ensuring proper thread engagement and weatherproof seal

Professional Applications

Ideal for:

• Cable Television Installation - Residential and commercial cable TV system terminations with superior signal integrity
• Satellite TV Systems - Direct broadcast satellite installations requiring weatherproof outdoor connections
• CATV Distribution - Community antenna television systems and cable distribution networks
• Security Camera Systems - Coaxial video surveillance installations requiring reliable outdoor connections
• Telecommunications Infrastructure - Broadband and data transmission over coaxial cable systems
• Commercial AV Systems - Professional audio/video installations in commercial and institutional settings
• Residential Wiring - Home theater and entertainment system coaxial connections
• Industrial Communications - Coaxial data transmission in industrial and manufacturing environments

RTQ XR Technology Advantage

Ideal Industries RTQ XR technology eliminates the need for multiple cable-specific connectors by accepting Regular, Tri-shield, and Quad-shield cables in a single universal connector. This innovative design reduces inventory requirements while ensuring optimal performance across all RG-6 cable types, combined with WeatherProof sealing technology that prevents moisture migration in both indoor and outdoor installations.

Why Choose Ideal Industries Quality?

Ideal Industries commitment to professional-grade coaxial connectivity solutions includes precision-engineered brass construction, nickel plating for corrosion resistance, and WeatherProof technology for reliable long-term performance. With greater than 40 pounds cable retention and superior return loss performance up to 3 GHz, these connectors meet the demanding requirements of professional cable installers, satellite technicians, and telecommunications professionals.
