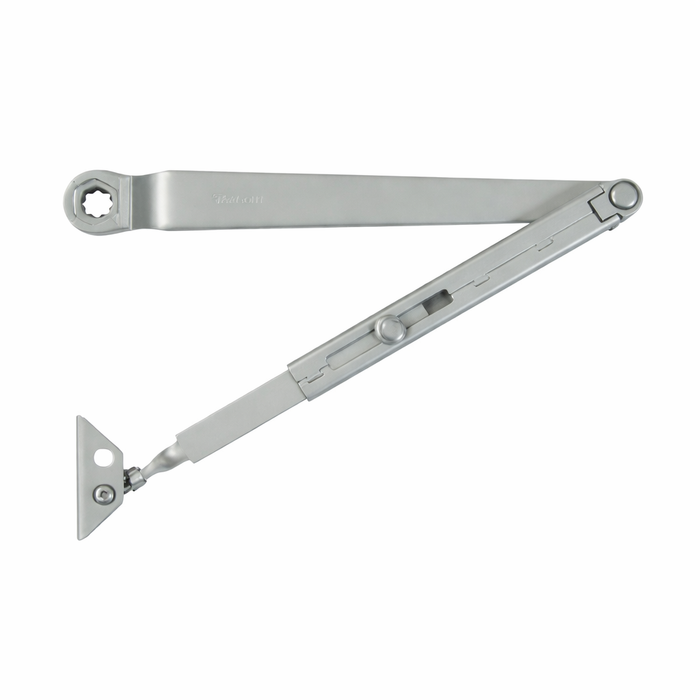

Sargent 25-RO Door Closer Standard Wrought Arm Assembly for 1431 Series

Sargent 25-RO Door Closer Standard Wrought Arm Assembly for 1431 Series

(No reviews yet) Write a Review

Model: 25-RO-EN
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$186.62
$146.68
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sargent Standard Wrought Arm Assembly for 1431 Series Door Closers with 120-180 Degree Opening Range

Professional Door Closer Arm Assembly

The Sargent 25-RO is a standard wrought arm assembly specifically designed for use with 1431 Series door closers. This non-handed arm assembly accommodates up to 2" arm reveal and permits 120 degrees door opening with standard mounting, or 180 degrees door opening with alternate mounting or corner bracket installation. The assembly meets ANSI/BHMA standards for professional door control applications and includes complete installation components.

Professional Features & Benefits

  • Flexible Door Opening Range: Permits 120 degrees door opening with standard mounting and 180 degrees with alternate mounting or corner bracket for versatile installation options.
  • Arm Reveal Compatibility: Accommodates up to 2" arm reveal for proper door closer positioning and operation.
  • Complete Assembly Kit: Includes 63-3396 main arm and link assembly, 63-2216 foot assembly, and 64-2407 screw pack for complete installation.
  • Non-Handed Design: Universal configuration works with both left-hand and right-hand door applications for installation flexibility.
  • Series Compatibility: Specifically engineered for 1431 Series door closers ensuring proper fit and function.
  • Standard Compliance: Meets ANSI/BHMA standards for commercial door control applications.
  • Versatile Mounting Options: Suitable for standard and top jamb applications with multiple mounting configurations available.
  • Compatible Components: Works with related components including 63-3396 main arm assembly, 63-2216 foot assembly, and 64-2407 screw pack for extended configurations.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Sargent Quality?

Sargent door closer components deliver professional-grade reliability with ANSI/BHMA compliant construction designed for demanding commercial applications. The complete assembly kit includes all necessary components for proper installation and operation. Engineered for demanding commercial applications where dependable door control performance is essential.

Product Specs

Grade:
Grade 1
Product Type:
Door Closer Arms
Duty Level:
Heavy Duty
Product Group:
Door Controls
Product Subgroup:
Parts and Accessories
Subcategory:
Parts and Accessories
Commercial/Residential:
Commercial
Product Category:
Door Controls
Department:
Door Hardware

Sargent 25-RO-EN – Frequently Asked Questions

1) Will the Sargent 25-RO arm fit any door closer, or only the 1431 Series?
The 25-RO wrought arm assembly is built for Sargent 1431 Series door closers only. It is not a universal replacement arm, so if the closer body on the door is a different series or another brand, this arm won't mount to it. Check the stamping on the closer body before ordering.
2) Do I need to order a left-hand or right-hand version of the Sargent 25-RO closer arm?
Neither. The 25-RO is non-handed, so the same assembly works on left-hand and right-hand doors. One part number covers both swings, which is useful if you are stocking spares for a building with openings going both directions.
3) How far will a door open with the Sargent 25-RO arm installed?
With standard mounting the 25-RO permits 120 degrees of door opening. If you need a full 180 degrees, use the alternate mounting position or a corner bracket installation. That decision is made at install time based on how much clear swing the opening has.
4) My door frame has a reveal. Will the Sargent 25-RO still work?
The 25-RO accommodates arm reveal up to 2 inches. Measure from the face of the door to the stop face of the frame; if that dimension is 2 inches or less, this arm covers it. Deeper reveals need a different arm or bracket arrangement.
5) Does the Sargent 25-RO give me hold-open, or is it a plain closing arm?
It is a standard (regular) arm with no hold-open function. The door closes every time. If the application calls for the door to stay propped at a set angle, you want a hold-open arm instead, such as the LCN 1250-3049/PA with adjustable hold open or the LCN 4010-3049 hold open arm with adjustable elbow, matched to whichever closer body is on your door.
6) I need the door to stay open on its own - is the Sargent 25-RO the right arm?
No. The Sargent 25-RO is a standard wrought arm assembly; it controls the door through its swing but does not hold it open. For a hold-open function you would look at a hold-open arm such as the LCN 1250-3049/PA, a non-handed hold open arm assembly with a parallel arm shoe and adjustable hold open, the LCN 4010-3049 hold open arm with an adjustable elbow, or the Falcon SC70A-3049/PA hold open arm with PA bracket. Each of those is tied to its own closer series, so match the arm to the closer body already on the door.
7) Can I use the Sargent 25-RO as a parallel arm with a dead stop to protect the wall?
The Sargent 25-RO is a standard wrought arm for 1431 Series closers, suitable for standard and top jamb applications; it is not a dead stop parallel arm. Where the opening needs the arm itself to stop the door, the Falcon SC60A-3049DS is a hold-open dead stop parallel arm assembly for the SC60A Series. If you only need parallel arm mounting without the stop, the LCN 1260-3077 is a regular arm supplied with a parallel arm bracket for the 1260 Series. All three mount to different closer bodies, so the closer on the door decides which one you can buy.
8) What comes in the Sargent 25-RO arm kit, or do I have to buy the hardware separately?
The kit is complete for a standard install. It contains the 63-3396 main arm and link assembly, the 63-2216 foot assembly, and the 64-2407 screw pack. If you are doing a corner bracket install for 180 degree swing, the bracket is a separate item.
9) Is the Sargent 25-RO arm heavy enough for a high-traffic commercial entrance?
It is a Grade 1, heavy duty commercial component, which is the top ANSI/BHMA duty tier for door hardware. That suits school corridors, hospital doors, office lobbies and other openings cycling constantly. It is not intended as a residential-grade part.
10) I need a dead stop so the door doesn't hit the wall. Is the 25-RO the right arm?
No. The 25-RO is a standard arm with no stop built in, so it will not limit the swing mechanically. For a parallel arm with a built-in dead stop, look at the Falcon SC60A-3049DS hold-open dead stop parallel arm, which fits SC60A Series closers. Arms are closer-specific, so the dead stop arm has to match the closer body you already have.
11) Can I mount the Sargent 25-RO top jamb instead of on the door face?
Yes, the 25-RO covers standard and top jamb applications, with several mounting configurations available. Which one you use depends on the frame condition and how much reveal you are working with, and it also determines whether you get 120 or 180 degrees of swing.
12) My opening uses a track-style arm - will the Sargent 25-RO work there?
No. The Sargent 25-RO is a wrought arm and link assembly with a foot assembly, which projects from the closer to a shoe on the frame or door. A track application needs a track arm, such as the Falcon 8230-3077PLCM standard arm with track for 8230 Series automatic door operators. The two are not interchangeable because the door and frame prep differs, so identify whether the existing hardware rides in a slide track before substituting.
13) What do I order if my door is a center hung pivot rather than a surface closer?
The Sargent 25-RO is a surface-applied arm assembly for 1431 Series door closers and does not serve a center hung pivot opening. For that condition the Falcon OHC100A-DP is a center hung floor pivot with end load arm for OHC100 Series door closers. Verify the closer type on the opening first: a surface closer takes the 25-RO style arm, while an overhead concealed or center hung arrangement takes the pivot and end load arm.
14) What finishes does the Sargent 25-RO wrought arm come in?
Two: EAB sprayed brass enamel and EN sprayed aluminum enamel. EN is the usual match for aluminum storefront and painted aluminum closer bodies; EAB is the one to pick if the existing closers on the building are brass-toned.
