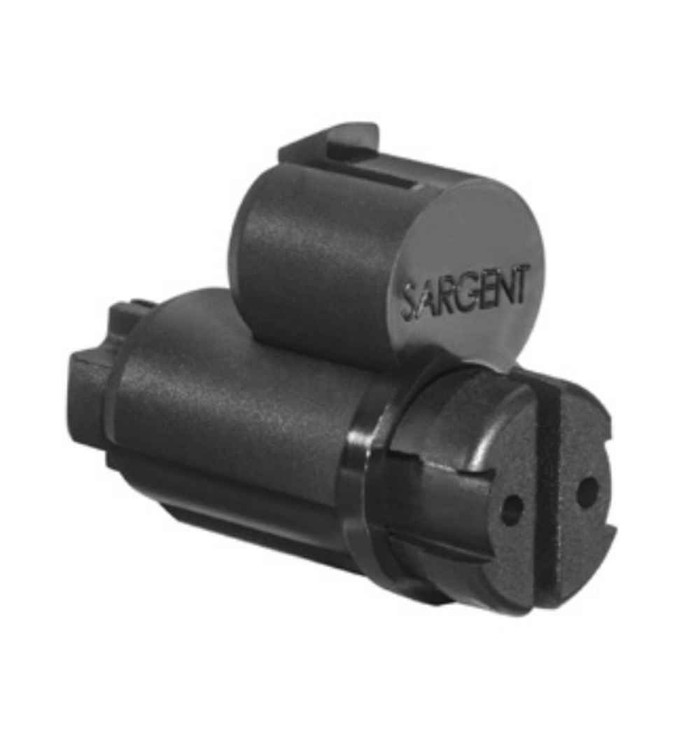

Sargent 60-40 Large Format Disposable Plastic Core for Construction Phase Security

Sargent 60-40 Large Format Disposable Plastic Core for Construction Phase Security

(No reviews yet) Write a Review

Model: SGT-60-40
From the Conventional Key System Collection
$120.00
$81.97
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$120.00
$81.97
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sargent Large Format Disposable Plastic Core for Construction Phase Security

Temporary Security Solution for Construction Projects

The Sargent Large Format Disposable Plastic Core provides an effective temporary security solution during construction phases in non-restricted areas. This one-piece design eliminates the need for distributing actual keys during construction, allowing operation with a coin or flat screwdriver. Compatible with mortise, exit devices, and most cylindrical lock sets, with permanent keyed cores (6300 Series) installed upon construction completion.

Professional Features & Benefits

  • Construction Phase Security: Eliminates use and distribution of actual keys during construction in non-restricted areas for enhanced security control.
  • Universal Operation: Operates with coin or flat screwdriver for convenient access without specialized tools or key distribution.
  • One-Piece Design: Easy installation with integrated construction for reliable temporary operation throughout the construction phase.
  • Broad Compatibility: Available for mortise, exit devices, and most cylindrical lock sets to accommodate various door hardware configurations.
  • Mortise Size Options: Available in sizes 60-42, 60-43, 60-44, and 60-46 for comprehensive mortise lock compatibility.
  • Cam Configuration Options: Available mortise cams detailed on page 17 with suffix specification system (example: 60-44-105 cam) for precise application matching.
  • Separate Ordering Capability: Available as standalone component using part number 13-5177 for replacement or additional quantity needs.
  • Permanent Core Integration: Designed for replacement with permanent keyed cores (6300 Series) upon construction completion for seamless security transition.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Installation & Operation

This component is designed for use with compatible mortise locks, exit devices, and cylindrical lock sets. Refer to the parent device installation instructions and manufacturer documentation for proper integration. Ensure compatibility with existing hardware before installation.

Professional Applications

  • Commercial Construction Projects
  • Educational Facility Construction
  • Healthcare Institution Build-Outs
  • Office Building Development
  • Multi-Tenant Residential Construction
  • Industrial Facility Construction
  • Government Building Projects

Why Choose Sargent Quality?

Sargent disposable plastic cores deliver reliable temporary security with one-piece construction designed for easy installation and consistent operation throughout the construction phase. Engineered to integrate seamlessly with permanent keyed core systems upon project completion, ensuring professional-grade security transition for demanding commercial construction applications.

Product Specs

Product Type:
Cylinders
Product Group:
Mechanical Locks
Product Subgroup:
Parts and Accessories
Subcategory:
Parts and Accessories
Commercial/Residential:
Commercial
Collection:
Conventional Key System
Series:
40 Series
Parts and Accessories Type:
Replacement Parts
Product Attribute:
Parts and Accessories
Product Category:
Mechanical Locks
Department:
Door Hardware

Sargent SGT-60-40 – Frequently Asked Questions

1) What is a Sargent 60-40 disposable plastic core actually for?
It is a temporary construction-phase core. During the build, the Sargent 60-40 large format disposable plastic core goes into the locks so trades can get in and out without anyone handing out real keys in non-restricted areas. It turns with a coin or a flat screwdriver, so there is nothing to lose or copy. When the job closes out, you pull it and drop in the permanent keyed core.
2) What permanent core replaces the Sargent construction plastic core when the job is done?
Sargent 6300 Series permanent keyed cores. The plastic construction core is meant to come out at project completion and the 6300 large format core goes in its place, so the keying system starts clean at turnover with no construction keys floating around.
3) Will the Sargent plastic construction core work in mortise locks and exit devices, or only cylindrical locks?
All three. The disposable plastic core is offered for mortise locks, exit devices, and most cylindrical lock sets. The mortise versions are the ones with a size and cam to specify; the important thing is that the host hardware is prepped for a Sargent large format interchangeable core.
4) Which mortise size do I order for a Sargent 60-40 construction core?
Four mortise sizes are offered: 42, 43, 44 and 46, ordered as 60-42, 60-43, 60-44 and 60-46. Pick the size that matches the mortise cylinder length the door already takes, since the core has to sit flush with the trim on that thickness of door and lock prep.
5) Do I have to specify a cam with the Sargent 60 series mortise construction core?
Yes, the cam is a required selection. Choose Standard or one of the numbered cams 101, 105, 106, 112, 113 or 115, and it is called out as a suffix on the part number (for example 60-44-105 cam). The cam has to match the lock or exit device trim it is driving, so confirm what the existing hardware uses before you place the order.
6) Is a plastic construction core secure enough for a restricted or occupied area?
No. It is intended for non-restricted areas during the construction phase only, and anyone with a coin or a flat screwdriver can operate it. Do not leave it in an opening protecting tenant space, stored material of value, or any area that needs controlled access at turnover. Swap to a permanent keyed 6300 Series core for those doors.
7) Can I buy just the plastic core by itself without the cam assembly?
Yes. The plastic core is available on its own as part number 13-5177, which is what you want for replacements or extra quantity when the cams and housings are already on site.
8) Does this construction core work with a Sargent conventional key system?
It belongs to the Sargent conventional key system line of large format cores, so it drops into hardware prepped for that platform and hands off directly to a conventional-keyed 6300 core at completion. It is a commercial product, not a residential one.
9) What finishes does the Sargent 60-40 construction core come in?
Fourteen finishes, from 03 bright brass and 04 satin brass through 10B dark oxidized satin bronze oil rubbed, 10BE, 10BL, 14 and 15 nickel, 20D dark statuary bronze, 32 and 32D stainless, plus BSP black and WSP white suede powder coat. Since this is a temporary core, most jobs just match the finish of the permanent hardware schedule so the openings look right during punch walks.
