Sargent 11-60-40 Mortise Cylin...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$156.18

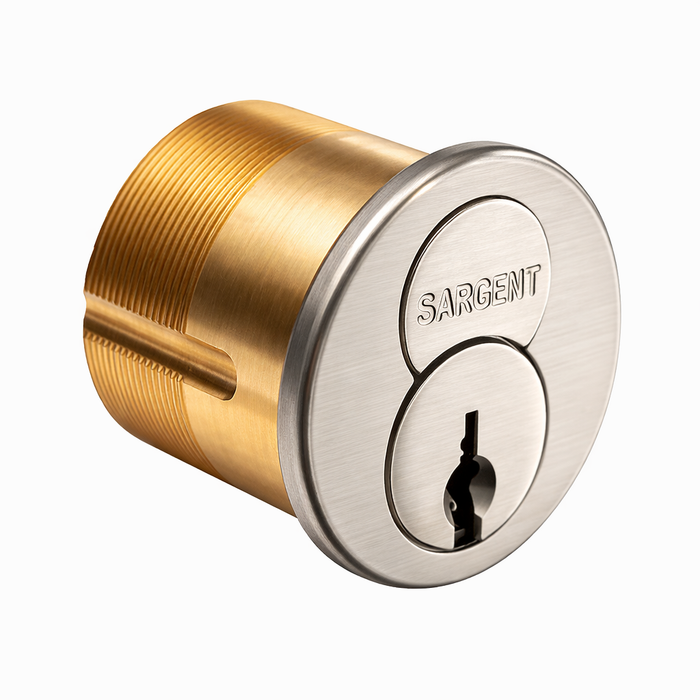

Sargent 11-60-40 Mortise Cylinders with Plastic Disposable Core

Sargent 11-60-40 Mortise Cylinders with Plastic Disposable Core

(No reviews yet) Write a Review

Model: SGT-11-6042 3
From the XC Key System Collection
$156.18
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$156.18
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sargent XC Series Mortise Cylinder with Disposable Plastic Core Technology

Professional Mortise Cylinder Solution with Disposable Core Technology

The Sargent XC Series Mortise Cylinder features innovative plastic disposable core technology while maintaining compatibility with proven 6300 core pin systems and principles. These professional-grade cylinders are available in sizes up to 46, providing the same reliable performance as the 11-63-40 series with the added convenience of disposable plastic cores for enhanced security management and efficient key control.

Professional Features & Benefits

  • Size Range Compatibility: Available up to size 46 with same specifications as 11-63-40 series for versatile commercial applications.
  • Compatible Pin System: Uses the same pins and principles as proven 6300 cores for consistent keying and reliable operation across installations.
  • Disposable Core Technology: Plastic disposable core design allows for quick security changes without complete cylinder replacement, reducing maintenance costs.
  • XC Series Integration: Part of the comprehensive Sargent XC key system for coordinated security solutions and master keying capabilities.
  • Professional Construction: Engineered to mortise lock standards for commercial and institutional applications with demanding security requirements.
  • Security Management: Disposable core system enables efficient key control and security updates for dynamic access control needs.
  • Proven Compatibility: Maintains compatibility with existing 6300 core systems for seamless integration with current security infrastructure.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Sargent Quality?

Sargent XC Series mortise cylinders deliver professional-grade reliability with proven 6300 core compatibility and innovative disposable core technology. The XC series provides comprehensive key system integration for demanding commercial applications where dependable performance and flexible security management are essential.

Product Specs

Product Type:
Cylinders
Product Group:
Mechanical Locks
Product Subgroup:
Parts and Accessories
Subcategory:
Parts and Accessories
Commercial/Residential:
Commercial
Collection:
XC Key System
Series:
40 Series
Parts and Accessories Type:
Replacement Parts
Product Attribute:
Parts and Accessories
Product Category:
Mechanical Locks
Department:
Door Hardware

Sargent SGT-11-6042 3 – Frequently Asked Questions

1) What cam options do I need to specify when ordering a Sargent 11-60-40 mortise cylinder?
Cam selection is required on every order of the Sargent 11-60-40 mortise cylinder. Choices are Standard, 101, 105, 106, 112 and 113. The cam is what drives the lock body, so match it to the Sargent mortise lock or exit device trim the cylinder is going into before you place the order.
2) What cylinder lengths does the Sargent 11-60-40 come in?
Four lengths: 1-1/4, 1-3/8, 1-1/2 and 1-3/4 inches. Pick the length off the door thickness and the lock case so the cylinder face sits flush with the escutcheon or trim ring, not proud of it. Longer sizes are the usual choice on thick doors or where a trim ring is stacked behind the cylinder.
3) Will a Sargent XC disposable core cylinder work with my existing 6300 keying?
Yes. The XC disposable plastic core uses the same pins and the same keying principles as Sargent 6300 cores, so it drops into an existing 6300-based key system and can be pinned into the same master key hierarchy.
4) What is the point of a plastic disposable core in a mortise cylinder?
It lets you change security without pulling and rebuilding the cylinder. When a key is lost or a tenant turns over, the disposable core comes out and a new one goes in, and the cylinder housing stays in the door. For a property manager running turnover across a lot of units, that is a faster rekey than pinning cylinders one at a time.
5) What finishes does the Sargent 11-60-40 mortise cylinder come in so it matches my other door hardware?
Thirteen finishes, so you can match most existing trim: 03 bright brass, 04 satin brass, 09 bright bronze, 10 satin bronze, 10B dark oxidized satin bronze oil rubbed, 10BE, 10BL, 15 satin nickel, 20D dark statuary bronze lacquered, 32 bright stainless, 32D satin stainless, plus BSP black suede powder coat and WSP white suede powder coat. 32D and 10B are the two you will most often be matching on existing commercial openings.
6) Is this the same cylinder as the Sargent 11-63-40, or something different?
Same specifications through size 46 as the 11-63-40, with one difference that matters: the 11-60-40 carries a plastic disposable core instead of the standard core. Keying and pinning follow the 6300 system either way, so the two can live in the same key system on the same building.
7) Do I have to replace the whole mortise lock to upgrade to a disposable core cylinder?
No. This is a cylinder only, a replacement part that threads into the mortise lock case you already have. The lock body, trim and strike stay in the door. What you do need to get right is the cam and the cylinder length, since those are what tie the cylinder to your specific lock.
8) Is the Sargent 11-60-40 cylinder a residential or commercial product?
Commercial. It is built to mortise lock standards for commercial and institutional openings, and the XC key system behind it is aimed at facilities that need master keying and controlled key distribution across offices, schools, healthcare, retail, warehouses, multi-tenant residential and government buildings.
