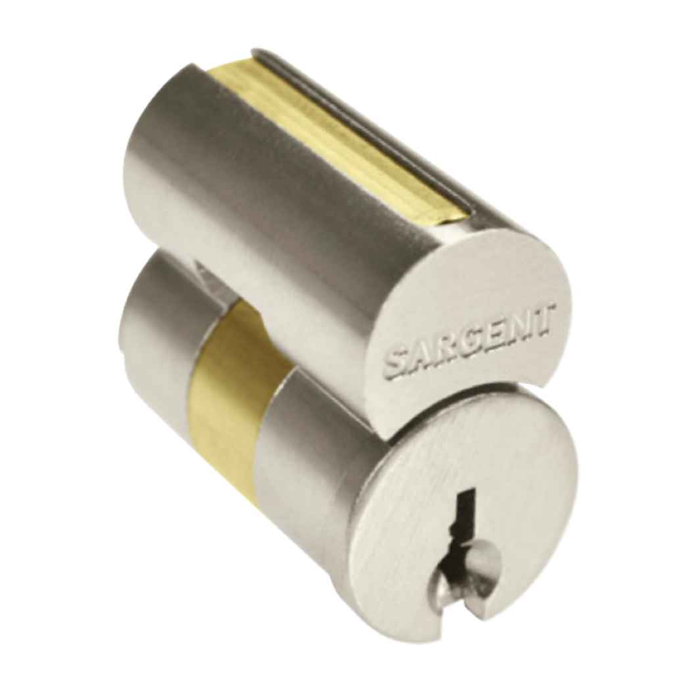

Sargent XC 11-6300 Large Format Interchangeable Core with 6-Pin Bump-Resistant Security

Advanced Key Control System for Commercial Security Applications

The Sargent XC 11-6300 Large Format Interchangeable Core delivers enhanced security through specially designed keys that operate both XC Cylinders and conventional cylinders in one integrated key system. This 6-pin only system features bump-resistant technology with specially engineered patent pending pinning components designed to resist bumping while maintaining cylinder strength. Available in L & R keyway families with finishes 4, 15, and BSP for versatile installation requirements.

Professional Features & Benefits

  • 6-Pin Security Configuration: Exclusive 6-pin only design provides enhanced security levels with bump-resistant technology for superior protection against unauthorized access.
  • Bump-Resistant Technology: Patent pending pinning components specifically engineered to resist bumping attacks while maintaining operational strength and reliability.
  • Universal System Compatibility: Integrates with most existing Sargent systems including exit devices, mortise locks, bored locks, and padlocks for comprehensive facility security.
  • Advanced Key Control: Specially designed keys operate both XC cylinders and conventional cylinders in one unified key system, providing multiple security levels and convenience.
  • Master Key Capability: Can be master or grandmaster keyed with wide variety of master key systems available for complex access control requirements.
  • Field Service Ready: 1 bitted cylinders supplied with 2 key blanks, pins and springs in chambers 3 and 4 for convenient field keying using Sargent 437 C pinning kit.
  • Professional Installation Options: Permanent keyed removable cores supplied with hardware unless specified otherwise, available in L & R keyway families only.
  • Durable Finish Options: Available in finishes 4, 15, and BSP to match existing hardware and environmental requirements.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Installation & Operation

  1. Verify compatibility with existing Sargent system components and contact key records for system integration requirements.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install core using appropriate mounting hardware and secure per manufacturer torque specifications.
  5. For field rekeying, use Sargent 437 C pinning kit with provided pins and springs in chambers 3 and 4.
  6. Test cylinder operation with provided key blanks to verify proper function and smooth operation throughout full range of motion.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Government and Municipal Buildings
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • High-Security Access Control Systems

Why Choose Sargent Quality?

Sargent XC Series cylinders deliver professional-grade security with patent pending bump-resistant pinning technology and specially engineered components designed for demanding commercial applications. The 6-pin only configuration with field service capability provides reliable key control and convenience that meets the security demands of each installation. Engineered for integration with existing Sargent systems where dependable access control performance is essential.

Product Specs

Product Type:
Cylinders
Product Group:
Mechanical Locks
Product Subgroup:
Parts and Accessories
Subcategory:
Parts and Accessories
Commercial/Residential:
Commercial
Collection:
XC Key System
Series:
6300 Series
Parts and Accessories Type:
Replacement Parts
Product Attribute:
Parts and Accessories
Product Category:
Mechanical Locks
Department:
Door Hardware

Sargent SGT-11-6300 LA 4 – Frequently Asked Questions

1) Will a Sargent XC 11-6300 core fit my existing Sargent exit devices and mortise locks?
The XC 11-6300 is a large format interchangeable core, and Sargent states it integrates with most existing Sargent systems including exit devices, mortise locks, bored locks, and padlocks. That is the point of the LFIC format: one core pulls with a control key and drops into any Sargent housing prepped for it, so you can standardize a whole building on one core type. It does not fit small format (SFIC) housings, and it is not a drop-in for another manufacturer's LFIC prep.
2) Which Sargent keyways can I get the 11-6300 XC core in?
The XC 11-6300 comes in the L keyway family only on the standard build: LA, LB, LC, LE, LF, LG, LJ, LK and LL. LA is the standard. Sargent's XC program is offered in L and R keyway families, but if your building's key records are on a keyway outside that L list, the core has to be ordered to match your system rather than picked off the shelf. Pull your key records before you order, because a core in the wrong keyway will not accept your existing keys at all.
3) Can the Sargent XC 11-6300 be pinned to 5 pins to match my older Sargent system?
No. The XC 11-6300 is a 6-pin only core. If your facility is running a 5-pin Sargent system, this core will not fold into that keying, and you would be starting a new 6-pin system alongside it or converting over. That is a key records decision, not a hardware one, so settle it with your Sargent key records before you buy quantity.
4) What do I have to specify when ordering a Sargent 11-6300 core?
Three things plus the keying instruction. Finish (4 satin brass clear coated, 15 satin nickel plated clear coated, or BSP black suede powder coat), keyway from the L family, and how it is keyed: standard keying, KD keyed different, or KA keyed alike. KA is what you want when a run of doors should open on one key, KD when every opening gets its own. Permanent keyed removable cores come supplied with hardware unless you specify otherwise. If it is going into an existing master key system, the order has to reference your Sargent key records so the core is cut into that system rather than to a fresh random bitting.
5) Can I run XC cores and my existing conventional Sargent cylinders on the same key?
Yes. The XC keys are cut so they operate both XC cylinders and conventional Sargent cylinders in one key system. That is what makes a phased rollout workable: put XC cores on the exterior and high risk openings first, leave conventional cylinders on interior doors, and the same key ring still works everything. It also means you can build multiple security levels into one master key hierarchy instead of running two separate systems.
6) Is the Sargent 11-6300 a complete lock, or do I need the lockset too?
Core only. The 11-6300 is the interchangeable core that goes into a Sargent housing, not a lockset, not a cylinder housing, and not a trim. If the door is bare, you are ordering the mortise lock, bored lock, or exit device trim separately and this core populates it. If you already have Sargent LFIC prepped hardware on the door and just need the keying changed or upgraded, the core on its own is the whole purchase.
7) Can I rekey the Sargent XC 11-6300 core myself in the field?
Yes, if you order it bitted. The 1 bitted version ships with 2 key blanks plus pins and springs in chambers 3 and 4, and Sargent calls out the 437 C pinning kit as the tool for the job. That makes it practical for a locksmith or an in-house maintenance shop to cut cores on site instead of waiting on factory keying. Cores ordered permanent keyed come already set and are not intended to be field pinned.
8) Is the Sargent XC core actually bump resistant, or is that just marketing?
The XC 11-6300 uses patent pending pinning components engineered specifically to resist bumping while keeping the cylinder's strength. That is a mechanical change inside the plug, not a coating or a claim about the keyway. If bump resistance is the reason you are specifying, the 6-pin XC build is the version that carries it, and the key blanks are specific to the XC system.
9) Can Sargent XC 11-6300 cores be master keyed and grandmaster keyed across a campus?
Yes. The 11-6300 can be master or grandmaster keyed, and Sargent offers a wide range of master key system structures for it. For a school district or a hospital where you need building masters under a campus grandmaster and individual change keys per room, the core supports that hierarchy. Order against your existing key records so new cores land in the right level of the system.
10) Is an interchangeable core worth it over a standard fixed cylinder for a rental property?
For a property manager with turnover, yes, and the reason is time on site. With the XC 11-6300 in the door, a tenant change means pulling the core with a control key and dropping in a fresh one in seconds, with no disassembly of the lockset and no locksmith visit. A conventional fixed cylinder has to come apart and be rekeyed. The trade off is that you carry spare cores in inventory and you have to protect the control key, because whoever holds it can remove cores. For a single door that never changes hands, a conventional cylinder is the simpler buy.
11) Which finish should I order to match the rest of my door hardware?
Three finishes are offered on the 11-6300 core: 04 satin brass with clear coat, 15 satin nickel plated with clear coat, and BSP black suede powder coat. All three are available across every L keyway offered. 15 is the usual match for satin chrome and brushed stainless trim, 04 for brass and bronze hardware, and BSP for black hardware packages. Since only the core face shows once installed, matching the lock trim you already have on the door is what matters here, not the lockset finish code.
12) Is the Sargent XC 11-6300 core suitable for a hospital or school, or is it residential grade?
It is a commercial product, and Sargent positions it for office buildings, schools, healthcare, government buildings, industrial and warehouse facilities, multi-tenant residential and high security access control. The combination that makes it fit institutional work is the master keying depth and the removable core format, which lets a facilities department control a large key system in house rather than calling a locksmith for every change.
