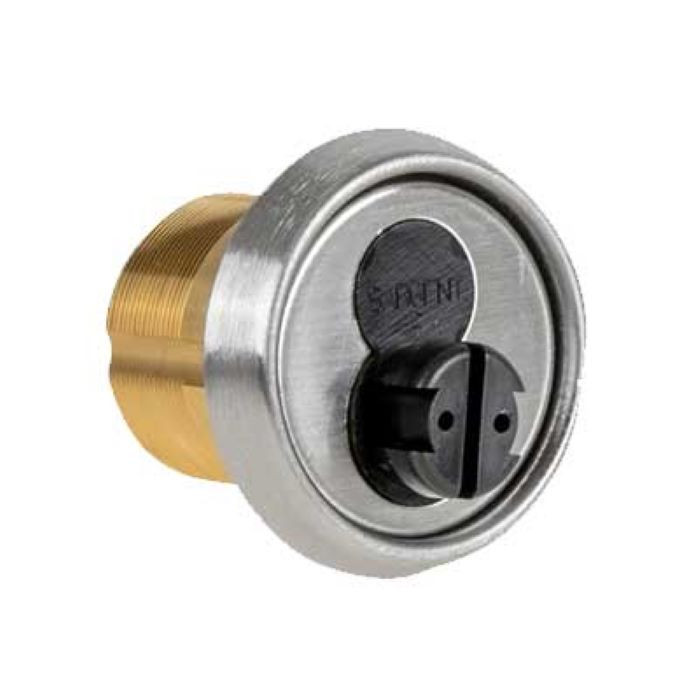

Sargent 60-42 6042 LFIC 6-Pin Mortise Housing

Sargent 60-42 LFIC 6-Pin Mortise Cylinder Housing

(No reviews yet) Write a Review

Model: 60-42-32D
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$139.43
$79.86
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sargent LFIC 6-Pin Mortise Cylinder Housing for Large Format Interchangeable Core Systems

Professional Mortise Lock Cylinder Solution

The Sargent LFIC 6-Pin Mortise Cylinder Housing provides secure, professional-grade cylinder mounting for mortise lock applications. This housing is designed to accommodate Large Format Interchangeable Core (LFIC) cylinders with 6-pin configuration, offering reliable security for commercial and institutional applications. Engineered with precision manufacturing to ensure proper fit and long-term performance in demanding environments.

Professional Features & Benefits

  • LFIC Compatibility: Designed specifically for Large Format Interchangeable Core cylinders for flexible key system management and master keying applications.
  • 6-Pin Configuration: Accommodates 6-pin cylinder cores for enhanced security levels and expanded key control options in complex systems.
  • Mortise Application Design: Engineered specifically for mortise lock installations providing secure cylinder mounting and reliable operation.
  • Precision Manufacturing: Professional-grade construction ensures reliable cylinder retention, proper alignment, and smooth long-term operation.
  • Commercial Grade Construction: Built for demanding institutional and commercial applications requiring dependable security hardware performance.
  • Master Key System Integration: LFIC design provides flexibility for complex master key systems while maintaining security standards required in institutional environments.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Government and Municipal Buildings
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Financial Institutions

Why Choose Sargent Quality?

Sargent mortise cylinder housings deliver professional-grade reliability with precision manufacturing engineered for demanding commercial applications. The LFIC design provides flexibility for master key systems while maintaining the security standards required in institutional environments. Trusted by security professionals for consistent performance and long-term durability in critical access control applications.

Product Specs

Product Type:
Cylinders
Product Group:
Mechanical Locks
Product Subgroup:
Parts and Accessories
Subcategory:
Parts and Accessories
Commercial/Residential:
Commercial
Series:
60-42 Series
Parts and Accessories Type:
Replacement Parts
Product Attribute:
Parts and Accessories
Product Category:
Mechanical Locks
Department:
Door Hardware

Sargent 60-42-32D – Frequently Asked Questions

1) What is a Sargent 60-42 mortise cylinder housing actually used for?
It's the housing half of a mortise cylinder on a large format interchangeable core system. The core itself is not part of it, the 60-42 is the threaded shell the LFIC core drops into and that threads into the mortise lock case. It takes a 6-pin LFIC core, which is what lets a locksmith pull and swap keying on a door without taking the lock apart.
2) Does the Sargent 60-42 housing come with a core and keys?
No. The 60-42 is a housing only, catalogued as a replacement part. You order the 6-pin large format interchangeable core separately, keyed to your existing system, along with a control key to insert and remove it. Buying the housing alone is normal practice when the facility already runs an LFIC master key system and holds its own cores.
3) Which cam do I order with a Sargent LFIC mortise cylinder housing?
Four cam choices: Standard, 101, 106 and 112. The cam is the tail that drives the lock, so it has to match the lock case the cylinder is going into, not the door. Pull the old cylinder and match the cam shape before ordering, because a correct-length cylinder with the wrong cam will thread in and still not retract the latch.
4) Will a 6-pin LFIC core from my existing Sargent system fit this housing?
Yes, provided the cores are 6-pin large format interchangeable cores. The 60-42 is built around that core size, so a core already keyed into your Sargent master key system drops straight in. Seven-pin cores are a different size and will not seat in a 6-pin housing.
5) Can I use this housing on a rim exit device or a key-in-lever lock?
No. The 60-42 is a mortise format housing, threaded to screw into a mortise lock case. Rim exit devices take a rim cylinder with a vertical tailpiece, and bored locks take a key-in-knob or key-in-lever cylinder. For those openings you want the matching Sargent LFIC rim or KIK housing instead, in the same 6-pin core size so the whole building stays on one core.
6) I'm replacing a damaged Sargent mortise cylinder. What do I need to check before ordering the 60-42?
Three things. First, that the lock runs 6-pin LFIC cores and not a conventional keyed cylinder, since a conventional cylinder is one piece and won't be replaced by a housing alone. Second, the cam, which must match your lock case from Standard, 101, 106 or 112. Third, the finish, 04 satin brass or 32D satin stainless, to match the rest of the trim on the opening.
7) What finishes does the Sargent 60-42 mortise housing come in?
Two: 04 satin brass with a clear coat, and 32D satin stainless steel. Every one of the four cam options is offered in both, so you can standardize the finish across a building and still order different cams for different lock cases. 32D is the usual match for satin chrome and brushed stainless trim.
8) Is this housing suitable for a school or hospital rekey program?
That's what it's built for. It's a commercial-grade part, and the interchangeable core design is what makes large facility rekeying practical: staff turnover or a lost key means pulling and replacing cores with a control key rather than dismantling mortise locks door by door. Sargent lists it for office, education, healthcare, government, industrial, multi-tenant residential and financial buildings.
