Sargent 11-34 Rim Type Cylinder with 6-Pin Configuration

Sargent XC 11-34 Rim Type Cylinder with 6-Pin Configuration and Bump-Resistant Technology

High-Security Cylinder with Advanced Key Control Technology

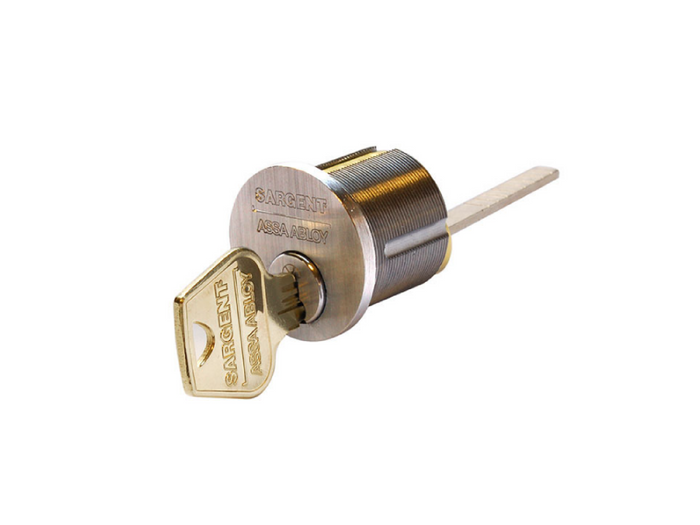

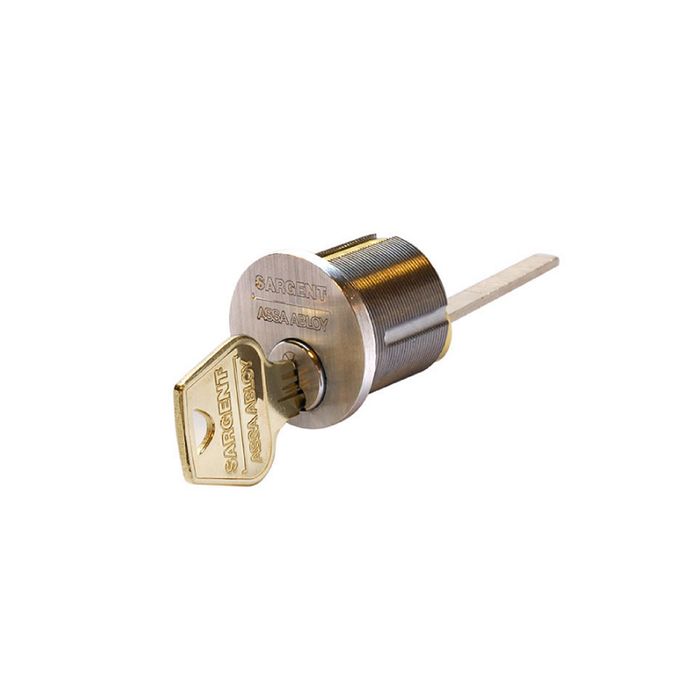

The Sargent XC 11-34 Rim Type Cylinder delivers enhanced security and key control through innovative XC Series design with 6-pin configuration. This complete assembly features a 27/32" (21mm) screw pattern specifically engineered for through-bolted Sargent exit devices. Constructed with solid brass cylinder body and available with brass, bronze, or stainless steel cap options, this cylinder integrates seamlessly into most existing Sargent systems while providing multiple security levels for demanding commercial applications.

Professional Features & Benefits

• Precision Mounting Pattern: 27/32" (21mm) screw pattern designed specifically for through-bolted Sargent exit devices ensures proper fit and alignment.
• Advanced XC Series Technology: Specially designed keys operate both XC cylinders and conventional cylinders in one integrated key system for maximum flexibility.
• Bump-Resistant Security: Patent-pending pinning components engineered to resist bumping attacks while maintaining cylinder strength and reliability.
• Heavy-Duty Construction: Solid brass cylinder body with choice of brass, bronze, or stainless steel cap provides exceptional durability for commercial applications.
• System Integration: Integrates into most existing Sargent systems with proper compatibility verification through key records.
• Comprehensive Finish Options: Cylinder finishes include 3, 4, 9, 10, 10B, 10BE, 10BL, 15, 20D, 32, 32D, BSP, WSP with plug finishes in 4, 15, BSP for aesthetic coordination.
• Field Service Capability: Compatible with Sargent 437 C pinning kit for field rekeying and maintenance flexibility.
• Component Modularity: Available as complete assembly (11-34), plug assembly (13-4312), or shell and slide assembly (13-4299) for service flexibility.

Technical Specifications

• Refer to manufacturer documentation for complete technical specifications.

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose Sargent Quality?

Sargent XC Series cylinders deliver professional-grade security with solid brass construction and patent-pending bump-resistant technology. The XC system provides advanced key control with the flexibility to integrate into existing Sargent systems while offering multiple security levels. Engineered for demanding commercial applications where reliable access control and enhanced security are essential.

Product Documentation & Resources

• [Catalog] SARGENT Full Line Catalog
