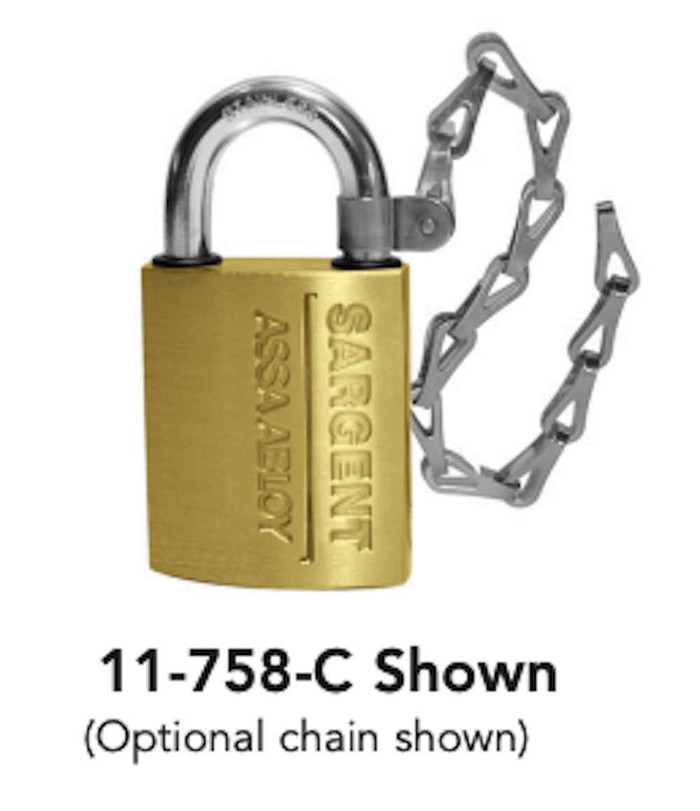

Sargent 11-C750-1 Padlock Cylinder for 758/858 Series with 6-Pin Configuration

Sargent 11-C750-1 Padlock Cylinder for 758/858 Series with 6-Pin Configuration

(No reviews yet) Write a Review

Model: SGT-11-C750-1 LA 4
From the XC Key System Collection
$154.65
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$154.65
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sargent XC Series 6-Pin Padlock Cylinder for 758/858 Series with Bump-Resistant Technology

High-Security Padlock Cylinder with Advanced Key Control

The Sargent XC 11-C750-1 is a specialized padlock cylinder designed for 758/858 series padlocks, featuring the advanced XC Series security system with 6-pin configuration and dual ball bearing shackle locking. This cylinder-only component integrates into existing Sargent systems while providing enhanced key control and bump-resistant security features with specially designed keys that operate both XC cylinders and conventional cylinders in one unified key system.

Professional Features & Benefits

  • 6-Pin Security Configuration: Standard 6-pin cylinder provides enhanced security with multiple available security levels for comprehensive key control.
  • Bump-Resistant Technology: Employs specially engineered patent-pending pinning components designed to resist bumping while maintaining cylinder strength and reliability.
  • Dual Ball Bearing Shackle Lock: All shackles feature 5/16" (8mm) diameter with dual ball bearing locking mechanism for superior holding strength.
  • Dual Compatibility Options: Works with 758 key-retaining (key removal only when locked) and 858 non-key retaining (snap locking) padlock configurations for flexible security applications.
  • Field Rekeying Capability: Cylinder easily removed while in unlocked position for convenient rekeying using Sargent 437 C pinning kit.
  • System Integration: XC Series cylinders integrate into most existing Sargent systems while offering new dimension in higher security and key control.
  • Optional LFIC Core: Compatible with optional 11-63 XC LFIC (removable) core for enhanced key management flexibility.
  • Compatible Accessories: Works with Sargent 437 C pinning kit for field rekeying operations and optional 11-63 XC LFIC core for enhanced flexibility.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Installation & Operation

This cylinder component is designed for use with compatible 758/858 series padlocks. Refer to the parent device installation instructions and manufacturer documentation for proper integration. Ensure compatibility with existing hardware before installation.

Professional Applications

  • Commercial Property Security Systems
  • Industrial Facility Access Control
  • Educational Institution Asset Protection
  • Healthcare Facility Equipment Security
  • Multi-Tenant Residential Properties
  • Government and Municipal Facilities
  • Warehouse and Distribution Centers

Why Choose Sargent Quality?

Sargent XC Series padlock cylinders deliver professional-grade security with specially engineered bump-resistant pinning components and 6-pin configuration rated for demanding commercial applications. The dual ball bearing shackle locking system with 5/16" (8mm) diameter and field-rekeyable design provide reliable performance where dependable access control is essential. Engineered for integration with existing Sargent key systems while offering enhanced security levels and convenient service capabilities.

Product Specs

Product Type:
Cylinders
Product Group:
Mechanical Locks
Product Subgroup:
Parts and Accessories
Subcategory:
Parts and Accessories
Commercial/Residential:
Commercial
Collection:
XC Key System
Series:
C750 Series
Parts and Accessories Type:
Replacement Parts
Product Attribute:
Parts and Accessories
Product Category:
Mechanical Locks
Department:
Door Hardware

Sargent SGT-11-C750-1 LA 4 – Frequently Asked Questions

1) Does the Sargent 11-C750-1 come with a padlock, or is it just the cylinder?
Cylinder only. The 11-C750-1 is a replacement cylinder for Sargent 758 and 858 series padlocks, so you need the padlock body already in hand. If your padlock is missing or damaged, order a complete 758 or 858 padlock instead of this part.
2) What is the difference between the Sargent 758 and 858 padlocks this cylinder fits?
The 758 is key retaining, meaning the key only comes out when the padlock is locked, which stops someone walking off with an open lock hanging on a hasp. The 858 is non-key retaining and snap locking, so you can pull the key while it is open and push the shackle shut without the key. Same 11-C750-1 cylinder serves both.
3) Which keyways can I get on this Sargent XC padlock cylinder?
Nine Sargent keyways are offered on the 11-C750-1: LA (standard), LB, LC, LE, LF, LG, LJ, LK and LL. Pick the one that matches the rest of your Sargent system so the padlock falls under the same master key.
4) Can these padlocks be keyed alike to my existing Sargent building keys?
Keying is a required selection: standard keying, KD keyed different, or KA keyed alike across the padlocks you order. The XC Series cylinders integrate into most existing Sargent systems, and XC keys operate both XC and conventional cylinders on one key system, so a facility can bring padlocks onto the same key as the door hardware.
5) Can a locksmith rekey the Sargent 11-C750-1 in the field?
Yes. The cylinder comes out with the padlock in the unlocked position, and it rekeys with the Sargent 437 C pinning kit. It is a standard 6-pin cylinder. Sargent publishes cylinder removal instructions for the 758 and 858 padlocks if you have not done one before.
6) Is the Sargent XC cylinder bump resistant?
It uses specially engineered pinning components built to resist bumping while keeping cylinder strength, combined with a 6-pin configuration and multiple available security levels for key control. That is the security argument for XC over a conventional Sargent cylinder in the same padlock.
7) Can I use an interchangeable core in a Sargent 758 or 858 padlock instead of this fixed cylinder?
Yes, the optional 11-63 XC LFIC removable core is the alternative when you want to pull and swap cores on tenant turnover rather than repin. The 11-C750-1 is the fixed 6-pin cylinder version, which is the simpler route if your site does not run an IC key system.
8) What size shackle do the Sargent 758 and 858 padlocks use?
All shackles on those padlocks are 5/16 inch (8mm) diameter with a dual ball bearing locking mechanism, which grips the shackle on both legs rather than a single pawl. The 11-C750-1 cylinder is the keying half of that assembly.
