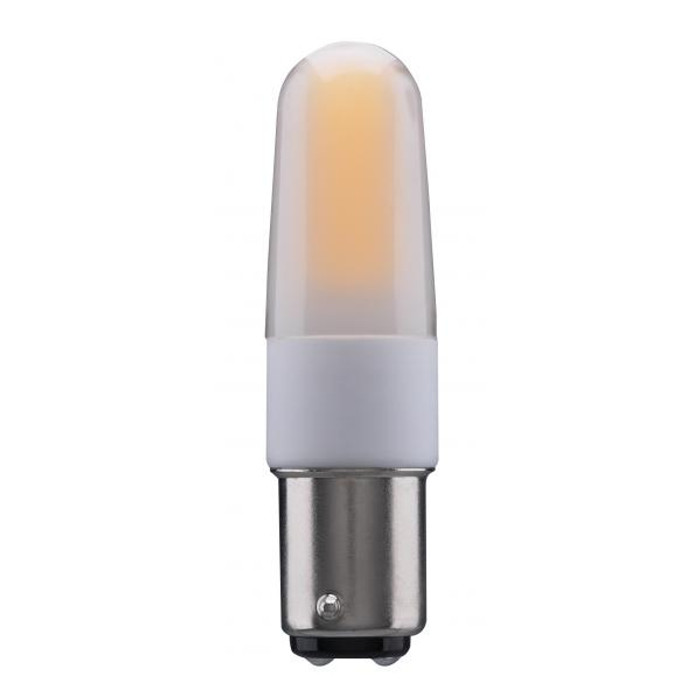

SATCO Lighting S11217 4W, LED, 5000K, Frosted, Double Contact Bayonet Base, 120-130V
4 Watt - LED - 5000K - Frosted - Double Contact Bayonet base - 120-130 Volt
Manufacturer Resources
Spec Sheet
Product Specs
- Amps:
- 0.033-0.031A
- Avg Rated Hours:
- 25000
- Burning Position:
- Universal
- CCT Selectable:
- No
- DLC Approved:
- No
- Dimmable:
- Yes
- Enclosure Rating:
- Enclosed Rated Lamp
- FCC Compliant:
- Yes
- Lamp Filament:
- LED
- Lamp Shape:
- T4
- Lens Finish:
- Frost
- Lensed:
- Yes
- Lumens:
- 460L
- Product Type:
- Miniature
- Three-Way:
- No
- Warranty:
- 3 Year Limited
- Product Group:
- Indoor Lighting
- Product Subgroup:
- Light Bulbs
- Bulb Base:
- Bayonet Double Contact
- Base Material:
- Plastic
- Incandescent Equivalent:
- 35W
- Location Rating:
- Damp
- CRI:
- 80
- Subcategory:
- LED
- Title 24 Compliant:
- Yes
- Bulb Type:
- LED
- Product Voltage:
- 120V-130V
- Beam Spread Angle:
- 360
- Light Temperature:
- 5000K
- Product Category:
- Light Bulbs
- Product Wattage:
- 4W
- Product Material:
- Plastic
Satco Lighting S11217 – Frequently Asked Questions
1) Will the Satco S11217 LED fit a double contact bayonet socket (BA15d)?
Yes. The S11217 uses a double contact bayonet base, so it drops into the same twist-and-lock socket as the incandescent double contact bayonet lamp it replaces. Don't confuse it with a single contact bayonet socket, where the two contact pins on the base won't seat correctly.
2) What incandescent bulb does the Satco S11217 4W LED replace?
It is built as a 35W incandescent equivalent, putting out 460 lumens on 4 watts. The T4 shape and double contact bayonet base match the miniature incandescent it swaps for, so it goes into the same fixture without any socket change.
3) Can I run this Satco bayonet LED on a 130 volt circuit?
Yes, the S11217 is rated 120V to 130V, which covers standard 120V line voltage and the 130V-rated circuits common in older exit and stairwell fixtures. Draw is 0.033 to 0.031 amps across that range, so a long string of them loads a circuit very lightly.
4) Is the Satco S11217 safe to use in a sealed or enclosed fixture?
It's an enclosed rated lamp, so it can go inside a closed globe, sealed exit sign housing, or gasketed stairwell fixture where non-enclosed-rated LEDs overheat. Location rating is damp, which covers covered exterior walkways, parking garages, and bathrooms, but not direct exposure to rain or sprinkler spray.
5) Will this Satco LED bulb work on a dimmer?
The S11217 is dimmable. As with any low-wattage LED, a few 4W lamps may fall below the minimum load of an older incandescent dimmer, so on a small circuit plan to use an LED-rated dimmer.
6) Does it matter whether this bulb is mounted base-up or sideways?
No. Burning position is universal, so the S11217 can run base-up, base-down, or horizontal. Light output is 360 degrees around the lamp, which is what you want in a globe or a sign box where the lamp isn't aimed.
7) What color will this Satco bayonet LED look like next to the other bulbs in my building?
5000K, which reads as a crisp daylight white, noticeably cooler and bluer than the warm yellow of the incandescent lamps it replaces. CRI is 80. If you're relamping a bank of fixtures, do the whole run at once or the mismatch is obvious. The frosted lens diffuses the LED sources so you don't see hot spots through a clear globe.
8) How long does the Satco S11217 last compared to the incandescent it replaces?
Rated 25,000 average hours. On a fixture burning 24/7, that's just under three years of continuous run time, which is why these get specified in exit signs and stairwells where the labor to reach the socket costs more than the lamp.
9) Does this Satco LED meet California Title 24?
Yes, the S11217 is Title 24 compliant and FCC compliant. It is not DLC listed, so if your utility rebate program requires a DLC-qualified product, this one won't qualify for that incentive.
10) Is the Satco S11217 a three-way or color-selectable bulb?
Neither. It is a fixed 5000K lamp with no CCT selection switch, and it is not a three-way bulb, so it runs at a single 4W output level. Dimming is handled by the fixture's dimmer, not by the lamp.
11) Is the base on this bayonet LED metal or plastic?
Plastic. That matters in a corroded or damp socket: plastic won't seize to the shell the way an oxidized brass base can, but it also means you should hand-tighten the quarter turn only and never use pliers on the base to free a stuck lamp.
