SATCO Lighting S12246 12W, AR1...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$26.57

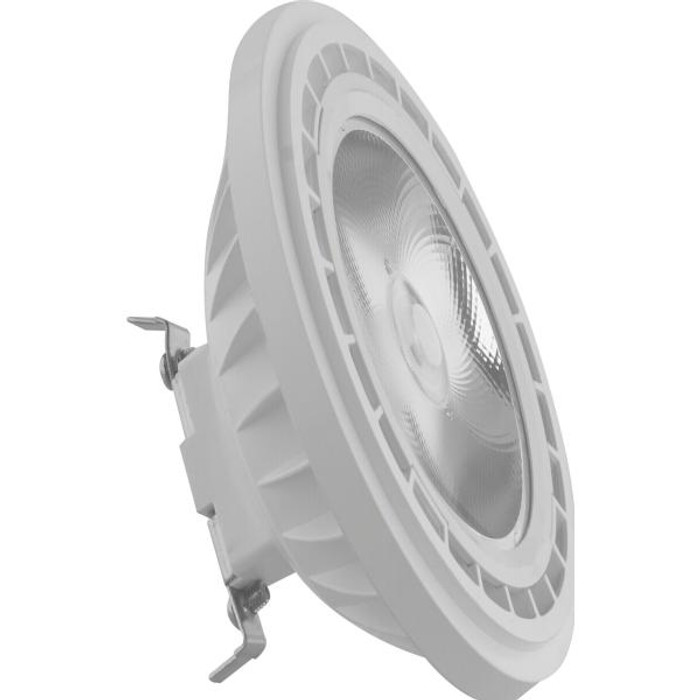

Satco Lighting SAT-S12246 12 Watt - AR111 - COB LED - 850 Lumens - G53 Base - 80 CRI - 3000K - 12 Volt - 12 Degree Spotlight Bulb

SATCO Lighting S12246 12W, AR111, COB LED, 850 Lumens, G53 Base, 80 CRI, 3000K, 12V, 12 degree Spotlight Bulb

(No reviews yet) Write a Review

Model: S12246
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$26.57
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

SATCO Lighting S12246 12W, AR111, COB LED, 850 Lumens, G53 Base, 80 CRI, 3000K, 12V, 12 degree Spotlight Bulb

12 Watt - AR111 - COB LED - 850 Lumens - G53 Base - 80 CRI - 3000K - 12 Volt - 12 Degree Spotlight Bulb

Manufacturer Resources

Spec Sheet

Product Specs

Amps:
1.000A
Avg Rated Hours:
30000
Burning Position:
Universal
CCT Selectable:
No
DLC Approved:
No
Dimmable:
No
FCC Compliant:
Yes
Housing Color:
White
Lamp Filament:
LED
Lamp Shape:
AR111
Lens Finish:
Clear
Lens Material:
Plastic (PS)
Lensed:
Yes
Lumens:
850L
Operating Frequency:
60Hz
Product Type:
AR
Three-Way:
No
Warranty:
3 Year Limited - 10 hr per day
Product Group:
Indoor Lighting
Product Subgroup:
Light Bulbs
Bulb Base:
G53
Base Material:
Plastic
Incandescent Equivalent:
90W
Location Rating:
Damp
CRI:
80
Subcategory:
LED
Location Indoor/ Outdoor:
Indoor
Title 24 Compliant:
Yes
Bulb Type:
LED
Product Voltage:
12V
Beam Spread Angle:
12
Light Temperature:
3000K
Product Category:
Light Bulbs
Product Wattage:
12W
Product Weight:
0.39 lb
Product Material:
Plastic

Satco Lighting S12246 – Frequently Asked Questions

1) Does this AR111 bulb need a transformer, or does it run on line voltage?
It runs on 12 volts, not 120. The S12246 draws 1.0 amp at 12V, 60Hz, so it needs a low voltage transformer or driver sized for the load, same as the halogen AR111 it replaces. Confirm the existing magnetic or electronic transformer handles an LED load at that current before you swap the whole run.
2) Is a 12 degree beam too tight for general room lighting?
Yes, this is a spot, not a flood. The 12 degree beam spread is meant for accenting artwork, merchandise, signage, or a single architectural feature from a height. For washing a wall or covering a seating area you want a wider AR111 beam angle, otherwise you get bright pools and dark gaps.
3) Can this Satco AR111 go in a covered outdoor soffit or a bathroom?
It is an indoor lamp with a damp location rating. A covered interior bath, a cooler, or an enclosed canopy that stays out of the weather is fine; anything exposed to rain or direct spray needs a wet rated lamp and fixture.
4) Will 3000K match the other bulbs already in my building?
The S12246 is fixed at 3000K warm white with 80 CRI, and it is not a color selectable lamp. It will blend with other 3000K lamps but will read noticeably warmer next to 3500K or 4000K. For merchandise or art where color rendering is critical, 80 CRI is standard commercial quality, not high CRI.
5) Does this bulb qualify for California Title 24?
Yes, the S12246 is Title 24 compliant and FCC compliant. It is not DLC listed, so if a utility rebate program on your job requires a DLC listed product, this lamp will not satisfy that line item.
6) How long before I have to get the lift out again to relamp?
Rated life is 30,000 hours. At 12 hours a day of retail operation that is about 6.8 years per lamp, which is the main reason facilities groups convert high ceiling AR111 accent runs off halogen.
7) What is the S12246 lamp body made of, and does it have a lens?
The lamp has a clear polystyrene lens over the COB LED, a white housing, and a plastic G53 base. The clear lens keeps the 12 degree beam crisp rather than diffusing it, so the cutoff at the edge of the beam stays defined.
