SATCO Lighting S29910 25W T5 L...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$12.52

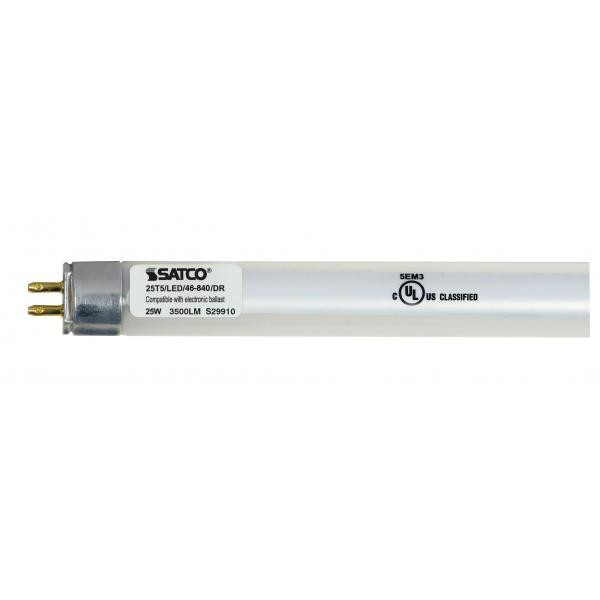

Satco Lighting SAT-S29910 25 Watt T5 LED - Miniature bi-pin base - 4000K - 50000 Average rated hours - 3500 Lumens - Type A - Ballast dependent

SATCO Lighting S29910 25W T5 LED, Miniature bi-pin Base, 4000K, 50000 Avg Rated Hours, 3500 Lumens, Type A, Ballast dependent

(No reviews yet) Write a Review

Model: S29910
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$12.52
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

SATCO Lighting S29910 25W T5 LED, Miniature bi-pin Base, 4000K, 50000 Avg Rated Hours, 3500 Lumens, Type A, Ballast dependent

25 Watt T5 LED - Miniature bi-pin base - 4000K - 50000 Average rated hours - 3500 Lumens - Type A - Ballast dependent

Manufacturer Resources

Product Specs

Amps:
0.208-0.090A
Avg Rated Hours:
50000
Ballasting Requirements:
Ballast required
Burning Position:
Universal
CCT Selectable:
No
DLC Approved:
Yes
Dimmable:
Yes
Enclosure Rating:
Enclosed Rated Lamp
FCC Compliant:
Yes
Lamp Filament:
LED
Lamp Shape:
T5
Lens Finish:
Gloss
Lens Material:
Glass
Lensed:
Yes
Lumens:
3500L
Operating Frequency:
50/60Hz
Product Type:
Linear
Three-Way:
No
Warranty:
5 Year Limited - T5 LED Bulbs
Product Group:
Indoor Lighting
Product Subgroup:
Light Bulbs
Bulb Base:
Miniature Bi Pin
Base Material:
Aluminum / Glass
Incandescent Equivalent:
100W
Location Rating:
Damp
CRI:
82
Subcategory:
LED
Title 24 Compliant:
Yes
Bulb Type:
LED
Product Voltage:
120V-277V
Beam Spread Angle:
185
Light Temperature:
4000K
Product Category:
Light Bulbs
Product Wattage:
25W
Department:
Electrical

Satco Lighting S29910 – Frequently Asked Questions

1) Does the Satco S29910 T5 LED tube need the existing fluorescent ballast, or do I have to rewire the fixture?
Keep the ballast. The S29910 is a Type A, ballast-dependent lamp: it runs off the fixture's existing ballast, so it drops into a working T5 fixture with no rewiring and no bypass. If the ballast fails, the lamp stops working, so a fixture with a questionable ballast is a case for a ballast-bypass (Type B) lamp instead.
2) Will a 25W T5 LED replacement fit my existing T5 fluorescent sockets?
It uses a miniature bi-pin base, the same base used on T5 linear fluorescent lamps, so it seats in standard T5 tombstones. The tube is a T5 shape, meaning 5/8 inch diameter, so it also clears the narrow reflectors and lenses built for T5.
3) Can this T5 LED tube go in an enclosed or damp-location fixture, like a wrap or a parking garage can?
It is an enclosed-rated lamp, so sealed lensed fixtures and wraps are fine, and it carries a damp location rating. Damp covers bathrooms, covered walkways and garages, but not direct exposure to rain or spray, which needs a wet-location lamp.
4) Is the Satco S29910 bright enough to replace a 54W high-output T5 fluorescent?
At 25 watts it puts out 3500 lumens, which Satco rates as a 100W incandescent equivalent. That output lines up with a standard T5 fluorescent lamp rather than a high-output T5HO. If your fixture is running T5HO lamps, expect less light on the floor after the swap.
5) What color will 4000K look like next to the fluorescent tubes already in my building?
4000K is neutral white, the common office and corridor color between 3500K warm white and 5000K daylight. It is a fixed color temperature, not CCT selectable, so every lamp in a reorder matches. Color rendering is 82 CRI.
6) Will this LED tube dim on my existing fluorescent dimming system?
The lamp itself is dimmable, but because it is a ballast-dependent Type A lamp, the dimming is controlled by the fluorescent ballast in the fixture. A dimming ballast and compatible control have to already be in place; the lamp will not add dimming to a fixture wired with a standard instant-start ballast.
7) What voltage and current does this T5 LED draw, and will it work on a 277V circuit?
Operation covers 120V through 277V at 50/60Hz, so it suits both 120V residential-style branch circuits and 277V commercial lighting panels. Current draw runs 0.208A down to 0.090A across that voltage range, useful when you are recounting lamps per circuit after a retrofit.
8) Can this tube be mounted vertically or in a cove, or does it have to lie flat?
Burning position is universal, so it runs horizontal in a troffer or wrap, vertical in a strip, or tucked in a cove with no derating concern. The 185 degree beam spread throws light across roughly a half-sphere, similar to the fluorescent tube it replaces rather than a directional LED.
9) How long before I have to relamp these again?
Rated life is 50,000 average hours. On a 12 hour per day schedule that is over 11 years of service, which is what makes a Type A swap attractive for high-ceiling or hard-access fixtures in a maintenance program.
10) Is the Satco S29910 a glass tube or plastic, and does that matter for where I install it?
The lamp is built with aluminum and glass, with a glossy glass lens. Glass gives a cleaner optic and holds up to heat in enclosed fixtures, but it is breakable, so in gyms, kitchens or shop areas where impact or food safety is a concern a shatter-resistant coated or plastic-bodied tube is the better call.
