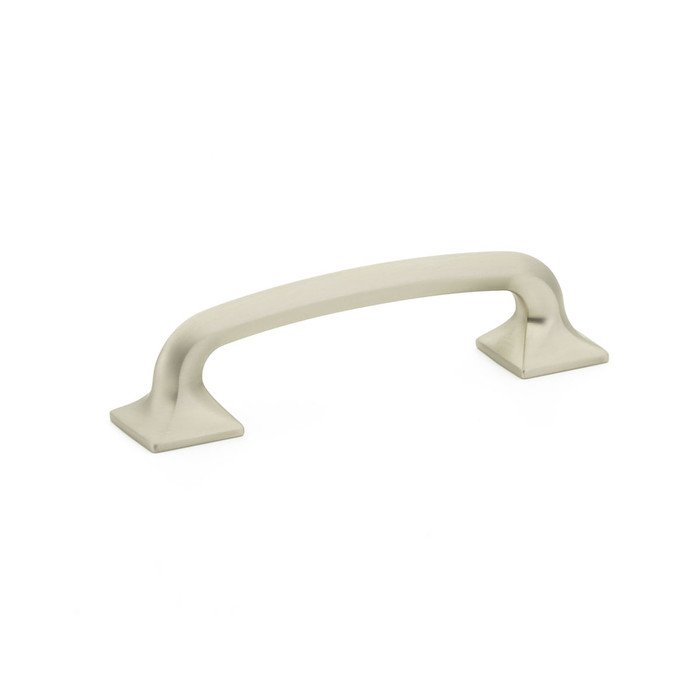

Schaub 206 4" Center to Center Northport Cabinet Pull

Yes, if your existing holes are 4 inches apart on center. The Northport 206 is a 4 inch center-to-center pull, so it drops straight onto standard 4 inch bored doors and drawer fronts with no new drilling. Overall length is 5 inches, so it overhangs the mounting holes by about half an inch on each end.

The Northport 206 takes 8/32 machine screws supplied at 1 inch length. That covers typical 3/4 inch drawer fronts and doors with thread to spare. If you are going through a thicker front, a false front, or a front plus an applied panel, you will need longer 8/32 screws, which are a standard hardware-store thread.

The Northport 206 has a zinc base material with the finish applied over it. If your spec calls for solid brass, look at the Omnia 1968/102, a forged solid brass modern pull also on 4 inch centers, or the Deltana SBP35 square bar pull in solid brass.

The Schaub 206 Northport is fixed at 4 inch center-to-center, so it will not land on holes drilled at 3 inches. For 3 inch centers, the Trimco 553 series drawer pull is built at 3 inch center-to-center. If the existing holes are at 3-1/2 inches, the Trimco 562 series includes a 3-1/2 inch option and the Deltana SBP35 is a 3-1/2 inch modern square bar pull in solid brass. Measure hole center to hole center on an existing drawer before ordering.

The Schaub 206 Northport pull is a zinc base material pull on 4 inch centers. If the job calls for solid brass at the same 4 inch center-to-center spacing, the Omnia 1968/102 is a forged solid brass modern cabinet pull with 4 inch center-to-center spacing, so it drops into the same two-hole drilling. The Trimco 562 series drawer pull is also offered in a 4 inch center-to-center option. Both are a different look than the Northport transitional profile, so confirm the style reads correctly with the rest of the cabinetry before you standardize on one.

Projection is 1-3/8 inches from the face of the door or drawer, with a 1 inch base footprint where each post lands. That is enough finger clearance for a gloved hand, and worth checking in a galley kitchen or against an adjacent appliance panel where a projecting pull can catch a hip or a door swing.

Eight finishes: Satin Nickel, Brushed Nickel, Polished Nickel, Polished Chrome, Matte Black, Ancient Bronze, Brushed Bronze, and Signature Satin Brass. That spread covers most spec directions, and because Northport is a collection you can carry the same finish across knobs and other sizes in the family for a consistent look on a whole run of cabinetry.

The Northport 206 projects 1-3/8 inch off the face. If you need the handle to sit closer to the door, the Omnia 1969 and Omnia 1971 modern pulls are built at a 1-3/16 inch projection and the Omnia 1970 at 1-1/4 inch, all in forged solid brass. Those are modern profiles rather than the Northport transitional shape, so expect a different visual line across the run.

Not on the same holes. The Schaub 206 is a two-hole pull on 4 inch centers with 8/32 x 1 inch screws. The Orca Bachelor CK-15030 and CK-16030 are round cabinet knobs at 1-1/4 inch diameter, and the Blackcomb CK-17025 is a 25mm square knob - all single-hole items. Switching to a knob means the second hole in each door or drawer front has to be filled or the fronts replaced. Knobs are a reasonable choice on small upper doors while the 206 pull carries the drawer bank.

Northport is styled transitional, so it reads as a middle ground, softer than a straight bar pull but not ornate. On flat slab doors it works, though if you want a strictly modern line the Omnia 1969, 1970 and 1971 are modern-styled pulls, and the Orca CK-12001 T-pull bar is about as plain as it gets.

Yes. Schaub publishes a Proposition 65 warning for this pull, linked through their product stewardship page. If you are supplying a California project or a multi-family job there, plan on that notice accompanying the hardware.

The Northport 206 is offered in Satin Nickel, Polished Chrome, Ancient Bronze, Brushed Bronze, Brushed Nickel, Matte Black, Polished Nickel and Signature Satin Brass. For a bar-profile companion, the Orca CK-12001 T-pull bar is stocked in satin nickel, and the Emtek Bar cabinet pull from the Schaub Collection is a bar series item. Finishes from different manufacturers are named similarly but are not guaranteed to match visually - order one of each and compare under the room's lighting before committing the run.

No - those are unrelated parts. The Schaub 206 Northport is a cabinet pull that mounts with 8/32 x 1 inch screws through the door or drawer front. The SDC SP50 is a 50mm spindle used in door control hardware, not cabinet hardware. If a spindle showed up on the same order as the 206, it belongs to a passage or lock assembly, not the pull.
