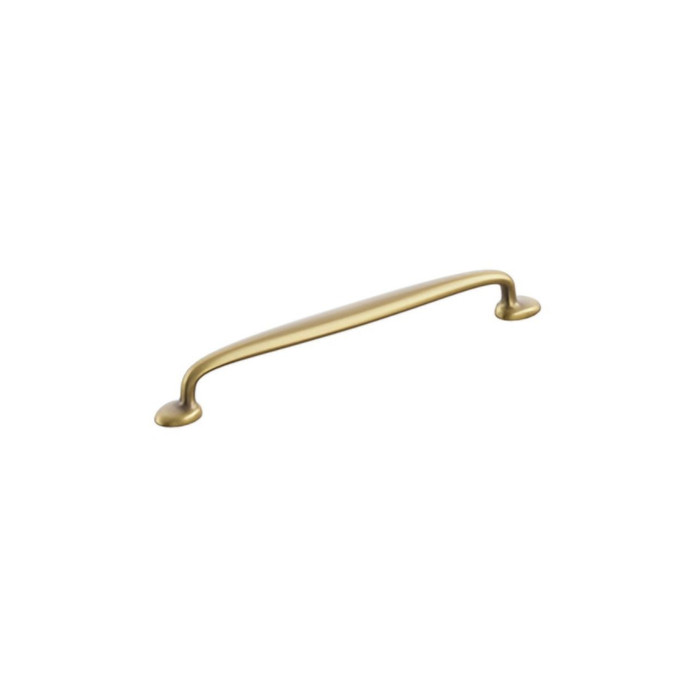

Schaub 211058 Avenue Cabinet Appliance Pull with 12" Center to Center and Standard Mounting

The Avenue 211058 mounts on 12 inch center-to-center holes. Overall length is 14-3/8 inches, so the posts sit about 1-3/16 inches in from each end. If you are replacing an existing appliance pull, measure hole to hole (center of one screw to center of the other), not end to end, or you will come up almost two and a half inches long.

The 211058 uses 1/4-20 machine screws, 1 inch long, which is the appliance-pull thread rather than the 8-32 used on ordinary cabinet pulls. One inch of screw covers a standard 3/4 inch panel door with thread left to catch. On a thicker custom panel or an integrated fridge door with a heavy front, you will need longer 1/4-20 screws cut to your panel thickness. Confirm the door prep is bored for 1/4 inch shanks, not the smaller 8-32 clearance hole.

Projection is 1-7/8 inches on the Avenue 211058. That is the grip clearance you get behind the bar, which matters in a galley kitchen or anywhere the refrigerator door swings toward a walkway or an island. It also sets the reveal if you are matching the projection of other pulls already installed on the run of cabinets.

Five: Matte Black, Polished Nickel, Unlacquered Brass, Satin Brass, and Vintage Brass. Three of those are brass tones that read differently in a kitchen. Satin Brass is a stable warm brushed tone, Vintage Brass is the darker aged look out of the box, and Unlacquered Brass ships bright and darkens on its own with handling, which is either the point or a problem depending on whether the client expects it to stay put.

Avenue is a traditional-style collection, so it sits alongside period and transitional kitchens rather than flat-panel modern. If the rest of the run is going contemporary, the Omnia 1968, 1969, 1970 and 1971 Cabinet Pull series are forged solid brass modern pulls, and the Deltana SBP Series is a square bar pull in solid brass. Emtek also sells the Schaub Collection under its own catalog, including the Alexander, Art Deco and Bar cabinet pulls, if you want a different Schaub-designed profile on the smaller doors.

Two, one per door, and a third if the freezer drawer below is also getting a 12 inch pull. Each 211058 is a single pull with two 1/4-20 mounting posts. On a French door unit the two upper pulls face each other, so check that the 1-7/8 inch projection clears the handle on the adjacent door when both are closed.

The Schaub Avenue 211058 is a traditional style appliance pull in brass. If the kitchen calls for a modern profile in the same base metal, the Omnia 1968/102 is a modern cabinet pull in forged solid brass with 4 inch center-to-center spacing, and the Omnia 1969 is a modern forged solid brass pull with a 1-3/16 inch projection. Both are cabinet pulls rather than appliance pulls, so they cover drawer and door fronts at much shorter spacing than the Avenue's 12 inch center-to-center. Use the Omnia pulls on cabinetry and the Avenue on the refrigerator or panel-front appliance door.

For a plainer bar profile, the Deltana SBP35 is a modern square bar pull at 3-1/2 inch in heavy-duty solid brass, and the Orca Hardware CK-12001 is a T-pull bar with a 2 inch bar width in steel, satin nickel. Both are short-span pulls rather than the Avenue's 12 inch center-to-center appliance span, and the Orca CK-12001 is steel where the Avenue is brass. Specify the Deltana or Orca where a straight utilitarian bar is wanted on cabinetry, and keep the Avenue where a traditional appliance-length pull is called for.

The Avenue 211058 covers the appliance fronts at 12 inch center-to-center. For the drawer banks, the Trimco 553 series drawer pulls are 3 inch center-to-center, and the Trimco 562 series comes in 3-1/2 inch, 4 inch and 96mm center-to-center options. The Omnia 1970 and Omnia 1971 are modern forged solid brass pulls with 1-1/4 inch and 1-3/16 inch projections respectively, which sit close to the Avenue's 1-7/8 inch projection if you want the hand clearance to read consistently down the run.

Yes. Schaub publishes a Proposition 65 warning for California residents on the 211058, linked through their product stewardship page. If you are specifying for a California multi-family or commercial project where Prop 65 disclosure is part of the submittal package, that warning needs to travel with the product data.
