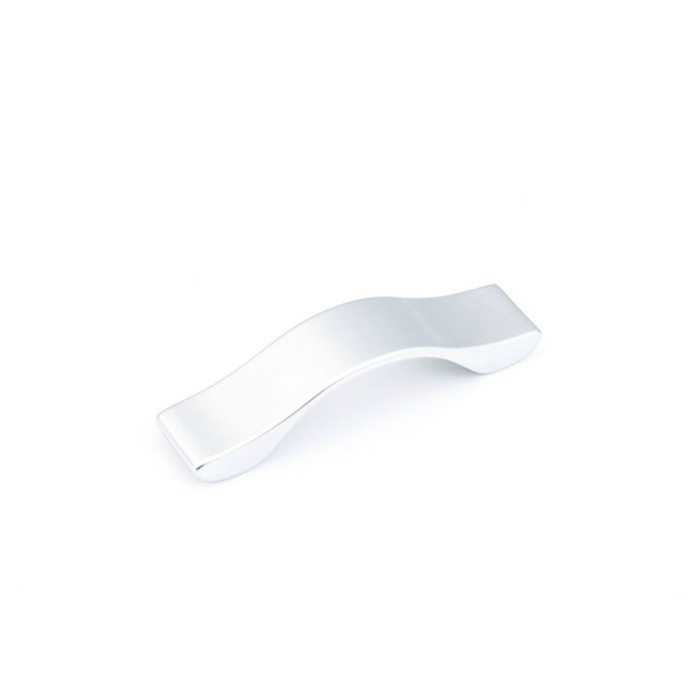

Schaub 244-064 64mm Center to Center Wave Cabinet Pull

It is tapped M4 metric, not 8-32. Standard US cabinet screws will not thread into it. Use the M4 machine screws supplied or sourced to match, and pick a length that suits your door or drawer front thickness.

The Schaub 244-064 Wave cabinet pull is built on a zinc base material with a 64 mm center-to-center spacing and a 7/8 inch projection. Where a specification calls for solid brass, the Omnia 1968/102 modern cabinet pull is forged solid brass with 4 inch center-to-center spacing, and the Deltana SBP35 modern square bar pull is a heavy-duty solid brass pull at 3-1/2 inches. Note the center distances differ from 64 mm, so drawer fronts drilled for the Schaub would need new boring unless you are working on new fronts.

The Schaub 244-064 Wave pull projects 7/8 inch off the face of the door or drawer. For more hand clearance, the Omnia 1970 modern cabinet pull carries a 1-1/4 inch projection, and both the Omnia 1969 and Omnia 1971 are forged solid brass with a 1-3/16 inch projection. Those deeper projections are the usual choice where gloves are worn or where a thick drawer edge crowds the grip.

Not a drop-in one. The Schaub 244-064 is drilled at 64 mm center to center with M-4 metric screws. The Trimco 553 series drawer pulls are 3 inch center to center, and the Trimco 562 series offers 3-1/2 inch, 4 inch and 96 mm center to center. None of those match 64 mm, so existing holes would not line up. The 562 in its 96 mm option is the metric choice if you are standardizing a facility on metric boring but want a larger grip.

Projection is 7/8 inch. That is enough finger clearance for a gloved or full-hand grip on drawers, and it keeps the pull clear of adjacent doors in a corner cabinet run. In tight galley layouts or next to an appliance door swing, measure the 7/8 inch before you commit.

Four finishes: Satin Nickel, Polished Chrome, Matte Chrome, and Matte Black. That covers the usual multi-family and spec-home palettes, and since all four are the same 244 casting on 64mm centers, you can swap finishes across units without changing the drilling.

Zinc is the base material, finished over. If your spec calls for forged solid brass, look at the Omnia 1968, 1969, 1970 or 1971 modern pulls, or the Deltana SBP35 square bar pull, all of which are solid brass.

Yes, and the styling lines up more closely than you might expect. Emtek sells its cabinet pulls under the Schaub Collection, including the Emtek 8405 SELECT cabinet pulls, the Emtek Bar cabinet pull, the Emtek Alexander cabinet pull and the Emtek Art Deco cabinet pull, all catalogued as cabinet knob/pull. The Schaub 244-064 is a contemporary Wave collection pull, so it pairs most naturally with the Bar or SELECT lines rather than the Art Deco series. Confirm finish names match across the two brands before committing a full run.

The Schaub 244-064 is a two-hole cabinet pull bored at 64 mm center to center. A knob takes a single hole instead. The Orca Hardware Bachelor Collection round cabinet pull knob CK-15030 is 1-1/4 inch diameter, the CK-16030 is a round ring knob at the same 1-1/4 inch diameter, and the Blackcomb Collection CK-17025 is a square knob at 25 mm diameter. Knobs are common on upper doors with pulls kept on drawers, so many jobs run both.

The Schaub 244-064 Wave pull uses a zinc base with a 3-5/8 inch overall length. Where casework sees heavy daily use, the Deltana SBP35 modern square bar pull is described as heavy-duty solid brass at 3-1/2 inches, and the Orca Hardware CK-12001 T-pull bar is a steel pull with a 2 inch bar width in satin nickel. Steel and solid brass bodies are the usual specification for institutional and multi-family casework.

The 244-064 is the 64mm center-to-center size at 3-5/8 inches overall. For wide drawer fronts you would step up to a longer center-to-center in the same Wave collection rather than stretching this one. Keep the M4 thread in mind when you order screws for the thicker drawer fronts.

Yes, pairing pulls on drawers with knobs on doors is common. Schaub is carried under the Emtek SELECT and Schaub collection lines if you want a matched knob, and Orca's Bachelor and Blackcomb collections offer round and square cabinet knobs in 1-1/4 inch and 25mm sizes if you are mixing brands. Knobs use a single hole, so the 64mm boring on the Wave does not carry over.
