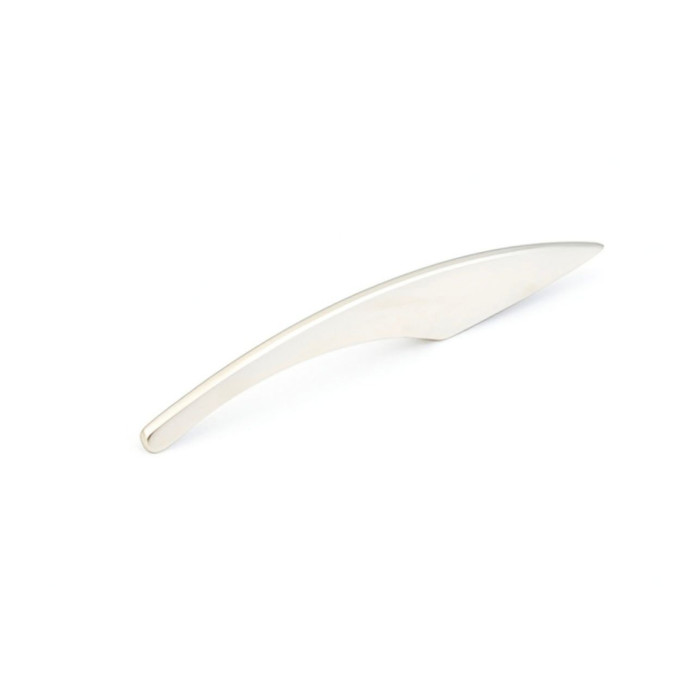

Schaub 307 32mm Center to Center Sorrento Arched Cabinet Pull

Yes. The Schaub 307 Sorrento arched pull is drilled at 32mm center to center, which is the standard metric two-hole spacing on European-style cabinet doors and drawer fronts (roughly 1-1/4 inches). If your existing holes measure 32mm from center to center, it drops straight in with no new drilling.

It ships with M-4 metric machine screws, 1 inch long. That length covers a typical 3/4 inch drawer front or door with thread to spare. If you are mounting through a thicker slab, a false front, or a drawer box with an applied front, you will need longer M-4 metric screws, not the more common US 8-32.

The base material is zinc, finished in one of six plated colors. That is a cast zinc pull rather than a forged brass one. If your spec calls for solid brass, the Omnia 1970 Modern Cabinet Pull is forged solid brass with the same 1-1/4 inch projection, and the Deltana SBP35 square bar pull is heavy-duty solid brass.

The Omnia 1970 modern cabinet pull is forged solid brass with a 1-1/4 inch projection, matching the 1-1/4 inch projection of the Schaub 307 Sorrento arched pull. The Schaub 307 is a zinc base material pull, so the Omnia 1970 is the option when a specification calls for forged solid brass while keeping the same standoff from the door or drawer face. Omnia also offers the 1969 and 1971 modern pulls, both forged solid brass at 1-3/16 inch projection, if a slightly tighter finger clearance is acceptable.

The Schaub 307 Sorrento arched pull is drilled at 32 mm center to center, which is sized for doors and narrow drawers. For wider drawer fronts already bored at a longer spacing, the Omnia 1968/102 modern cabinet pull is a forged solid brass pull with 4 inch center-to-center spacing, and the Trimco 562 series drawer pulls come in 3-1/2 inch, 4 inch, and 96mm center-to-center options. Trimco also lists the 553 series at 3 inch center to center for an intermediate spacing.

Projection is 1-1/4 inches, so there is enough clearance behind the arched grip for a gloved hand and the pull sits proud of the door face by that amount. Worth checking on an inside corner cabinet or where a door swings past an adjacent appliance handle.

Six finishes: Satin Nickel (SN), Polished Chrome (PC), Black Chrome (BC), Matte Black (MB), Milano Bronze (MBZ) and Milano Silver (MSV). For a full kitchen or a multi-unit build, order all openings in one finish code and one production run so the plating matches across doors and drawers.

The Schaub 307 is a contemporary arched pull from the Sorrento collection with a 6-3/8 inch overall length. For a straight-bar profile instead of an arch, the Deltana SBP35 is a modern square bar pull at 3-1/2 inch in heavy-duty solid brass, and the Emtek Bar cabinet pull in the Schaub collection is a bar-profile cabinet knob/pull. The Orca Hardware CK-12001 is a steel T-pull bar with a 2 inch bar width in satin nickel, which is a different mounting profile again.

Not on the same boring. The Schaub 307 Sorrento pull mounts on two holes at 32 mm center to center using M-4 metric screws 1 inch long, while knobs take a single hole. If a single-hole knob is wanted for some of the openings, the Orca Hardware Bachelor collection CK-15030 round knob and CK-16030 round ring knob are both 1-1/4 inch diameter, and the Blackcomb CK-17025 is a 25mm square knob. Mixing them with the 307 means drilling new fronts or filling one hole.

They are different products. The Schaub 307 is the Sorrento arched cabinet pull, 32 mm center to center with a 6-3/8 inch overall length and zinc base material. Emtek's Schaub Collection is a separate group of cabinet knobs and pulls with its own series names, including the Emtek 8405 SELECT, the Alexander, the Art Deco, and the Bar cabinet pull. If a drawing calls out the Sorrento arch specifically, an Emtek Schaub Collection series is not a drop-in for the same look.

Sorrento is a contemporary arched profile - the grip curves away from the face rather than running straight - and it reads wider than its 32mm hole spacing because the body flares to 6-3/8 inches overall. If you want the plain tube look instead, the Emtek Bar Cabinet Pull or the Orca CK-12001 T-pull bar are straight bar styles.

The Sorrento 307 is a pull only, so knobs come from a separate line. The Orca Bachelor Collection round cabinet knob at 1-1/4 inch diameter and the Blackcomb square knob at 25mm are single-hole options to mix in. Match on finish family rather than assuming plating shades cross brands exactly.

The Schaub 307 Sorrento arched pull is a contemporary style pull. For a more decorative or period look, the Emtek Art Deco cabinet pull in the Schaub Collection and the Emtek Alexander cabinet pull are both cabinet knob/pull products with their own design series. The Trimco 553 series drawer pulls at 3 inch center to center are a plainer institutional drawer pull if the application is casework rather than a residential kitchen.
