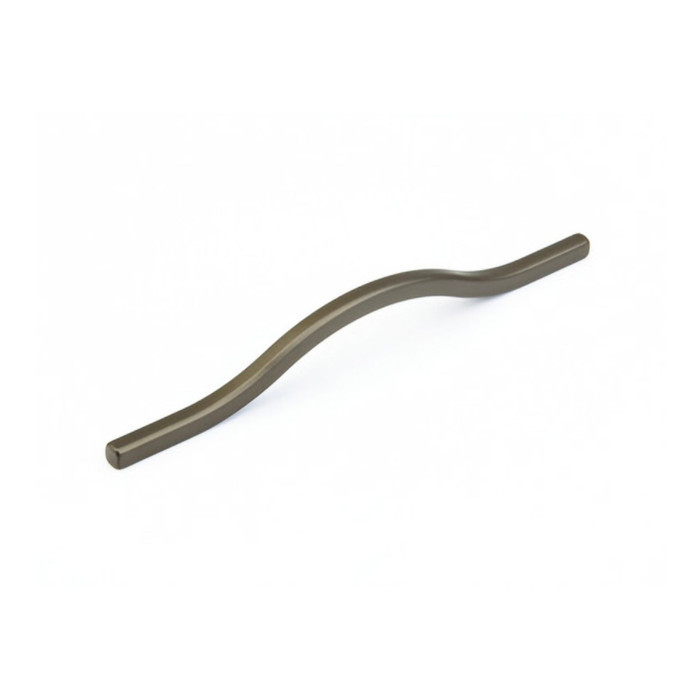

Schaub 309 160mm to 192mm Center to Center Sorrento Arched Cabinet Pull

Yes. The Schaub 309 Sorrento arched pull is a dual center-to-center pull, drilled for both 160mm and 192mm hole spacing. That means it drops onto existing cabinetry bored at either spacing without redrilling, which is useful when a kitchen has a mix of door and drawer boring. Overall length is 8-1/4 inches, so plan for at least that much face width on the drawer front.

It takes M-4 metric machine screws, 1 inch long. That length covers standard 3/4 inch cabinet door and drawer fronts with room for the post. If you are mounting through a thicker slab front or a front with an applied panel, you will need longer M-4 screws, since the thread is metric and not the 8-32 used on most domestic hardware.

The Schaub 309 Sorrento arched pull has a zinc base material. If solid brass construction is the priority, the Omnia 1970 modern cabinet pull is forged solid brass and carries a 1-1/4 inch projection, close to the 1-1/8 inch projection of the Schaub 309. The Omnia 1969 and Omnia 1971 are also forged solid brass modern pulls, each at 1-3/16 inch projection. All three are modern-styled bar-type pulls rather than the arched Sorrento profile, so the visual line across a run of cabinet fronts will change.

The Schaub 309 Sorrento is an 8-1/4 inch overall pull drilled at 160/192 mm center to center, which needs a wide drawer face. For narrow fronts, the Trimco 553 series drawer pull is a 3 inch center-to-center pull, and the Trimco 562 series offers 3-1/2 inch, 4 inch, and 96 mm center-to-center options. The Deltana SBP35 modern square bar pull is 3-1/2 inch and solid brass. These are short bar and drawer pull profiles rather than the arched Sorrento shape.

No. The Omnia 1968/102 modern cabinet pull is drilled at 4 inch center to center, while the Schaub 309 Sorrento uses 160/192 mm center-to-center spacing with M-4 metric screws 1 inch long. Swapping one for the other means new boring in the cabinet face. The Omnia 1968/102 is forged solid brass against the Schaub 309's zinc base.

Projection is 1-1/8 inches from the face of the door, with a 1-1/2 inch base. The arched profile means the center of the grip sits out further than the feet, so you get a full grip even with gloves on. On an inset door next to a wall return, check that 1-1/8 inch clears before the door swings.

Six: Satin Nickel, Polished Chrome, Black Chrome, Matte Black, Milano Bronze, and Milano Silver. Milano Bronze and Milano Silver are Schaub's own tones, so if you are matching across a whole kitchen or a multi-unit build, order all the pulls in one go rather than mixing lots.

Yes - a common layout runs long pulls on drawers and knobs on doors. The Schaub 309 Sorrento is a contemporary arched pull at 160/192 mm center to center. For the knob side, the Orca Hardware Bachelor Collection round cabinet knob is 1-1/4 inch diameter, the Bachelor Collection round ring knob is also 1-1/4 inch diameter, and the Blackcomb Collection square knob is 25 mm diameter. The square Blackcomb knob reads more angular than the arched Sorrento line; the round Bachelor knobs follow the curve more closely.

Emtek's SELECT cabinet line includes pulls in the Schaub Collection, so styling carries across. The Emtek 8405 Select cabinet pull is part of the Emtek SELECT series in that Schaub Collection, and the Emtek Bar, Alexander, and Art Deco cabinet pulls are also Schaub Collection offerings. The Schaub 309 itself is from the Sorrento collection with a contemporary arched profile, so the Emtek Bar pull is the nearer match in feel while Alexander and Art Deco are more decorative.

The Schaub 309 Sorrento has a zinc base material and a 1-1/2 inch base dimension. Where a heavier material is specified for commercial casework, the Deltana SBP35 modern square bar pull is described as heavy-duty solid brass at 3-1/2 inch. The Orca Hardware CK-12001 T-pull bar is steel with a 2 inch bar width in satin nickel. Both are considerably shorter than the 8-1/4 inch overall length of the Schaub 309, so a drawer run sized for the Sorrento will look different.

The Schaub 309 Sorrento arched pull is offered in Satin Nickel (SN) along with Polished Chrome (PC), Black Chrome (BC), Matte Black (MB), Milano Bronze (MBZ), and Milano Silver (MSV). If a shorter satin nickel pull is needed on the same job, the Orca Hardware CK-12001 T-pull bar is a steel pull supplied in satin nickel. Finish names across manufacturers are not standardized, so confirm a sample against the existing hardware before committing a full run.

Contemporary. The Sorrento collection reads as a clean arched bow with no beading or detail work, so it sits with flat-panel and slab fronts. If the job is period or decorative, the Emtek Art Deco and Alexander cabinet pulls in the Schaub Collection are the more ornamented options.
