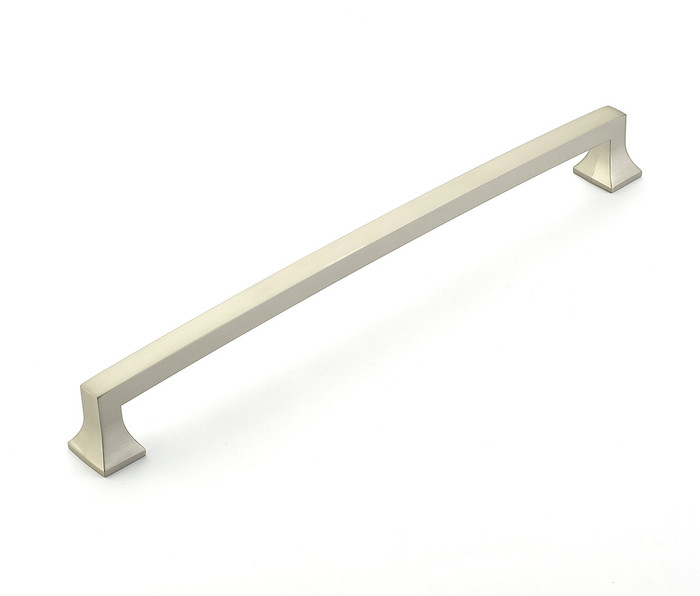

Schaub 539 15" Center to Center Menlo Park Arched Appliance Pull
Style: Transitional
Collection: Menlo Park
Function: Appliance Pull
Projection: 3/4
Base Material: Zinc
CA Residents: Proposition 65 Warning
Base Dimensions: 1-1/8
Overall: 16-1/8
Center to Center: 15"
Thread / Screw Size: 1/4-20
Manufacturer Resources
Schaub Product Catalog
Product Specs
- Subcategory:
- Cabinet Pulls
- Collection:
- Menlo Park
- Product Type:
- Cabinet Pulls
- Product Group:
- Cabinet Hardware
- Product Subgroup:
- Cabinet Pulls
- MAP Policy:
- Yes
- Overall:
- 16-1/8"
- Thread / Screw Size:
- 1/4-20"
- Product Function:
- Appliance Pull
- Product Dimension:
- 1-1/8"
- Product Projection:
- 3/4"
- Product Style:
- Transitional
- Product Material:
- Zinc
- Product Category:
- Cabinet Hardware
- (CTC) Center-to-Center:
- 15"
- Department:
- Door Hardware
Schaub 539-SSB – Frequently Asked Questions
1) Will the Schaub 539 appliance pull line up with my existing 15 inch mounting holes?
Yes, the Menlo Park 539 is a 15 inch center-to-center pull, so it drops onto an existing 15 inch hole pattern with no new drilling. Overall length is 16-1/8 inches, meaning it extends about half an inch past each mounting hole, so check you have that much clearance at the edges of the panel.
2) What screws does the Schaub 539 Menlo Park pull take, and will standard cabinet screws work?
It takes 1/4-20 threaded screws, which is the heavier appliance-pull thread, not the 8-32 machine screw used on ordinary cabinet pulls and knobs. If you are replacing a knob or a small drawer pull, the existing screws will not thread into this one and the holes will likely need to be opened up for the larger screw.
3) Can the Schaub 539 be mounted back to back on a glass or full-access panel?
Yes. The 539 is offered in a back-to-back configuration as well as the standard single-side mount, in all seven finishes. Back to back pairs two pulls through the panel on shared fasteners, which is what you want on a glass door or a pass-through where both faces need a grip. Specify the back-to-back option at the time of order, since it is a different build than the single pull.
4) What can I use instead of the Schaub 539 appliance pull on a standard cabinet door or drawer front?
The Schaub 539 is a 15 inch center-to-center appliance pull with a 16-1/8 inch overall length, which is sized for refrigerator and freezer panels rather than a base cabinet drawer. For normal drawer fronts, shorter pulls are the right call: the Trimco 553 series drawer pull is 3 inch center-to-center, the Trimco 562 series offers 3-1/2 inch, 4 inch and 96mm center-to-center options, the Deltana SBP35 is a 3-1/2 inch modern square bar pull in solid brass, and the Omnia 1968/102 is a forged solid brass modern pull at 4 inch center-to-center.
5) How much does the Schaub 539 stand off the door, and will my hand fit behind a 15 inch appliance pull?
Projection is 3/4 inch, with a base dimension of 1-1/8 inch where it meets the panel. That 3/4 inch is measured to the arch, so grip clearance is on the shallow side compared with a heavy bar pull. On a refrigerator or panel-ready door that swings tight to an adjacent cabinet, the low projection is an advantage; if you want a fuller hand grip, a deeper-projection pull like the Omnia 1970 at 1-1/4 inch is the other direction to look.
6) What finishes does the Schaub Menlo Park 539 appliance pull come in?
Seven: Satin Nickel, Brushed Nickel, Polished Nickel, Polished Chrome, Matte Black, Ancient Bronze, and Signature Satin Brass. All seven are available in both the single and the back-to-back configuration, so a kitchen mixing glass-door and appliance-panel applications can stay in one finish across the room.
7) Is a 15 inch appliance pull the right size for a standard refrigerator panel, or should I go shorter?
Fifteen inches center to center is a full-height appliance size, meant for panel-ready refrigerator, freezer and tall pantry doors where a short pull looks undersized. For dishwasher fronts, drawer banks and base cabinets you want a much shorter center-to-center, in the 3 to 4 inch range such as the Trimco 553 at 3 inch or the Trimco 562 at 3-1/2 and 4 inch. Measure your existing hole spacing before you commit, because 1/4-20 appliance holes are not interchangeable with small pull holes.
8) What looks like a substitute for the Schaub 539 but will not work?
Cabinet knobs will not replace it. The Orca Hardware Bachelor Collection CK-15030 round knob and CK-16030 round ring knob are 1-1/4 inch diameter, and the Blackcomb CK-17025 square knob is 25mm diameter, all single-point knobs. The Schaub 539 spans two mounting holes at 15 inch center-to-center. The SDC SP50 50MM spindle is a door control component, not cabinet hardware at all.
