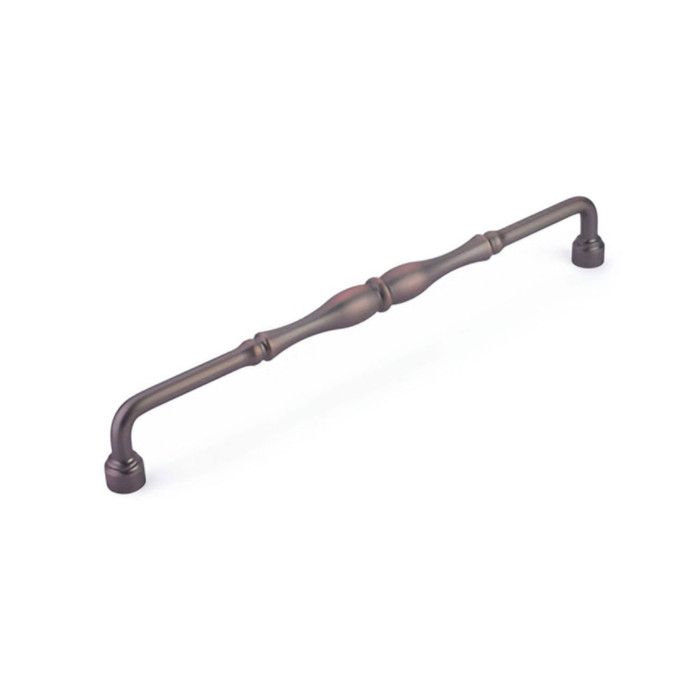

Schaub CS7495 Concealed Surface Mounted 15" Center to Center Colonial Appliance Pull

Yes, if your holes are drilled 15 inches apart on center. The CS7495 Colonial appliance pull is a 15 inch center-to-center pull with a 16 inch overall length, so it needs 15 inch spacing exactly. It takes 1/4-20 machine screws, which is the usual appliance pull thread, so the existing screws often work if they are the right length for your panel.

Projection is 2-1/4 inches from the face of the door, with a 7/8 inch base dimension where the posts land. That is a deep grip, comfortable for pulling a heavy panel-ready refrigerator or freezer, but check your door swing clearance against an adjacent wall or run of cabinets before you commit to the location.

Yes. At 15 inches on center and 2-1/4 inches of projection, the CS7495 is sized for panel-ready refrigerator, freezer, and dishwasher fronts. For standard drawers and doors, drop to a short cabinet pull: ZenSupply carries Trimco 553 Series drawer pulls at 3 inch centers and the 562 Series in 3-1/2 inch, 4 inch, and 96mm, or the Deltana SBP35 at 3-1/2 inches in solid brass.

The mounting screws do not show on the face of the pull. It mounts to the surface of the door or panel and the fasteners are hidden inside the posts, so you see only the brass bar and feet. You still need through-holes at 15 inch centers for the 1/4-20 screws.

Solid brass base material. That matters on a 16 inch pull carrying a panel-ready appliance door that gets yanked daily, and it is why the plated and living finishes hold up rather than flaking off a die-cast body.

Eight finishes: Oil Rubbed Bronze, Satin Nickel, Polished Chrome, Antique Nickel, Aurora Bronze, Flat Black, Polished Nickel, and Polished Brass. Because it is part of the Colonial collection, the smaller knobs and pulls in that same collection carry the matching finishes, so you can run one look across drawers, doors, and the appliance panels.

The CS7495 is a traditional Colonial style bar. For a modern square or round profile in forged solid brass, Omnia's 1968, 1969, 1970, and 1971 cabinet pull series are the straight alternative. Emtek also sells the Schaub Collection through its SELECT line, including the Bar, Alexander, and Art Deco cabinet pulls, if you want a Schaub-designed pull with a cleaner shape.

The Schaub CS7495 is a Colonial collection appliance pull in a traditional style, solid brass, with a 15 inch center to center and 16 inch overall length. If the kitchen is going modern, the Deltana SBP35 is a heavy-duty solid brass square bar pull at 3-1/2 inch, and the Omnia 1968/102 is a forged solid brass modern cabinet pull with 4 inch center to center spacing. Both are far shorter than the CS7495, so they suit drawers and doors rather than a full-height refrigerator or freezer panel.

The Schaub CS7495 is a pull only, so cabinet knobs come from a separate part. Orca Hardware's Bachelor Collection CK-15030 is a round cabinet knob at 1-1/4 inch diameter, and CK-16030 is the round ring version at the same 1-1/4 inch diameter; the Blackcomb CK-17025 is a square knob at 25mm diameter. Emtek's Schaub Collection also lists cabinet knob and pull options such as the 8405 Select and the Alexander series if you want a single-family look across doors and drawers.

They are different products. The Orca Hardware CK-12001 is a steel T-pull bar with a 2 inch bar width in satin nickel, while the Schaub CS7495 is solid brass with a 15 inch center to center, 2-1/4 inch projection, and 1/4 x 20 thread. If the panel is already drilled for the CS7495 on 15 inch centers and tapped for 1/4-20 studs, the Orca bar will not drop into the same prep, and the base material differs from brass.

The Schaub CS7495 projects 2-1/4 inch from the face of the panel. For a shallower grip, the Omnia 1969 and Omnia 1971 are forged solid brass modern cabinet pulls with a 1-3/16 inch projection, and the Omnia 1970 projects 1-1/4 inch. All three are shorter-format cabinet pulls rather than appliance pulls, so they suit door and drawer fronts in narrow aisles.

The pull uses 1/4-20 threaded screws. Screw length depends on the thickness of the custom panel or appliance door you are fastening through, so measure the panel and order screws to suit if the supplied hardware does not reach. Thread size is fixed at 1/4-20, so replacement screws are easy to source.

Yes. Schaub publishes a Proposition 65 warning for this solid brass pull for California residents, and links its product stewardship information from the product detail.

The Schaub CS7495 carries the Colonial profile with a 2-1/4 inch projection and a 7/8 inch base. For a different visual family in the same Schaub design line sold under Emtek, the Art Deco Cabinet Pull and the Bar Cabinet Pull are both Schaub Collection cabinet knob/pull items, as is the Alexander series. They differ from the CS7495 in profile styling, so confirm the center to center you need before ordering.
