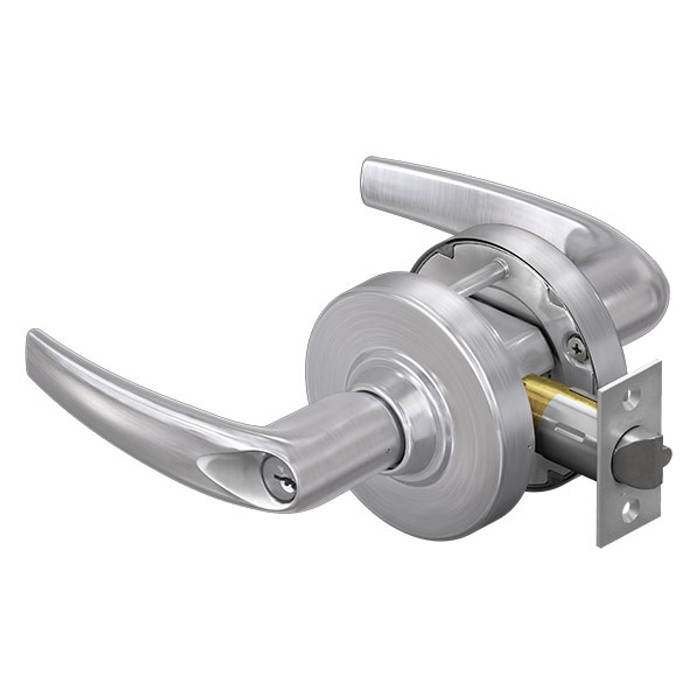

Schlage ALX80 - Athens Storeroom Lock - Grade 2 Cylindrical Keyed Lever Lock

Schlage ALX80 - Athens Storeroom Lock - Grade 2 Cylindrical Keyed Lever Lock

(No reviews yet) Write a Review

Model: ALX80P ATH 626
From the ALX_Series Collection
$402.00
$202.41
Selected Finish is
Selected Cylinder is
Selected Keying is
Selected Latch is
Selected Strike is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$402.00
$202.41
Adding to cart… The item has been added
This item qualifies for Free Shipping!
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schlage ALX80 - STOREROOM LOCK

  • Key cylinder outside; push/turn button inside; deadlatch
  • Outside lever always fixed
  • Key can retract the latch
  • Field selectable Vandlgard feature
  • Inside lever always free for immediate egress



Schlage ALX SERIES OVERVIEW

The proven AL Series has evolved to ALX

As a Grade 2 lock, the AL Series has always offered a combination of strength and durability alongside Schlage trusted key system options at a price point favorable to any application. Though these qualities remain, the lock has changed. ALX Series' features now deliver flexibility and value beyond strength and security. X Factor qualities, born from modular design, define a lock that exceeds expectations. AL Series' evolution to the ALX Series is a revolution in lock design.

Why modular design is important

The Schlage ALX Series gives you the ability to use it as you would any other lock: ordered and delivered as a complete, configured product ready for installation. However, in its new modular design, ALX Series offers you the flexibility to utilize the separate components of chassis, function and lever packaged kits to create a lock to meet your needs on demand. So whether you are a distributor wanting to offer same day pickup on configured locks in uncommon levers and finishes, a locksmith wanting truck stock solutions that eliminate call backs, or a facility manager wanting to repurpose rooms and change lock functions without the expense of new hardware, ALX Series can work for you.



FEATURES & BENEFITS

The Schlage ALX Series is a grade 2 lock unlike any other. X Factor qualities define a lock designed to exceed expectations:

Exceeds grade 2 strength

  • Stainless steel latchbolt



Expanded cylinder support

  • Accepts all Schlage plus five competitive cylinder formats
  • High security locking when used with Primus XP UL 437 listed cylinders



Maximum utility

  • One chassis fits all functions and cores to minimize inventory
  • Flexible purchase options: buy as factory configured, lock less levers, or as kits for on site



Exceptional durability

  • Accommodates 1 3⁄8" to 1 3⁄4" door thickness with minimal chassis adjustment Grade 1 compression springs
  • Captured screws in latch, strike and inside spring cage eliminate small, loose parts



Extreme installation simplicity

  • Deep-drawn spindle with 5 points of lever engagement prevents droop and wobble
  • Grade 1 compression springs



Function flexibility

  • Patent pending chassis design allows quick, in-field function set up
  • Field reversible Vandlgard® to non-Vandlgard locked lever engagement



Expansive lever offering

  • 10 total designs
  • Perfectly suited to Schlage ND Series grade 1 locks



FUNCTIONS

View the ALX Series catalog for an in-depth description of all available functions.

Non-keyed functions

  • ALX10 ANSI F75 Passage Lock
  • ALX40 ANSI F76 Privacy Lock
  • ALX44 Hospital Privacy Lock
  • ALX170 Single Dummy Trim
  • ALX172 Doublle Dummy Trim



Keyed functions

  • ALX50 ANSI F82 Entrance/Office Lock
  • ALX53 ANSI F109 Entrance Lock
  • ALX70 ANSI F84 Classroom Lock
  • ALX80 ANSI F86 Storeroom Lock



Keyed functions

Schlage ALX Series suites perfectly with ND Series grade 1 locks which offer an additional 15 functions plus 4 electrified options.



CERTIFICATIONS & TESTING

View the ALX Series catalog to see all specifications and certifications.

Certifications

  • Tested and certified under ANSI/BHMA A156.2-2011 Series 4000, Grade 2
  • UL/cUL listed: All locks 3-hour, A label firedoor 4' x 8' or 4' x 10' single door and 8' x8' pair doors; 90-minute 8' x 10' pair doors with 3/4" grade 1 latch options
  • Meets ADA requirements
  • Florida Building Code and Miami Dade hurricane requirements compliants
  • California Referenced Standards Code: all levers with a return to door of 1/2" (64 mm) or less comply



DESIGNS & FINISHES

View the ALX Series catalog to see all design and finish options.

Depending on design, material options include:

  • Ten lever designs
  • Two rose designs: both predicated on lever choice
  • Ten finish options



NOTE: Contact our Sales Center for Split Finishes and Split Styles. These have extended manufacturer lead times.



DOWNLOADS & RESOURCES



Technical resources



Manufacturer Resources

Product Specs

Subcategory:
Cylindrical Lever Locks
Series:
ALX Series
Grade:
Grade 2
Duty Level:
Heavy Duty
Handle Type:
Lever
Keyed Function:
Single Cylinder
Warranty:
10 Year Limited
Keys Included:
2
Standard Latch:
47267042: Dead Latch - 2-3/4" Backset - Square Corner, 1-1/8" x 2-1/4", Non-Restoring Function
Standard Strike:
47267101: ANSI, No Box, 1-1/4" x 4-7/8" (1-3/16" Lip Length)
ANSI/BHMA:
F86
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Leversets
Keyed:
Yes
Electronic:
No
Commercial/Residential:
Commercial
Function Description:
Outside knob/lever always locked/rigid. Latchbolt retracted by key in outside knob/lever or by rotating inside knob/lever. Inside knob/lever always free.
Lock Type:
Cylindrical
Lock Function:
Storeroom
Handle Design:
Athens Lever
Product Attribute:
Cylindrical Locks
Segment:
Door Hardware
Tags:
alx80p
Product Model:
ALX80
Collection:
ALX_Series
Backset (Distance):
2-3/4",Strike,Default - 47267101: ANSI
Product Function:
Storeroom
Door Hand Direction:
Non-Handed
Product Category:
Mechanical Locks
Product Substrate:
Zinc and Steel

Schlage ALX80P ATH 626 – Frequently Asked Questions

1) What is a storeroom lock function and how does it work?
A storeroom lock keeps the outside lever locked at all times. Entry requires a key from outside. Inside lever is always unlocked for free egress. Ideal for storage rooms, closets, and spaces requiring controlled access.
2) What door thickness does the Schlage ALX80 Athens fit?
Standard cylindrical locks typically fit 1-3/8" to 1-3/4" door thickness. Check manufacturer specifications for exact range. Measure your door thickness before ordering to ensure proper fit.
3) Is this lock handed or reversible?
Most Schlage cylindrical locks are reversible for left or right hand doors. The lever can be oriented during installation. Verify door swing direction and check installation template for proper setup.
4) What grade rating does the ALX80 Athens have?
This is a Grade 2 cylindrical lock. Grade 2 provides commercial-duty performance suitable for medium-traffic applications. Offers good durability for offices, schools, and light commercial use.
5) What finishes are available for the Athens series?
Schlage typically offers finishes like satin chrome, bright brass, antique brass, and oil rubbed bronze. Check product specifications for exact finish options. Match existing hardware for consistent appearance.
6) Can I key this lock to match existing Schlage cylinders?
Yes, Schlage locks can be keyed alike or to existing systems. Consult a locksmith for rekeying services. Bring existing keys to match cylinder cuts. Master key systems also possible for facility management.
7) What backset does this lock require?
Standard backsets are 2-3/8" or 2-3/4" from door edge to center of cylinder hole. Measure existing door prep or use manufacturer template. Most cylindrical locks adjust for common backset dimensions.
8) How do I install the ALX80 Athens lock?
Use manufacturer template for hole locations. Standard 2-1/8" cross bore and 1" edge bore required. Install latch first, then lock body. Follow torque specifications. Test operation before final installation.
9) How do I maintain this cylindrical lever lock?
Clean regularly with mild soap and water. Lubricate cylinder and internal mechanisms annually with graphite or light oil. Check mounting screws periodically. Avoid harsh chemicals that can damage finishes.
10) What other Schlage commercial locks are similar to the ALX80?
Consider other Schlage AL series locks for different functions. ND series offers heavy-duty Grade 1 performance. Choose based on traffic level and security requirements for your application.
11) Will this lock work in high-moisture environments?
Standard cylindrical locks work best in controlled interior environments. For exterior or high-moisture applications, verify finish ratings and consider weather-resistant options. Proper door prep and weatherstripping help protect mechanisms.
12) What are the standard hole sizes for installation?
Standard prep requires 2-1/8" diameter cross bore through door face and 1" diameter edge bore for latch. Strike plate mortise in frame as shown on template. Use proper hole saw sizes for clean cuts.
