Schlage CO-100 Standalone Elec...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,363.00
$620.14

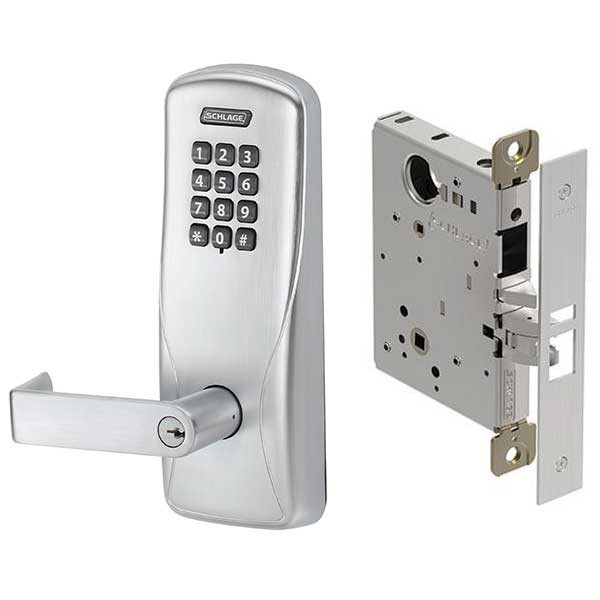

Schlage CO-100 Standalone Electronic Mortise Lock with keypad reader and privacy function, shown with mortise lock body — satin chrome finish

Schlage CO-100 Standalone Electronic Mortise Lock, Privacy Function, Keypad Reader

(1 review) Write a Review

Model: CO-100-MS-40-KP-TLR-626-P
From the CO-100 Series Collection
$1,363.00
$620.14
Selected Finish is
Selected Lever Style is
Selected Cylinder Type is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,363.00
$620.14
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schlage CO-100 Standalone Electronic Mortise Lock, Privacy Function, Keypad

The CO-100 is a standalone, battery-operated electronic mortise lock that uses 3-6 digit PIN codes as credentials. No network connection or software is required: an administrator programs the lock directly at the keypad to add or delete user PIN codes and adjust operating preferences. This listing covers the Privacy (Function 40) configuration, which keeps the inside lever free for egress at all times while a pushbutton on the interior trim disables exterior electronic access.

Cylindrical, mortise, and exit trim chassis options are available across the CO Series. Mechanical key override is standard and compatible with Schlage cylinders and many other OEM brands. The CO Series is also compatible with most major brands of exit devices.

Typical Applications

  • Restrooms, bathrooms, and dressing/fitting rooms
  • Maternity and nursing rooms
  • Workout rooms and other private rooms requiring occupancy indication
  • Visitor pass-through and common areas
  • Vestibules and reception area doors controlled by remote release
  • Pool gates, breezeways, and outdoor applications
  • Maintenance areas and supply closets/equipment rooms

Features

Security

  • Minimizes key distribution and preserves key system integrity over time
  • Privacy function: inside lever always free for egress; interior pushbutton disables exterior electronic access
  • Occupancy indication programmable option available on privacy function locks
  • Compatible with Schlage full complement of key cylinder options and many OEM cylinders
  • Compatible with most major brands of exit devices

Credential Management

  • Manages up to 500 unique 3-6 digit PIN codes with user rights stored on the lock
  • PIN codes issued and revoked at the keypad - no software required
  • Normal, toggle, pass-through, and freeze programming options
  • Compatible with existing master key system

Power and Maintenance

  • 4 AA batteries; up to 2-year battery life
  • Battery status indicator for easy maintenance
  • Tri-color LED indicators

Installation

  • Field-reversible handing
  • Door thickness: 1-3/4"
  • Standard strike: 1-3/16" lip, 1-1/4" x 4-7/8" square corner, box
  • Operating temperature: -31°F to 151°F

Finishes

  • 605 Bright Brass
  • 606 Satin Brass
  • 612 Satin Bronze
  • 619 Satin Nickel
  • 625 Bright Chrome
  • 626 Satin Chrome
  • 626AM Satin Chrome Antimicrobial
  • 643E Aged Bronze

Certifications and Standards

Certified

  • ANSI/BHMA A156.25 full outdoor (70 function)
  • ANSI/BHMA Grade 1
  • UL 294
  • UL 10C
  • UL Canada
  • FCC Part 15
  • ADA compliant

Meets or Exceeds

  • Cylindrical: ANSI/BHMA A156.2, Series 4000, Grade 1
  • Mortise: ANSI/BHMA A156.13, Series 1000, Grade 1
  • Exit trim: ANSI/BHMA A156.3

Downloads and Resources

Manufacturer Resources

Product Specs

Series:
CO Series
Grade:
Grade 1
Duty Level:
Heavy Duty
Standard Strike:
1-3/16" Lip, 1-1/4" x 4-7/8" square corner, box
Warranty:
2 Year
Product Group:
Mechanical Locks
Product Subgroup:
Mortise Locks and Trim
Product Type:
Mortise Locks
Subcategory:
Standalone
Batteries:
AA (4)
Battery Operated:
Yes
Commercial/Residential:
Commercial
Cylinder Included:
No
Electronic:
Yes
Lock Type:
Mortise
Power:
Battery Operated
Lock Function:
Privacy/Bed/Bath
Connection Type:
Standalone
Product Attribute:
Electronic Locks
Collection:
CO-100 Series
Product Function:
Privacy/Bed/Bath
Door Hand Direction:
Field Reversible
Door Thickness Range:
1-3/4"
Product Category:
Electronic Locks
Department:
Door Hardware

Schlage Electronics CO-100-MS-40-KP-TLR-626-P – Frequently Asked Questions

1) Does the Schlage CO-100 privacy lock come with a cylinder for key override?
The cylinder is not included. You order the CO-100 with the cylinder prep you need: B is SFIC prep less core, J is less cylinder for a Schlage 6-pin FSIC, L is less cylinder for Schlage or Falcon 6-pin key-in-lever, and P ships with a Schlage standard conventional cylinder. Mechanical key override is standard on the lock, and it will work with a Schlage cylinder or many other OEM brands, so an existing master key system can be carried over.
2) Do I have to specify handing when ordering a Schlage CO-100, and can it be changed on site?
Handing is a required selection at order: RH, LH, RHR, or LHR. That said, the CO-100 is field reversible, so if the opening turns out different from the drawing an installer can change the hand at the door instead of returning the lock. The BEST 45H mortise body and the Falcon MA101 are also field reversible if you want that flexibility in a mechanical lock.
3) What does the privacy function do on the Schlage CO-100 keypad lock, and can someone still get out if the batteries die?
Function 40 privacy keeps the inside lever free for egress at all times, so it is mechanical egress and nothing on the electronic side can trap an occupant. A pushbutton on the interior trim disables exterior electronic access while the room is occupied. Occupancy indication is a programmable option on the privacy locks. Mechanical key override on the outside is standard for staff access.
4) Will the Schlage CO-100 drop into my existing ANSI mortise strike prep?
The CO-100 uses a standard strike: 1-3/16 inch lip, 1-1/4 x 4-7/8 inch square corner, with box. That is the common ANSI mortise strike footprint, so a frame already prepped for a standard mortise lock will normally take it without new frame work. If your existing strike is a curved-lip or a non-standard face, plan on swapping the strike.
5) Does the Schlage CO-100 need to be wired or connected to access control software?
Neither. It is a standalone, battery-operated lock that runs on 4 AA batteries with up to two years of life, and an administrator programs it directly at the keypad. There is no network drop, no panel, and no software license to buy. Up to 500 unique 3-6 digit PIN codes are stored on the lock itself, issued and revoked at the keypad, with a battery status indicator and tri-color LEDs for maintenance. If you do want a networked lock, the Alarm Lock DL1300NW Trilogy Networx is the wireless option.
6) Is the Schlage CO-100 mortise lock Grade 1 and ADA compliant for a healthcare or school restroom?
Grade 1 and ADA compliant, yes. The mortise chassis meets or exceeds ANSI/BHMA A156.13, Series 1000, Grade 1, and the lock is certified to UL 294 for access control, UL 10C, UL Canada, and FCC Part 15. Duty level is heavy duty and it is a commercial-rated lock. That is the package a facility needs for restrooms, maternity and nursing rooms, and dressing rooms.
7) What is the closest mechanical privacy mortise lock to the Schlage CO-100 keypad privacy lock for a restroom door that does not need PIN codes?
The Cal-Royal NM8440 is a Grade 1 privacy mortise lockset with deadbolt, built for 1-3/4 inch doors - the same door thickness the CO-100 privacy mortise lock is built for. The CO-100 carries Grade 1 and runs on 4 AA batteries with a keypad managing up to 500 PIN codes, so the NM8440 covers a restroom or dressing room opening where credential management is not wanted and no battery maintenance is desired. The Hager 3840S is a second Grade 1 privacy mortise lock for 1-3/4 inch to 2 inch doors if the opening is thicker than 1-3/4 inches.
8) Which keypad mortise lock should I use on a door thicker or thinner than 1-3/4 inches, since the CO-100 is 1-3/4 only?
The Alarm Lock DL2700CR Trilogy T2 and the DL3500CR are Grade 1 electronic keypad mortise locks rated for 1-5/8 inch to 1-7/8 inch doors, so they cover openings outside the single 1-3/4 inch thickness the CO-100 electronic mortise lock is built to. Both are classroom function rather than privacy, so the swap changes how the outside lever behaves - the CO-100 privacy configuration keeps the inside lever free for egress at all times with an interior pushbutton that disables exterior electronic access. Confirm the function on the door schedule before substituting.
9) I need credentials other than a PIN on a mortise lock - what are the alternatives to the Schlage CO-100 keypad?
The CO-100 electronic mortise lock uses 3 to 6 digit PIN codes entered at the keypad as its credential, with up to 500 stored on the lock. If the facility issues cards or phones instead, the Dormakaba LX-I-M002 Saffire is an electronic RFID mortise lockset with BLE mobile access at BHMA Grade 2, and the TownSteel FME-2000 is a Grade 1 heavy duty classroom mortise lockset with RFID for 1-3/4 inch doors. The Dormakaba E-Plex E5086 is a Grade 1 pushbutton and card mortise lock if both a code and a card need to work on the same opening.
10) Can I use a wired or hardwired mortise lock instead of the battery-powered Schlage CO-100?
The CO-100 is a standalone battery-operated lock running on 4 AA batteries with up to 2 year life and no network connection or software required. If the opening has power run to it and access is to be controlled from a panel, the BEST 45HW is a wired electromechanical mortise lock with 12V/24V operation, and the Command Access ML190 is a heavy-duty motorized mortise lock with field selectable EL/EU operation on 24VDC in storeroom function. Both require power at the door, which the CO-100 does not.
11) If the opening is a classroom rather than a restroom, what replaces the Schlage CO-100 privacy mortise lock?
The CO-100 is offered in privacy function, which keeps the inside lever free for egress and uses an interior pushbutton to disable exterior electronic access - it is not a classroom function. For a classroom opening the Corbin Russwin ML2003 is a Grade 1 mortise classroom lockset for 1-3/4 inch doors, and the Cal-Royal NM8070 is a Grade 1 classroom mortise lockset with auxiliary deadlatch, also 1-3/4 inch. If the classroom needs electronic credentials, the TownSteel FME-4000 is an electronic intruder classroom mortise lockset with RFID at Grade 1 for 1-3/4 inch doors.
12) For a behavioral health or ligature-resistant restroom, what mortise lockset is used instead of a keypad lock like the CO-100?
The TownSteel MRX-L-01 is a Grade 1 heavy duty anti-ligature lever mortise lockset in stainless steel, passage function, for 1-3/4 inch doors, and the MRX-A-01 is the same passage function in a ligature resistant arch trim. The Marks USA 5PDN is a Grade 1 hospital passage mortise push/pull paddleset, ligature resistant and ADA compliant in satin stainless steel. The CO-100 is ADA compliant and Grade 1 on 1-3/4 inch doors as well, but it carries a projecting keypad housing and lever trim, so an anti-ligature room is the case for the TownSteel or Marks USA sets.
13) Can a Schlage CO-100 be used on an exterior door, a pool gate, or a breezeway?
Yes, outdoor use is within scope. The CO Series carries ANSI/BHMA A156.25 full outdoor certification on the 70 function, and the lock operates from -31 to 151 degrees F, which covers pool gates, breezeways, vestibules, and other exposed openings. For a weatherproof keypad alternative, the Alarm Lock DL2700CR Trilogy T2 is a Grade 1 weatherproof classroom-function mortise lock.
14) What finishes and lever styles does the Schlage CO-100 come in, and can I match the other doors in my building?
Eight finishes are offered: 605 bright brass, 606 satin brass, 612 satin bronze, 619 satin nickel, 625 bright chrome, 626 satin chrome, 626AM satin chrome antimicrobial, and 643E aged bronze. Six lever styles cover it: Athens, Latitude, Longitude, Rhodes, Sparta, and Tubular. Those are standard Schlage lever designs, so a building already standardized on Rhodes or Sparta levers in 626 can add electronic privacy openings without the hardware looking like an add-on. The 626AM antimicrobial finish is the one to pick for healthcare restrooms.
15) Should I use an electronic keypad privacy lock or a mechanical privacy mortise lock on a restroom?
Pick on who needs to get in and how often keys move. A mechanical privacy mortise lock like the Cal-Royal NM8440 (Grade 1, privacy with deadbolt, 1-3/4 inch door) or the Hager 3840S (Grade 1 privacy, 2-3/4 inch backset) is simpler, has no batteries, and is right when the door just needs occupancy privacy and an emergency key. The CO-100 earns its place when you want controlled exterior access on that same opening: up to 500 PIN codes managed at the keypad, revoked instantly without rekeying, plus the privacy pushbutton inside. That cuts key distribution across a facility, which is the usual reason a property manager or MRO buyer moves off mechanical.
16) What is the difference between the Schlage CO-100 and the electronic mortise locks from Dormakaba or TownSteel?
Credential type is the main split. The CO-100 is keypad-only, up to 500 PIN codes, standalone, Grade 1 mortise on a 1-3/4 inch door. The Dormakaba E-Plex 5086 is a pushbutton plus card lock, Grade 1. The TownSteel FME-2000 is a Grade 1 heavy duty RFID mortise lockset in classroom function on 1-3/4 inch doors, and the FME-4000 adds intruder classroom function with RFID. The Accentra nexTouch NTM623-NR uses a capacitive touchscreen keypad with cylinder override. If your facility issues cards or fobs, the RFID and card options are the right family; if you want nothing to hand out and nothing to lose, the PIN-only CO-100 is the simpler program.
17) Can the Schlage CO Series be used on an exit device instead of a mortise lock?
Yes. The CO Series comes in cylindrical, mortise, and exit trim chassis, and the exit trim is compatible with most major brands of exit devices. This particular configuration is the mortise chassis, so if your opening has a panic bar you want the exit trim version of the CO rather than this one. Exit trim on the CO Series meets ANSI/BHMA A156.3.
18) What is the difference between the Schlage CO-100 keypad mortise lock and a Trilogy DL4500 mortise deadbolt with a privacy keypad?
The Alarm Lock DL4500 is a Grade 1 electronic mortise deadbolt holding 2,000 user codes with a privacy keypad, fitting 1-5/8 inch to 1-7/8 inch doors. The Schlage CO-100 is an electronic mortise lock in privacy function that manages up to 500 PIN codes of 3 to 6 digits at the keypad, on a 1-3/4 inch door, with mechanical key override standard. The DL4500 is a deadbolt function, so it secures the door without a latching lever set; the CO-100 privacy configuration works the latch through the lever with the inside lever always free for egress. Which one fits depends on whether the opening needs a deadbolt or a latching lever.
19) Is the BEST 45HZ EZ keypad mortise lock a substitute for the Schlage CO-100?
The BEST 45HZ EZ Series is an electronic keypad mortise lock with key override function, which puts it in the same standalone keypad category as the Schlage CO-100 electronic mortise lock, and the CO-100 also ships with mechanical key override standard. The CO-100 is offered in the privacy configuration where the inside lever is always free for egress and an interior pushbutton disables exterior electronic access; verify the 45HZ function against the opening before treating the two as interchangeable.
20) What keypad mortise lock works for a networked system, since the Schlage CO-100 programs only at the keypad?
On the CO-100 an administrator adds and deletes PIN codes directly at the keypad with no network connection or software; user rights are stored on the lock itself. The Alarm Lock DL1300NW Trilogy Networx is a wireless electronic mortise lock with keypad built for Adams Rite deadlatches, so it suits an installation where codes are pushed from a central system rather than entered door by door. Note the DL1300NW is for Adams Rite deadlatch openings, which is a different door prep than the CO-100 mortise body.
21) What looks like a substitute for the Schlage CO-100 privacy mortise lock but is not?
Several mortise items sit next to the CO-100 without doing its job. The Sargent 130KB and 130W are mortise thumbturns, trim pieces rather than a lockset. The Emtek 3102 Memphis and 3104 Hamilton are dummy mortise entrance locksets, which do not latch. The Schlage L0170 is a half dummy trim in Grade 1 non-keyed form. The Falcon MESC600DT is dummy escutcheon lever trim for M9900 Series exit devices. The CO-100 is a complete battery-operated electronic mortise lock with keypad credential and Grade 1 rating, so none of these replace it on a working privacy opening.
22) What Schlage mortise lock do I use for a door that needs no lock function at all, instead of the CO-100 keypad lock?
The Schlage PM010 is a Grade 1 passage latch mortise lock, non-keyed, for 1-3/4 inch doors - the same door thickness the CO-100 electronic mortise lock is built for. It suits a corridor or closet opening that only needs the latch operated by the lever. The CO-100 in privacy configuration adds a keypad managing up to 500 PIN codes and an interior pushbutton that disables exterior electronic access, so the PM010 is the choice when neither credential control nor a privacy pushbutton is called for.
23) What mortise keypad lock covers a wide stile aluminum door, where the Schlage CO-100 does not?
The Dormakaba E-Plex 2066 is an electronic pushbutton keyless mortise lock built for wide stile doors, and the PowerPlex P2066 is a mortise lock in the same 2000 family. The CO-100 electronic mortise lock is specified for 1-3/4 inch doors with a 1-3/16 inch lip, 1-1/4 inch by 4-7/8 inch square corner box strike, which is the standard hollow metal and wood door prep rather than an aluminum stile prep.
24) Is there a lighter duty electronic mortise latch than the Schlage CO-100 for an interior office door?
The Codelocks CL2255 is an electronic tubular mortise latch listed at medium duty in brushed steel. The CO-100 electronic mortise lock is a heavy duty Grade 1 commercial lock with a keypad managing up to 500 PIN codes and mechanical key override standard. For a low-traffic interior door where a code on the outside is all that is wanted, the CL2255 is the lighter set; for a high-traffic commercial opening the CO-100 duty rating is the one to match.
25) Which mortise lock replaces the Schlage CO-100 on a storeroom or supply closet that should stay key-only?
The Accentra 8805FL is a Grade 1 storeroom mortise lock with the Arcadia lever, and the Cal-Royal NM8080 is a Grade 1 storeroom mortise lockset with an interchangeable core option for 1-3/4 inch doors. The CO-100 is listed for maintenance areas and supply closets in its privacy configuration with a keypad and up to 500 PIN codes; where the facility prefers to keep those rooms on the existing key system with no electronics, the 8805FL or NM8080 covers the same room type. The NM8080 interchangeable core option matters if the site is standardized on IC cores.
26) How does the Accentra nexTouch NTM623-NR compare to the Schlage CO-100 keypad mortise lock?
The Accentra NTM623-NR is a Grade 1 nexTouch Generation 3 mortise lock with a capacitive touchscreen keypad, no deadbolt, with cylinder override. The Schlage CO-100 is a Grade 1 electronic mortise lock with a physical keypad, mechanical key override standard, and up to 500 PIN codes of 3 to 6 digits programmed at the lock. Both give a code-entry surface and a key override path; the NTM623-NR uses a capacitive touchscreen where the CO-100 uses a keypad with tri-color LED indicators and runs on 4 AA batteries.
27) Which mortise lock matches the Schlage CO-100 on field reversible handing if I am buying mechanical?
The BEST 45H Series heavy duty mortise lock body in public entrance function is field reversible, and the Falcon MA101 is a Grade 1 heavy duty mortise passage lock with field reversible operation and a fire rating. The CO-100 electronic mortise lock is also field reversible and heavy duty, so a crew stocking one hand for a run of doors keeps that working method with either peer. The functions differ - public entrance and passage against the CO-100 privacy configuration - so match the function to the door schedule.
28) What PIN code programming options does the Schlage CO-100 support for a shared restroom or a visitor pass-through?
Four programming modes cover the usual cases: normal, toggle, pass-through, and freeze. Toggle is what you use to leave a door unlocked during business hours and relock it after; pass-through suits visitor and common-area doors. Codes are 3 to 6 digits, up to 500 of them, with user rights held on the lock and no software involved. An administrator adds or deletes users at the keypad.
29) I need a Grade 1 Schlage mortise lock but not an electronic one. What else is there?
Schlage's mechanical mortise options in the same Grade 1 heavy duty class include the PM010 passage latch mortise lock for 1-3/4 inch doors, the L Series L0170 half dummy trim, and the L9092EU electric lock/unlock outside lever mortise lock with request-to-exit on 12/24VDC if you want a wired lock tied to an access control panel rather than a standalone battery one. All three are 1-3/4 inch door products, same as the CO-100, so the door prep thinking carries across.
30) Do the Baldwin 6301 and 6310 mortise lock bodies work as a substitute for the Schlage CO-100?
They are a different opening. The Baldwin 6301 is an entry/apartment mortise lock body on a 2-1/2 inch backset for doors 1-3/4 inch and over, and the 6310 is an entry/storeroom body on the same 2-1/2 inch backset for doors 1-3/8 inch and over. The CO-100 electronic mortise lock is built for 1-3/4 inch doors in privacy function with a keypad credential. The Baldwin bodies are mechanical entry and storeroom functions on a 2-1/2 inch backset, so both the function and the door prep differ from the CO-100.
31) What is the alternative to a Schlage CO-100 mortise lock when the door needs only a mortise deadbolt?
The Sargent 4874 is a double cylinder mortise deadbolt on a 2-3/4 inch backset, and the Kaba Ilco 185 Series is a mortise lock in deadbolt function supplied with no handing. The CO-100 electronic mortise lock is field reversible for handing and combines the latching lever set with a keypad credential; where the opening needs a deadbolt alone with no electronics, the 4874 or the 185 Series is the simpler part.
How fast can I get the Schlage Electronics CO-100-MS-40-KP-TLR-626-P delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit, reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Schlage Electronics CO-100-MS-40-KP-TLR-626-P come with a warranty?
Absolutely. The Schlage Electronics CO-100-MS-40-KP-TLR-626-P is backed by a manufacturer’s warranty. For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Schlage Electronics CO-100-MS-40-KP-TLR-626-P?
You can call, text, or email our expert support team for fast answers. We’re here to help with product selection, installation tips, and troubleshooting. Contact Us
Why buy the Schlage Electronics CO-100-MS-40-KP-TLR-626-P from ZenSupply?
ZenSupply makes it easy to get the commercial door hardware you need—fast shipping, expert support, and rewards on every order. Our team is always ready to help you choose the right product for your project.

Product Reviews

  • 5
    Modern Security Made Simple: Schlage CO-100 Electronic Mortise Lock

    Posted by Joe on Mar 24th 2024

    This electronic mortise lock is a game-changer! The keypad reader offers keyless entry convenience, perfect for busy households. However, programming can be a bit complex initially, requiring patience. Overall, a reliable and high-tech solution for upgrading home security.

!
