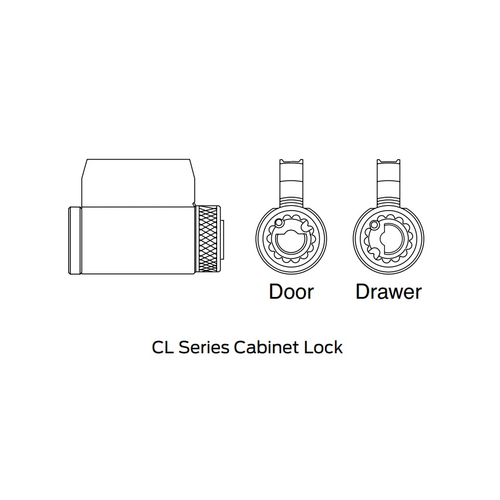

Schlage Commercial 20-174 Cabinet Lock (Drawer), 6-pin, CL10-360 Cam With 2 Keys

Schlage Commercial 20-174 Cabinet Lock (Drawer), 6-pin, CL10-360 Cam With 2 Keys

(No reviews yet) Write a Review

Model: 20-174 C 626
$97.00
$84.31
Selected Finish is
Selected Keying is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$97.00
$84.31
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schlage Modular Cylider Overview

One cylinder is the foundation for every lock you need, add more flexibility with less inventory dollars, and make your job easier, faster and more profitable.
Now you can service almost any lock on any door with just one cylinder. Simply by adding or changing the front and back housing you can convert a modular cylinder into multiple cylinder types, including mortise, rim and key-in-lever. The revolutionary Schlage® Modular cylinder will dramatically reduce your inventory because you will be able to make almost any cylinder type from a series of modular components and parts.
Now, one cylinder changes everything.

Our modular cylinder is the foundation for every lock you neeS

  • One cylinder converts to three differnt cylinder types by changing the tailpiece, cam or rear housing
  • Accomadates thicker doors with six available lengths of rear housing sizes
  • Front housing available in all finishes to match the locks
  • Supports interchangeability between Everest 29™, Primus®XP, and Classic key systems
  • Fewer parts required to fill orders means less inventory and lower costs
  • Never be caught on the job without the right part

One cylinder really does fit all

Thanks to the extraordinary versatility of the Schlage® modular cylinder you’ll never be caught on the job again without the right part. You’ll be able to assemble almost any Schlage cylinder on the spot, while providing your customers the same security, toughness and quality that has made Schlage one of the best names in the business.

  • Adaptable to mortise, rim and key-in-lever or key-in-knob applications
  • Available in all Schlage keyways, including Everest 29TM and Primus® XP


DOWNLOADS

Schlage Key Systems, Cylinders and Keys Catalog

Manufacturer Resources

Product Specs

Features:
Accept any Schlage Keyway, Fits all Schlage Locksets and Deadbolts
Warranty:
3 Year
Product Group:
Mechanical Locks
Subcategory:
Parts and Accessories
Product Subgroup:
Parts and Accessories
Product Type:
Cabinet Locks
Keys Included:
2
Commercial/Residential:
Commercial
Cylinder and Keyways:
6-Pin
Compatibility:
Schlage CL Cabinet Locks
Handle Type:
Knob
Parts and Accessories Type:
Installation Accessories
Product Attribute:
Parts and Accessories
Product Model:
20-174
Product Function:
Cylinders
Door Hand Direction:
Non-Handed
Product Substrate:
Brass, Stainless Steel
Product Category:
Mechanical Locks
Department:
Door Hardware

Schlage 20-174 C 626 – Frequently Asked Questions

1) Is the Schlage 20-174 the whole cabinet lock or just the keyed cylinder?
Just the cylinder. Model 20-174 is a 6-pin keyed cylinder built for Schlage CL cabinet locks, and two keys come with it. The CL cabinet lock body that mounts in the drawer or door is a separate part, so order this when you are replacing or rekeying the cylinder in a lock you already have.
2) Do I have to specify a hand for the Schlage 20-174 cabinet lock cylinder on drawers versus hinged cabinet doors?
No hand to specify. The 20-174 is non-handed, so one part number covers a whole run of casework whether the lock is in a drawer front or a hinged door. What has to match is the lock body underneath: this cylinder is made for Schlage CL cabinet locks.
3) Does the Schlage 20-174 come keyed, or can I pin it into my building's existing Schlage system?
It ships 0 bitted in the C keyway, meaning every pin chamber sits at the zero cut with no working combination set. That is the version a locksmith wants: pin the six chambers to your existing change key or master and the cabinet comes onto the house system instead of carrying its own orphan key. Two keys are supplied with it, and the keying work happens before it goes into the lock body.
4) Is the C keyway on the Schlage 20-174 cabinet cylinder the same as Everest 29 or Primus XP?
Different systems. The 20-174 is supplied in the C keyway, which is Schlage's Classic section, not Everest 29 and not Primus XP. Schlage's modular cylinder line supports interchangeability between Everest 29, Primus XP and Classic, so a facility can standardize its cabinets with the rest of its doors, but you have to order the cylinder in the keyway your system actually runs. If your building is on a restricted Everest 29 or Primus XP system, specify that keyway rather than the C.
5) Can I put a Schlage 20-174 cylinder into a cabinet lock from another manufacturer?
No. The 20-174 is made for Schlage CL cabinet locks and accepts Schlage keyways. Another brand's cabinet lock uses its own cylinder body and cam format, so this will not drop into it. Where it earns its place is a Schlage CL opening you are rekeying, or a run of casework you are pulling onto one key system.
6) Is the Schlage 20-174 cabinet cylinder heavy enough duty for a nurse station, school lab, or hotel casework?
It is a commercial part, not a residential one, with a brass and stainless steel build. The six-pin format also matters at facility scale: six chambers give far more usable differs than a five-pin cylinder, so you can key dozens of cabinets into one master system without combinations repeating across departments.
7) What finish does the Schlage 20-174 cabinet lock cylinder come in, and will it match satin chrome hardware on the rest of the job?
626 satin chrome. That is the standard commercial finish designation for satin chrome, so the exposed cylinder face reads the same as 626 lever trim, door cylinders and pulls already specified elsewhere in the building. Underneath the finish the cylinder is brass and stainless steel.
