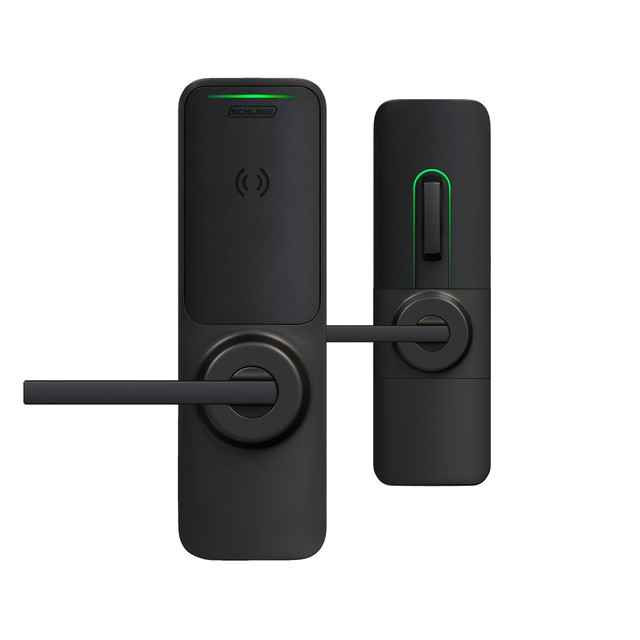

Schlage XE360M Grade 1 Wireless Cylindrical Lock, Bluetooth and NFC Mobile Credential, Privacy/Apartment Function

Schlage XE360M Wireless Cylindrical Lock — Grade 1 Multifamily Access Control

The Schlage XE360™ Series is the next-generation wireless lock engineered specifically for multifamily properties. Built on a heavy-duty Grade 1 mortise chassis in a cylindrical form factor, the XE360M delivers Bluetooth® Low Energy and NFC mobile credential support, open-architecture software integration, and a field-upgradeable FleX Module™ — all in a modern, sleek design that suites with other Schlage families across nearly any opening.

Key Features & Benefits

• Grade 1 mortise chassis in cylindrical (bored) form factor — exceptional durability for high-traffic multifamily applications
• Multi-technology reader: supports Schlage MIFARE® smart (13.56 MHz), Bluetooth® LE (2.4 GHz), and NFC mobile credentials
• Advanced Encryption Standard (AES) 128- and 256-bit; Bluetooth mobile credential uses AES 256-bit CBC & ECDSA 256
• Wireless configuration via connected smartphone or tablet — no laptop or special hardware required
• No-Tour and offline access control system compatible
• FleX Module™ allows future upgrades to communication type, memory, and encryption without replacing the lock
• Open architecture — integrates with Allegion software and popular PACS/Proptech platforms via the PACS Alliance program
• Works seamlessly with Schlage Control™ and other Schlage wireless locks
• Uniquely concealed key override standard on all units
• Field-reversible handing
• Privacy/Apartment function

Chassis Options

• Mortise with interior LED indicator (I)
• Mortise with interior push button and LED indicator (B)
• Mortise deadbolt with interior thumbturn and LED indicator (D)

Credential Technology Support

• Smart (13.56 MHz): Schlage MIFARE Classic, MIFARE DESFire EV1, EV2, EV3
• Bluetooth® mobile (LE, 2.4 GHz)
• NFC mobile

Connectivity & Status Signals

• Mobile (Bluetooth® at the lock)
• No-Tour via smart or mobile credentials
• Status signals: battery level, door position, lock/unlock, request-to-exit

Hardware Specifications

• Door thickness: 1-3/4"
• Backset: 2-3/4"
• Latchbolt: 3/4"
• Deadbolt throw: 1"
• Armored front: 1-1/4" x 8" x 7/32"
• Strike: Standard 1-3/16" curved lip; ANSI strike with 1-1/8" lip
• Minimum stile width: 4-1/2"
• Materials: All-metal chassis and escutcheon; exterior polycarbonate elements; zinc levers

Cylinder & Keys

• Standard: Schlage Classic C Keyway, conventional 6-pin cylinder with two keys
• Optional: Schlage S123 Everest 29 S Keyway, conventional 5-pin cylinder with two keys

Electrical & Environmental

• Power: 4 AA batteries; up to 2-year battery life (based on default settings, 40 actuations/day)
• User capacity: Up to 2,000 (varies by access control software)
• Audit capacity: Up to 2,000 (varies by access control software)
• Operating temperature — Exterior: -31°F to 151°F (-35°C to 66°C)
• Operating temperature — Interior: 32°F to 120°F (0°C to 49°C)
• Operating humidity: 0–100% non-condensing
• Bluetooth Low Energy version 5

¹ Use of mobile credential is dependent on availability of compatible mobile credential. ² No-Tour applications utilizing Schlage MIFARE smart credentials require a minimum of 1K byte memory. ³ Consult your access control software provider for specific scope of support. ⁴ Maximum storage capacity of lock; can vary by access control software. ⁵ Assuming default settings, 40 actuations per day.
